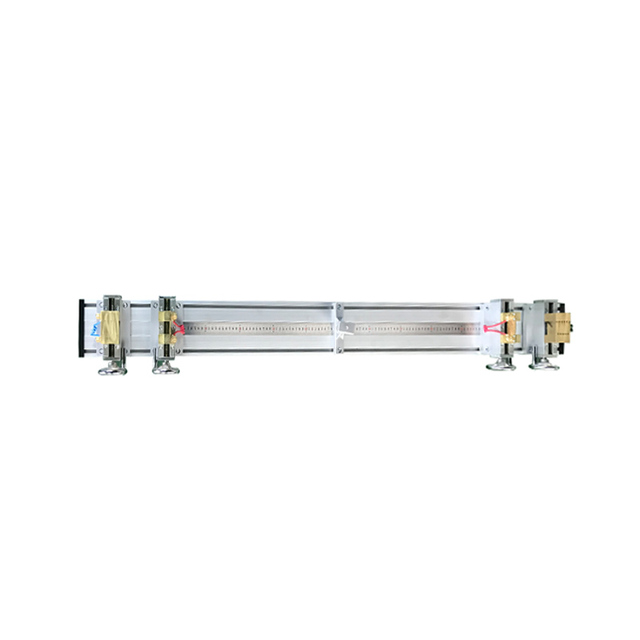

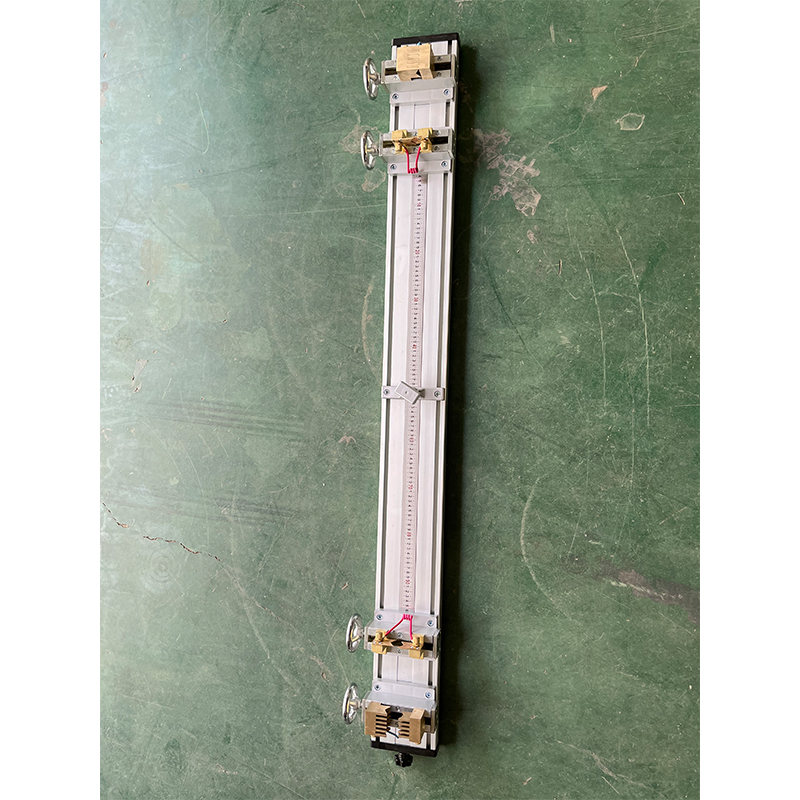

DQ-630/1200/2500 Conductor Resistance Clamp

Conductor Resistance Fixture is suitable for all kinds of conductor resistance measurement.It is used with QJ36,QJ44,DJ57 and other resistance measuring instrument.Meets IEC60468 standard.

Envieu-nos un correu electrònic Download as PDF

Detall del producte

Etiquetes de producte

Descripció del producte

Conductor Resistance Fixture is suitable for all kinds of conductor resistance measurement. It is used with QJ36, QJ44, DJ57, and other resistance-measuring instruments. Meets IEC60468 standard.

DQ-630 Technical Parameter

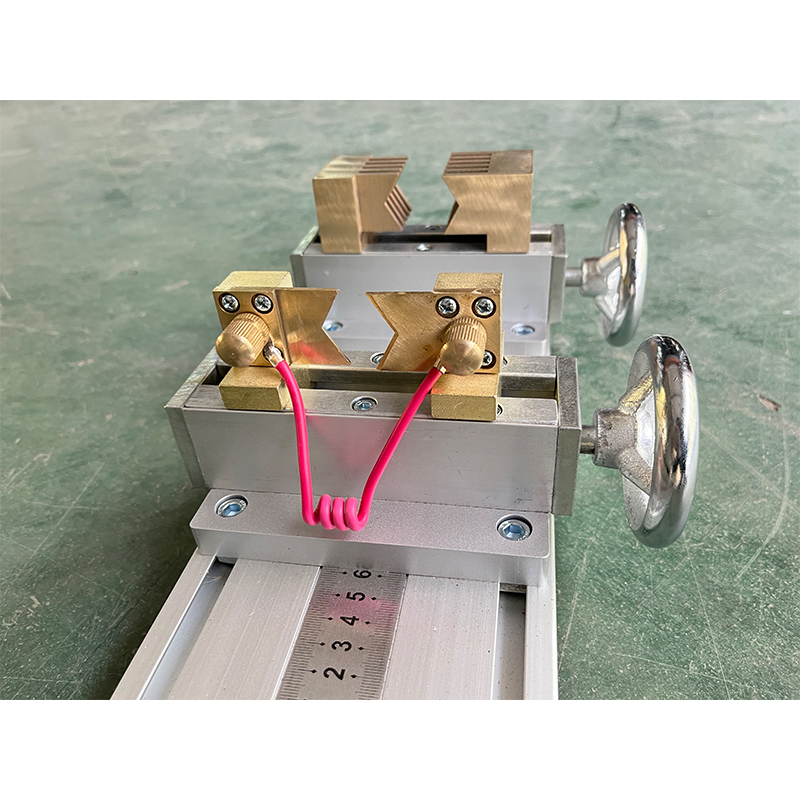

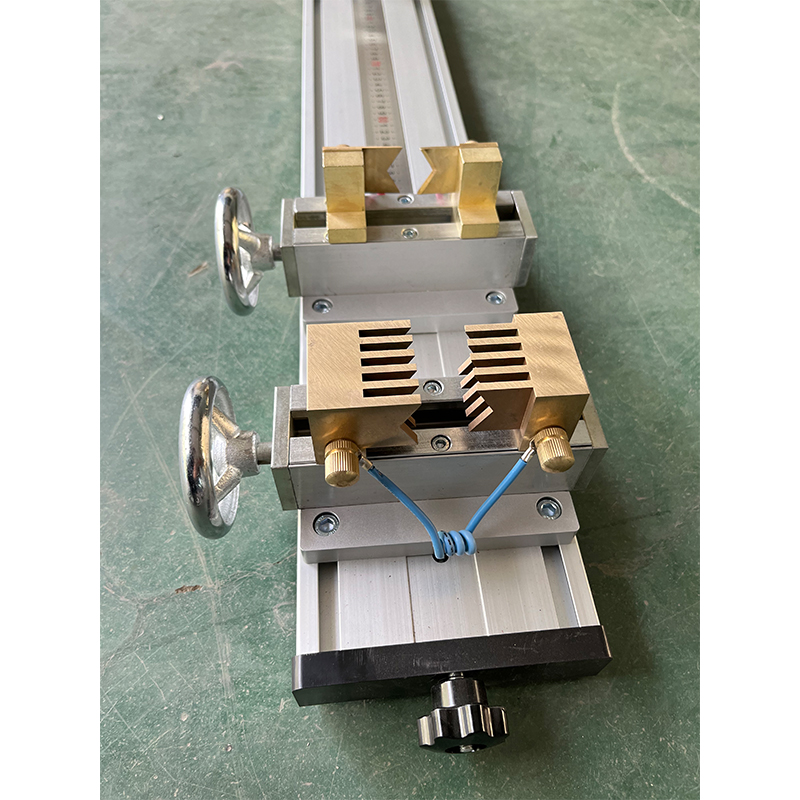

1. Current terminal shape: right angle type

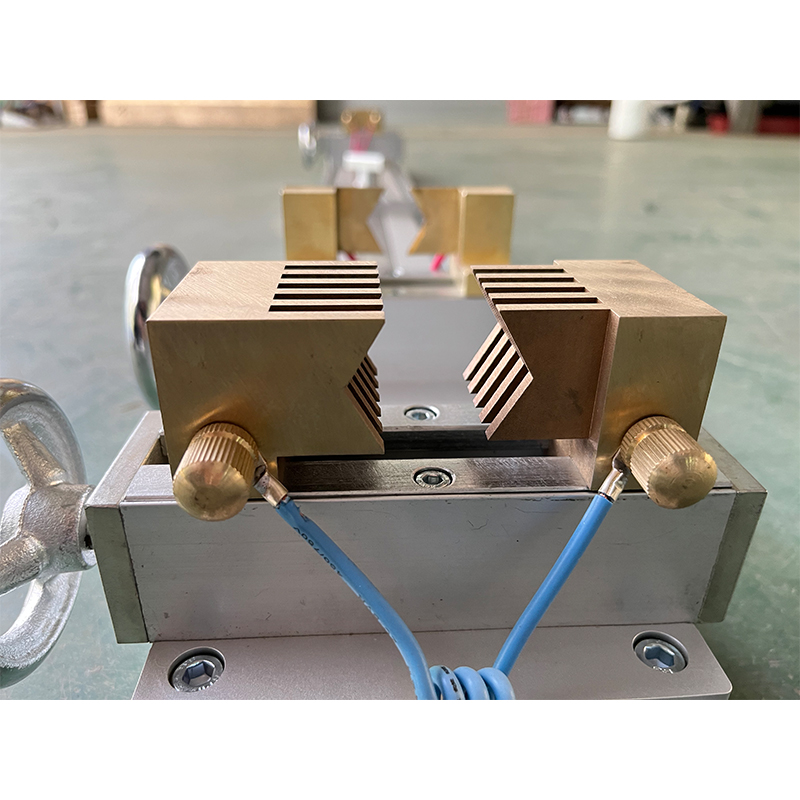

2. Potential terminal shape: right angle knife and fork shape
3. Aluminum alloy bottom plate, one end is tensioned
4. Current terminal clamping length: 45mm
5. Distance between current and potential terminals: 75 ~ 135mm
6. Measuring wire length: 1000mm
7. Max. sample cross-section area: 630mm²
8. Appearance size(mm): 1650(L) x 150(W) x 130(H)

DQ-1200 Technical Parameter

1. Current terminal shape: right angle type
2. Voltage terminal shape: right angle knife and fork shape
3. Aluminum alloy bottom plate, one end is tensioned
4. Distance between current and potential terminals: 75 ~ 200mm
5. Clamping height: 40mm
6. Opening width: 40mm
7. Current terminal clamping length: 46mm
8. Measuring wire length: 1000mm
9. Max. sample cross-section area: 1200mm²
10. Appearance size(mm): 1700(L) x 180(W) x 150(H)

DQ-2500 Technical Parameter

Current terminal shape: right angle type
2. Voltage terminal shape: right angle knife and fork shape
3. Aluminum alloy bottom plate, one end is tensioned.
4. Distance between current and potential terminals: 95 ~ 300mm
5. Clamping height: 60mm
6. Opening width: 60mm
7. Current terminal clamping length: 46mm
8. Measuring wire length: 1000mm
9. Max.sample cross-section area: 2500mm²
10. Appearance size(mm): 1750(L) x 310(W) x 180(H)
