25JVS Digital Electronic Profile Projector

Digital measuring projector apply for standard cable insulation and sheath materials commonly test method requirements. Is a kind of optical and electrical integration of precision and efficient optical measuring instruments, suitable for wire and cable, instrumentation, rubber and other industries.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Specification

1. LCD display: 15 inches (with cross line)
2. Worktable size (mm): 160 * 160mm
X coordinate travel (mm): 0 ～ 50
Y Coordinate travel (mm): 0 ～ 50
Digital display measurement accuracy: 0.005mm
Glass table size: ¢ 92mm
3. Objective table’s rotation range: 0-360°
Magnification: continuous zoom adjustment range 8-50X
4. Measurement accuracy: 0.005mm
5. Illumination light source: LED cold light source,light up and down,long using life
6. Overall dimensions of the instrument (mm): 407(L) x 278(W) x 686(H)
7. Power supply: 220V 50HZ

Measurement accuracy

Instrument indication error ≤5 μm

Instrument indication error: including measurement error and instrument system error.

Note: Test place temperature change (20 ° ± 3 °) ℃

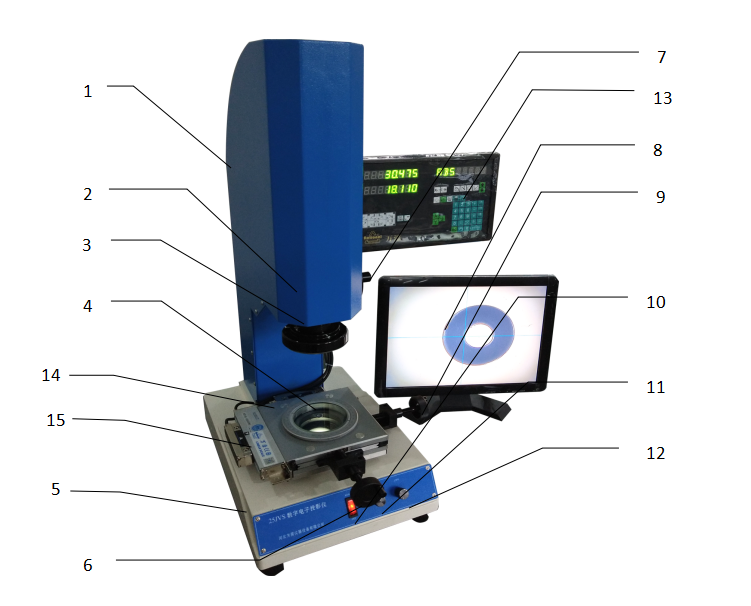

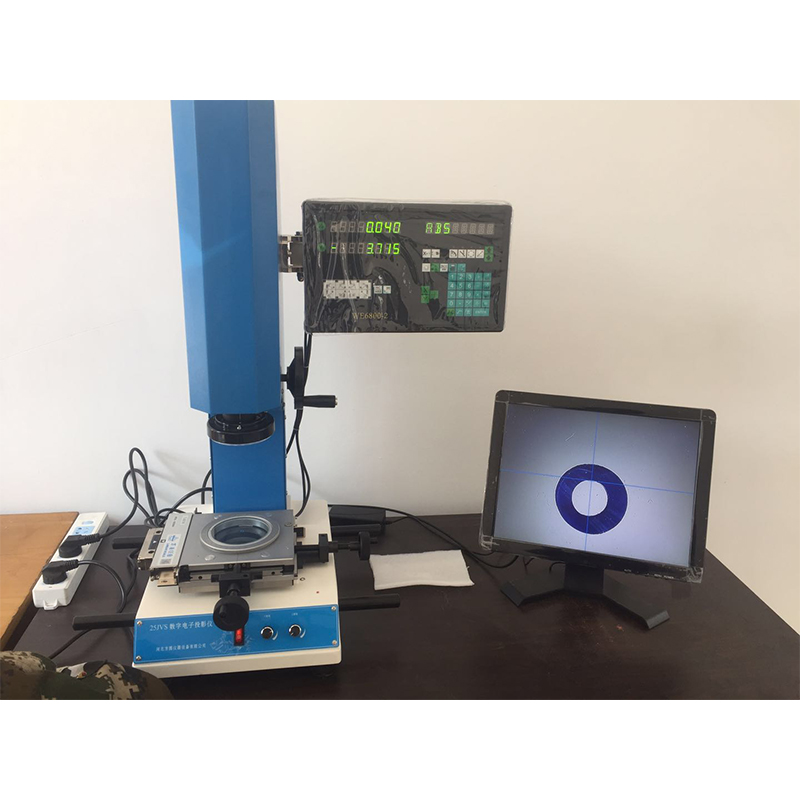

Instrument structure and working principle

1.column 9. X-axis handle
2. the lens lift 10. power switch
3. lens 11. bottom lighting adjusting knob
4. work table 12. top lighting adjusting knob

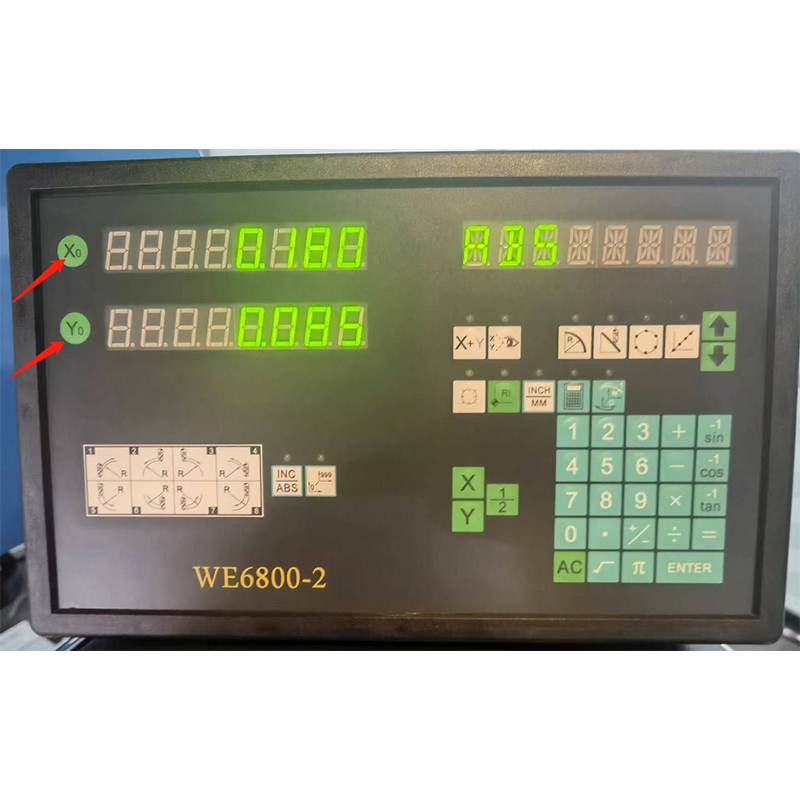

5. base 13.WE6800digital display meter
6. Y-axis handle 14.X axis raster ruler
7. Adjust focus 15.Y axis raster ruler
8. monitor

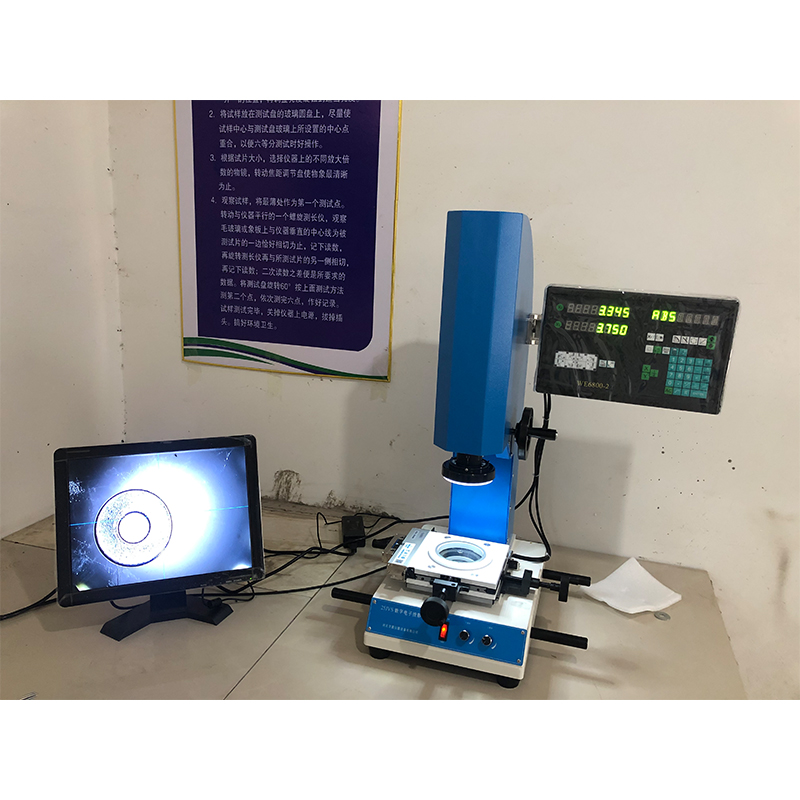

Instrument working principle

25JVS Digital Electronic Profile Projector works as follows: test work-piece placed on the table, in the transmission of light, the image of work-piece is taken up and transmitted to the camera screen, this time can used the screen cross-line with the coordinates of the table collection, measure work-piece for the point, line and surface.
