C-1200/2500 Stranded Conductor Multiplier Clamp Force Resistance Fixture

照片1
  • 照片1
  • 26997919cf5fd7afa324c4616cbdb38
  • c356b623b37d2de834d8556bc39eb93
  • 照片2
  • 照片3
  • bfcd50ac41adfa6a2401dbf33cacb72

With the resistance measuring instrument to accurately measure the real resistance value of aluminum and aluminum alloy stranded conductor.

Due to the surface oxidation of aluminum and aluminum alloy conductors, conventional fixtures cannot achieve dense compression of the conductors.



Download as PDF
Product Detail
Product Tags

Product Description

With the resistance measuring instrument to accurately measure the real resistance value of aluminum and aluminum alloy stranded conductor.

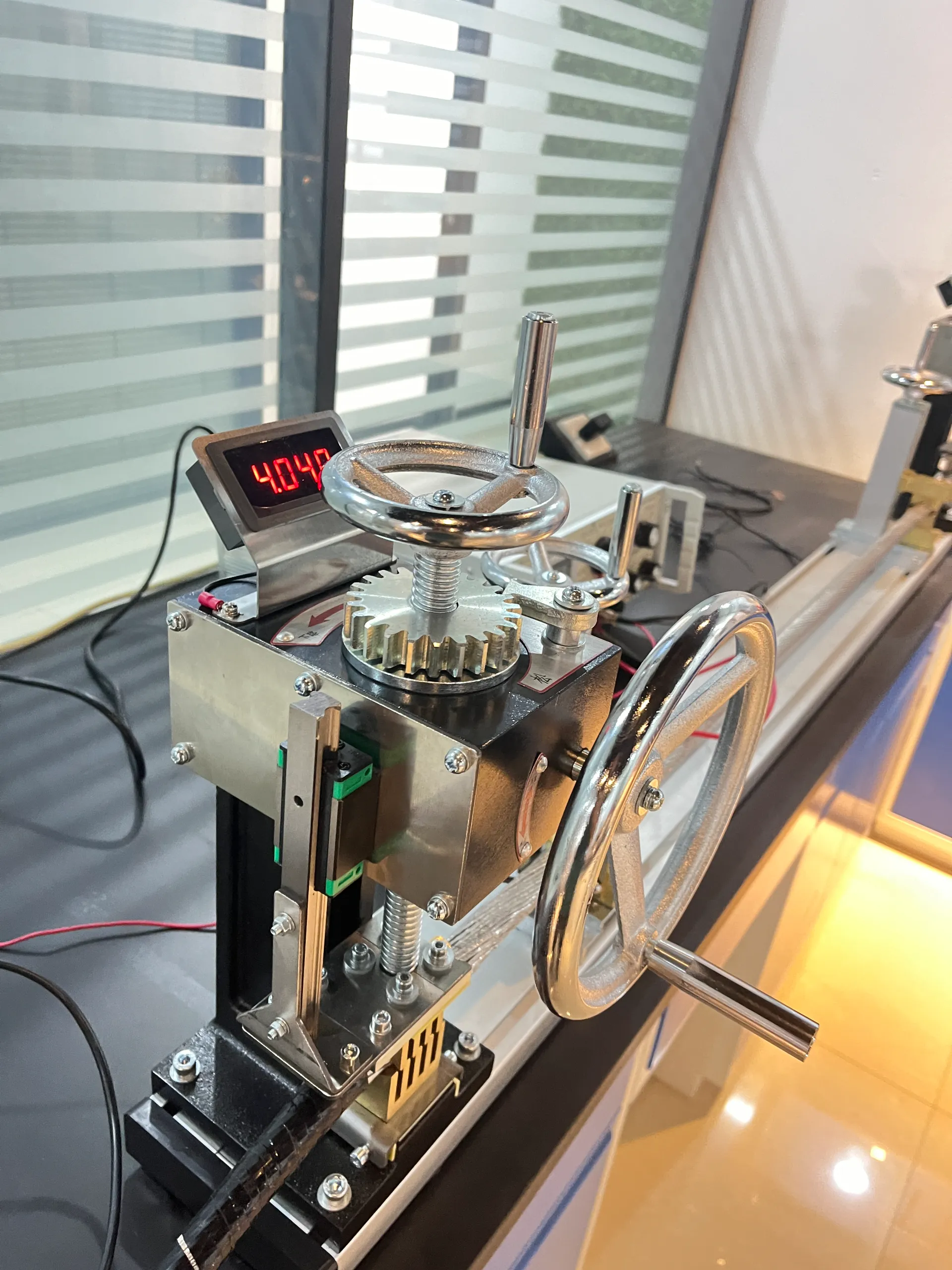

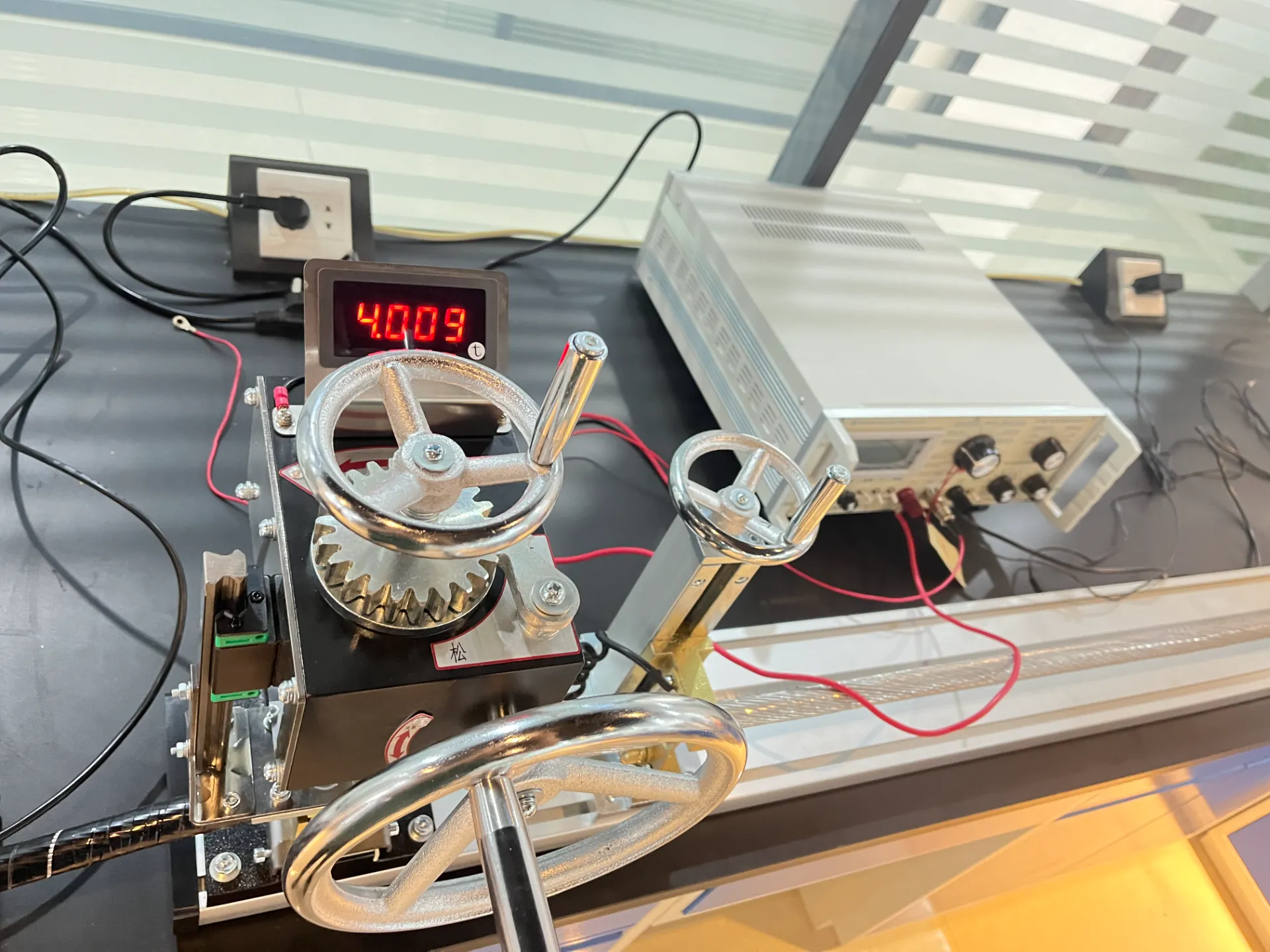

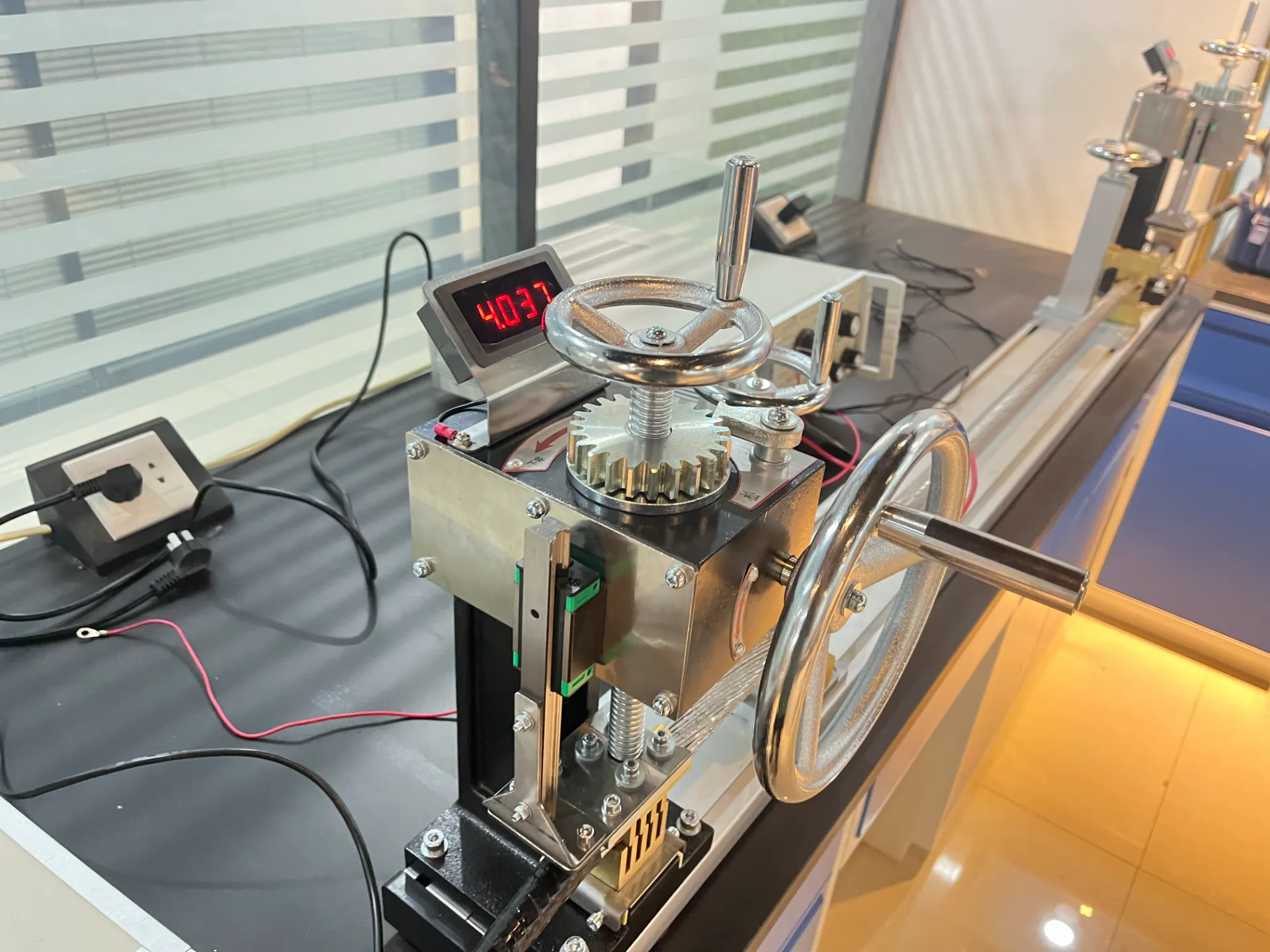

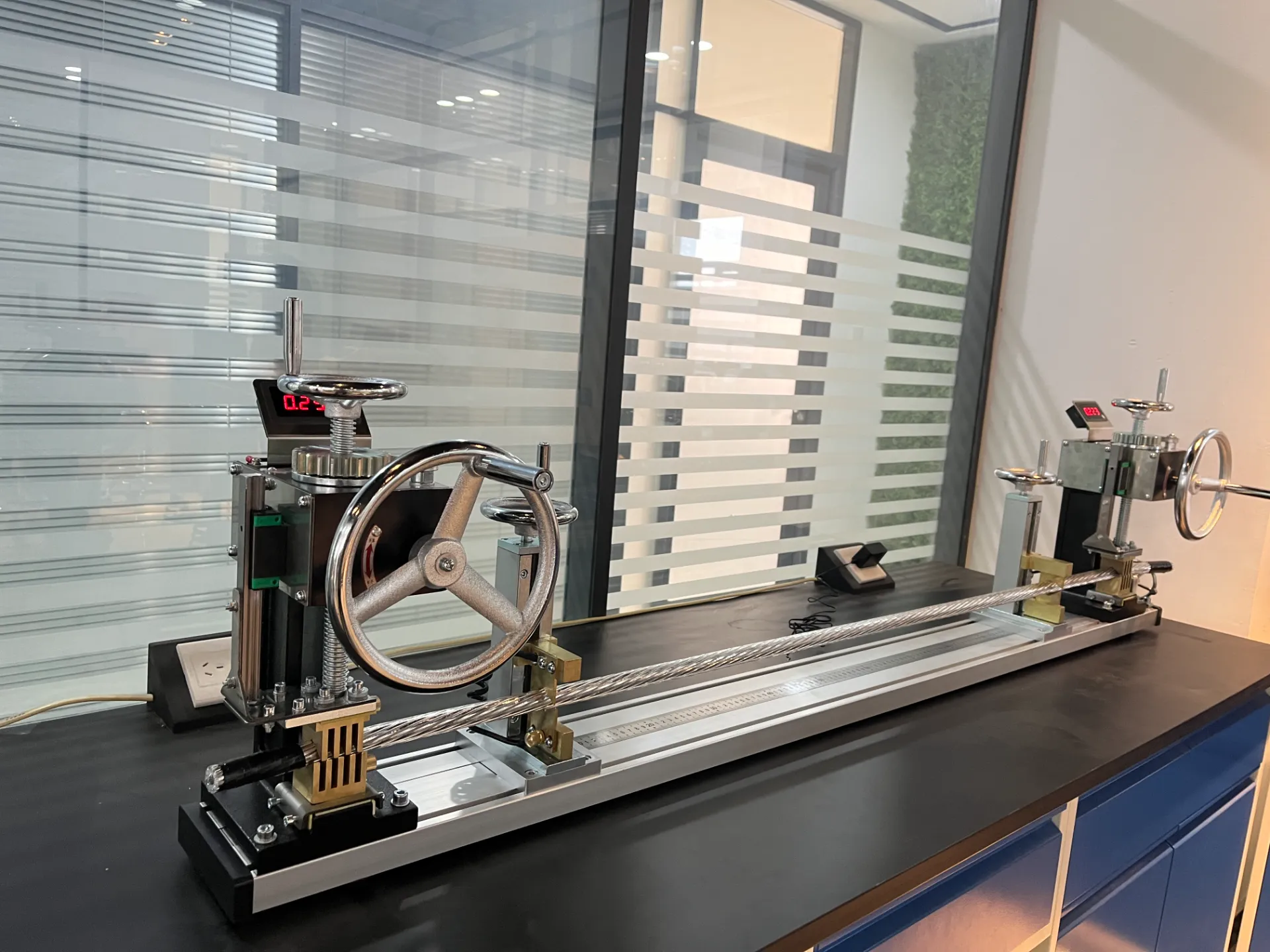

Due to the surface oxidation of aluminum and aluminum alloy conductors, conventional fixtures cannot achieve dense compression of the conductors. This C-type fixture, with a reasonable structural design, can clamp the current terminal conductor tightly by clamping both ends, so that the surface of the conductor to be measured can pass through the uniform current, so as to obtain an accurate resistance value through the measurement of the resistance measuring instrument.



After multiple upgrades and improvements, this product has a compact structure and greatly improved operability, making it very easy to operate. Applicable to GB/T3048 "electrical properties of wires and cables test methods" in a variety of conductor resistance and resistivity measurement, and PC36, QJ36, QJ44, QJ57 and other resistance measuring instrument supporting the use. Especially suitable for cable companies and quality inspection departments to measure the resistance and resistivity of various conductors. Especially suitable for measuring the resistance of aluminum and aluminum alloy stranded conductors.

Technical Parameter

  1. Current terminal shape: right angle tiger mouth type
    2. Current end fast clamping method: screw.
    3. Clamping method of current end: double force
    4. Potential terminal shape: right angle knife and fork
    5. One-end handwheel tensioning structure
    6. Clamping diameter: Φ1-40mm that is 1200mm² below the stranded conductor.
    7. Measurement of wire resistance length: 1000mm
    8. Maximum clamping force: ≥ 4 tons
    9. Number of test pieces at a time: 1 piece
    10. Weight: 40kg

  2. Company Profile

  3. Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.
