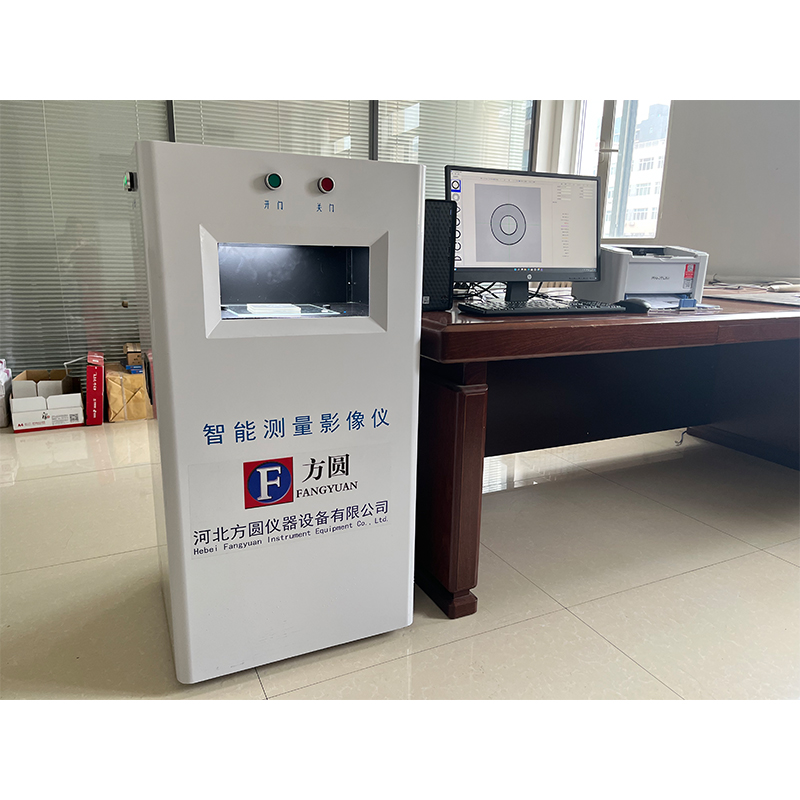

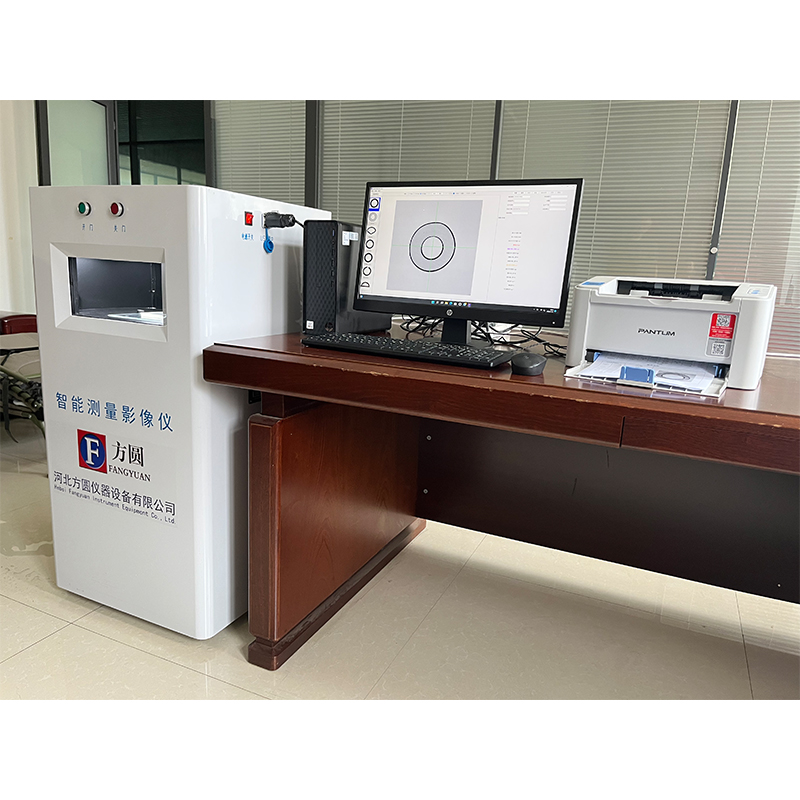

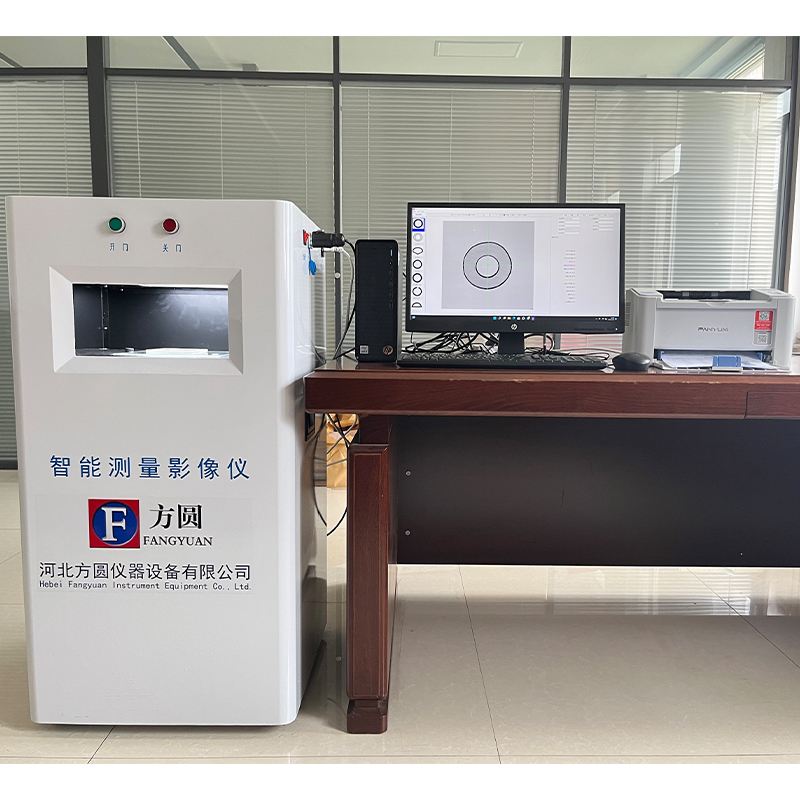

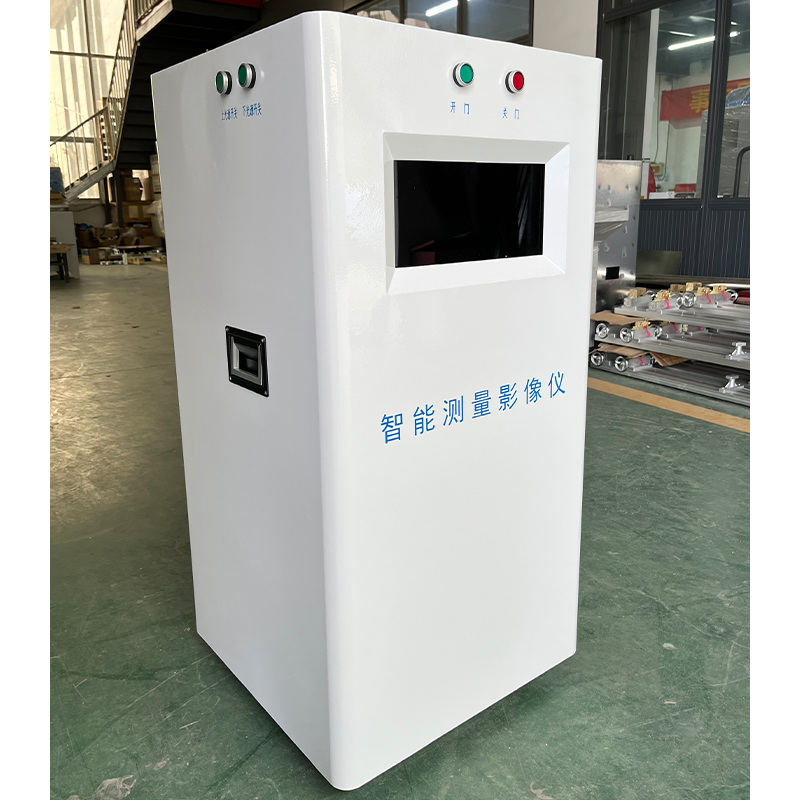

FYTY-60 Intelligent Measuring Imager

FYTY-60 intelligent measuring imager is an independently developed measuring system that uses visual inspection methods to measure the structure data of wires and cables. The product is designed and manufactured in accordance with the measurement requirements of the thickness and dimensions of the IEC 60811-1-1(2001)/GB/T2951.11-2008standards.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Through the combination of machine vision and computer image processing technology, this product can quickly and accurately detect the thickness, outer diameter, eccentricity, concentricity, ellipticity, and other measurements of insulation and sheath of many kinds of wires and cables specified in the standard, and also measure the cross-sectional area value of each layer and conductor. The measurement accuracy of the instrument is far better than the accuracy required by the standard.

Functions and Features

Using computer vision technology, inspection is rapid and timely, far exceeding the measurement speed of manual projectors and reading microscopes. Automatic inspection of the structural parameters of the cable according to the inspection shape selected by the user enables more accurate inspection accuracy than manual measurement and the measurement specifications required by IEC 60811-1-1 (2001). Use LED parallel light sources to improve lighting uniformity and life to ensure continuous and stable light.

Fast measurement data can quickly guide product production, ensure product quality, and can reduce the cost of cable production materials, reduce the error rate of human measurement, and improve measuring efficiency. Keep track of the latest IEC wire and cable standards and test methods in time. Free program upgrades are provided to users, and the professionally designed body structure ensures reasonable and reliable measurements. Three different sets of cameras using a 10-megapixel CMOS sensor can detect the size data of various wire and cable insulation and sheaths from a diameter of 1mm to a diameter of 60mm.

Configuration

High-precision CCD and lens are used as image acquisition devices to perform imaging and sampling to achieve accurate and stable sample testing and improve testing efficiency.

Non-contact measurement, independently and objectively measure the tested object, effectively avoiding the uncertainty of manual measurement.

Item	Operating system of FYTY-60 intelligent measuring imager
Test parameters	The thickness, outer diameter and elongation data of the insulation and sheath materials of cables and optical cables
Sample type	Insulation and sheath materials for cables and optical cables (elastomers, polyvinyl chloride, polyethylene, polypropylene, etc.)
Measuring range	1-10mm	10-30mm	30-60mm
Camera	No.1	No.2	No.3
Sensor type	CMOS progressive scan	CMOS progressive scan	CMOS progressive scan
Lens pixel	10 million	10 million	10 million
Image resolution	2592*2600	2592*2600	2704*2700
Display resolution	0.001mm
Measurement repeatability (mm)	<0.1%
Measurement accuracy (μm)	1+L/100	2+L/100	8+L/100
Lens switching	Freely switch lens
Test time	≤10sec
Door opening method	Electric
Software copyright	Computer software copyright registration certificate provided by the National Copyright Administration of the China (Original acquisition, full rights)

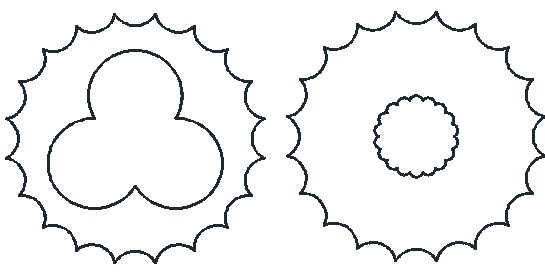

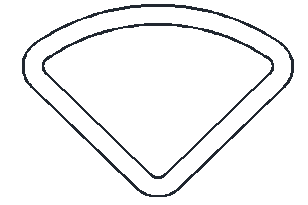

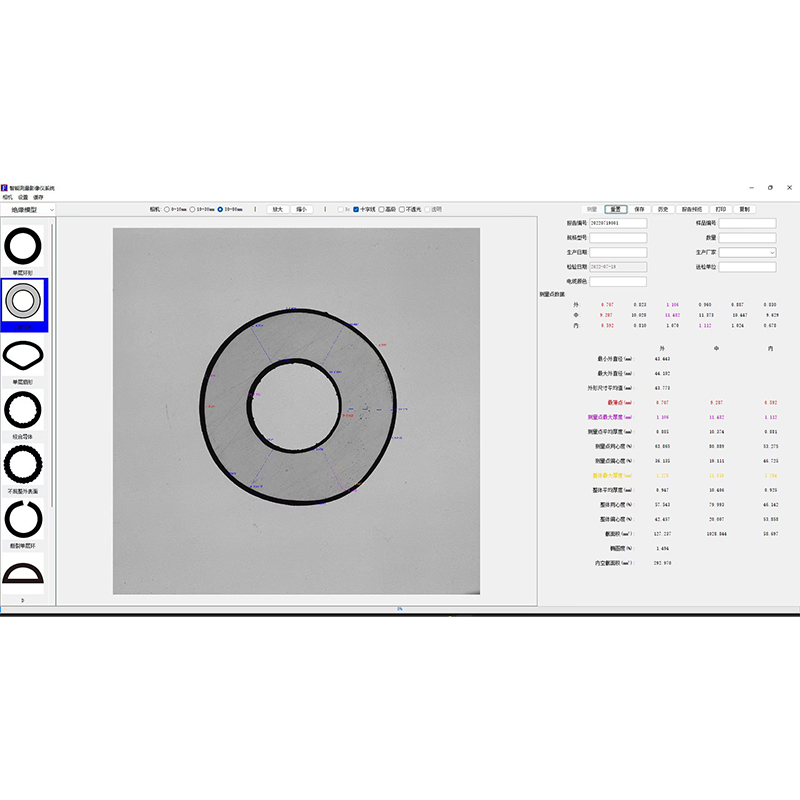

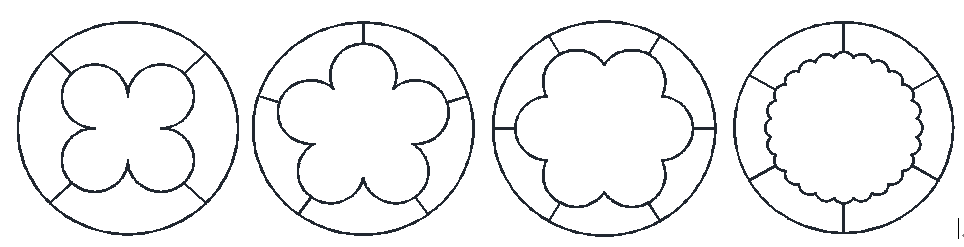

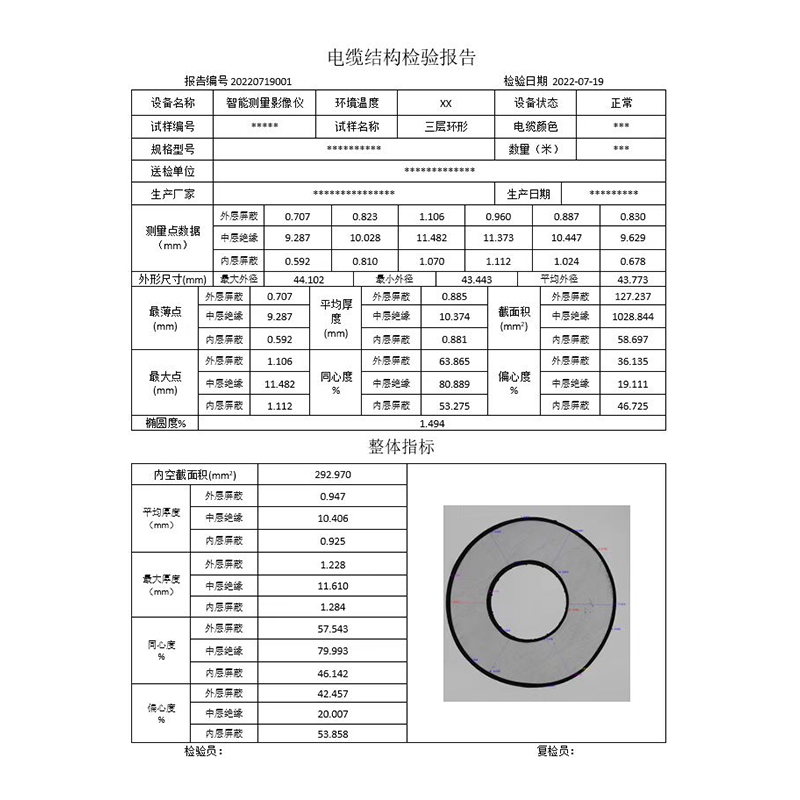

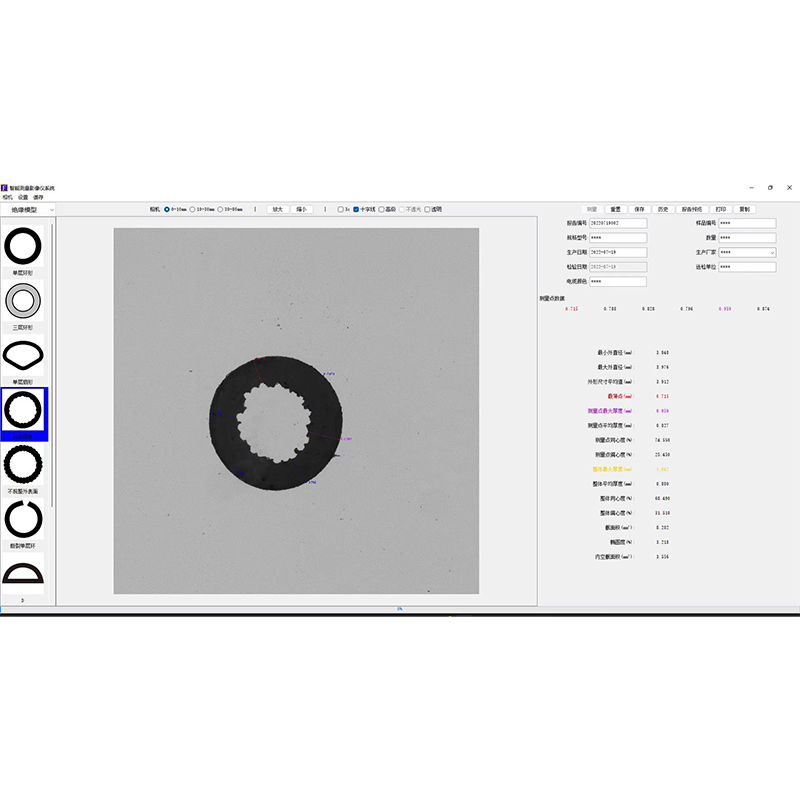

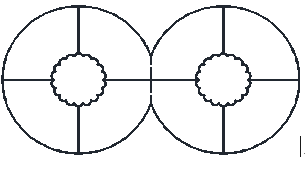

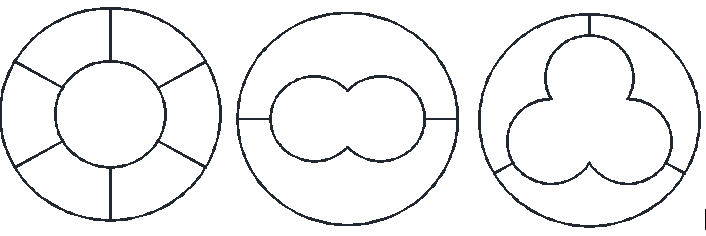

Test procedure	One click measurement, click the measurement button with the mouse, the software will be tested automatically, all parameters will be tested at one time, the test report will be issued automatically, and the data will be stored in the database automatically. Testing software: 1. Testable cable insulation and sheath shape include: ①Insulation and sheath thickness measurement (round inner surface) ②Insulation thickness measurement (sector-shaped conductor) ③Insulation thickness measurement (stranded conductor) ④Insulation thickness measurement (irregular outer surface) ⑤Insulation thickness measurement (flat double core non sheathed flexible wire) ⑥Sheath thickness measurement (irregular circular inner surface) ⑦Sheath thickness measurement (non-circular inner surface) ⑧Sheath thickness measurement (irregular outer surface) ⑨Sheath thickness measurement (flat double core cord with sheath) ⑩Support automatic measurement of gap cables ⑪Support automatic measurement of transparent samples 2.Insulation and sheath test items Maximum thickness, minimum thickness and average thickness. Maximum diameter, minimum diameter, average diameter, Cross-sectional area. Eccentricity, concentricity, ovality (circular). 3.Display the cross-sectional area of the inner space (conductor). 4.The measurement method independently designed based on 3C requirements: meet the requirements of 1.9.2 in GB/ t5023.2-2008: "take three sections of samples for each insulated wire core, measure the average value of 18 values (expressed in mm), calculate to two decimal places, and round off according to the following provisions (see standard terms for rounding off rules), and then take this value as the average value of insulation thickness." A unique 3C report can be generated. 5. Manual measurement function: even if you meet the section shape of wire and cable insulation thickness not listed in the standard, the manual measurement function is added in the software. Just click the position to be measured in the section view, that is, the point-to-point length will be displayed automatically. After the measurement, the minimum thickness and average thickness of these positions can be displayed automatically. 6.Support the setting of the number of measurement points, used to meet the needs of users for measuring at least 6 points. 7.Support customization and development of user specific graphic measurements. 8.It has the function of exporting historical reports with one click. 9.It has a one click clear measurement cache function to free up hard disk space. 10.Measurement software provides lifelong technical support and maintenance.
Calibration function	A standard ring calibration board is provided, which can be used for instrument calibration
Long life light source	High density LED parallel light source, monochromatic light, reduce scattering and highlight the contour of the measured object to the greatest extent. The unique 90 degree angle auxiliary cross light source design can measure opaque samples.
Light path system	Fully sealed chassis, adopts vertical dust-proof optical path system to reduce optical refraction.
Measuring light chamber	The all-black light room reduces diffuse reflection, eliminates stray light interference, and avoids false data errors.

Light Source Parameters

Item	Type	Color	Illuminance
Parallel backlight	LED	White	9000-11000LUX
2 cross auxiliary light sources	LED	White	9000-11000LUX

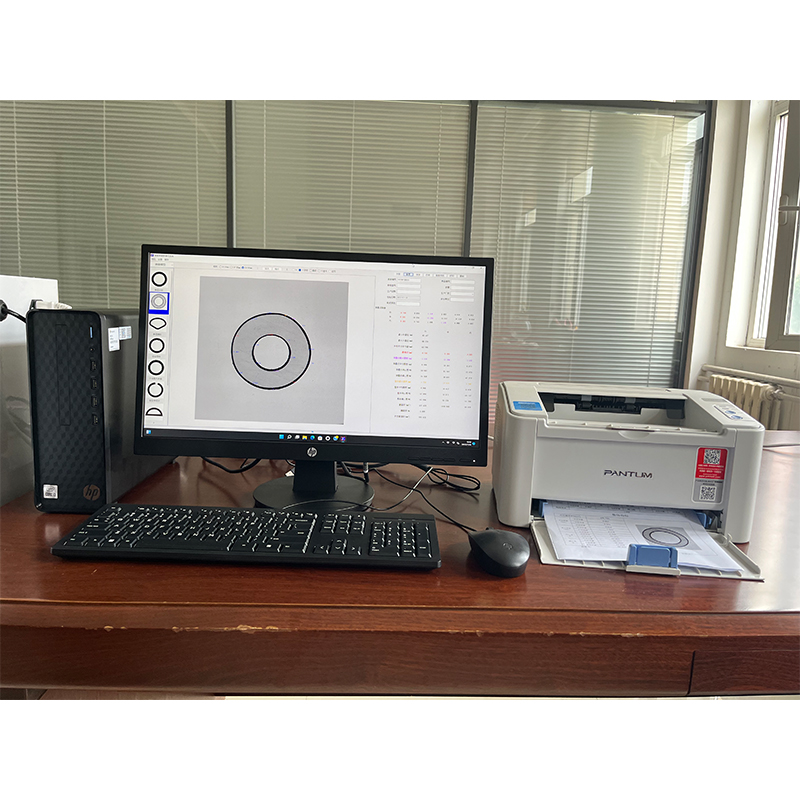

Computer

HP brand computer, Intel i3 CPU processor, 3.7GHz, 8G memory, 512G Solid-state drive, 21.5-inch display screen, 64 Bitwise operation window11.
