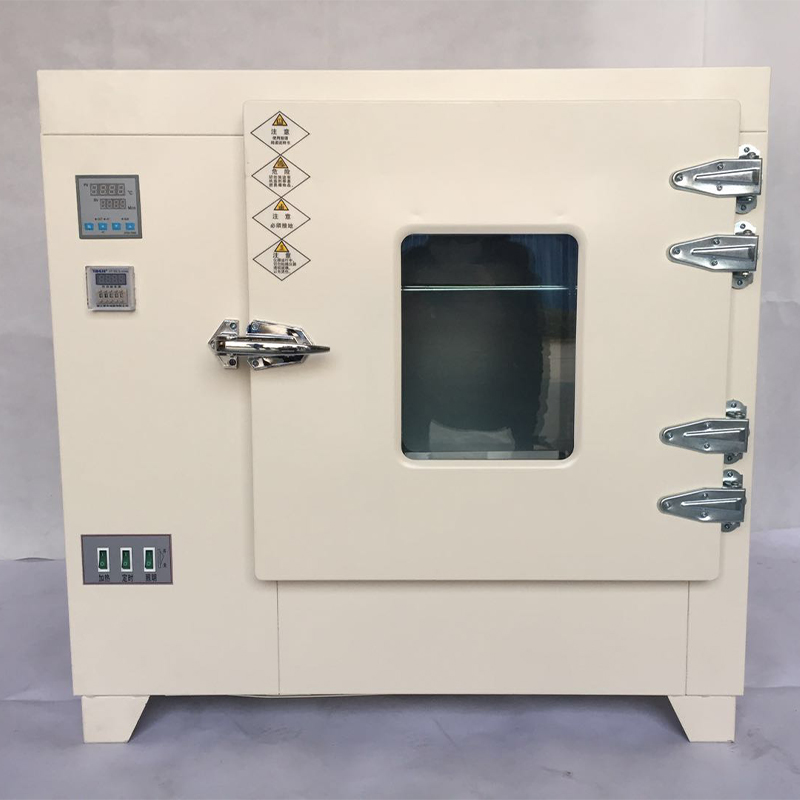

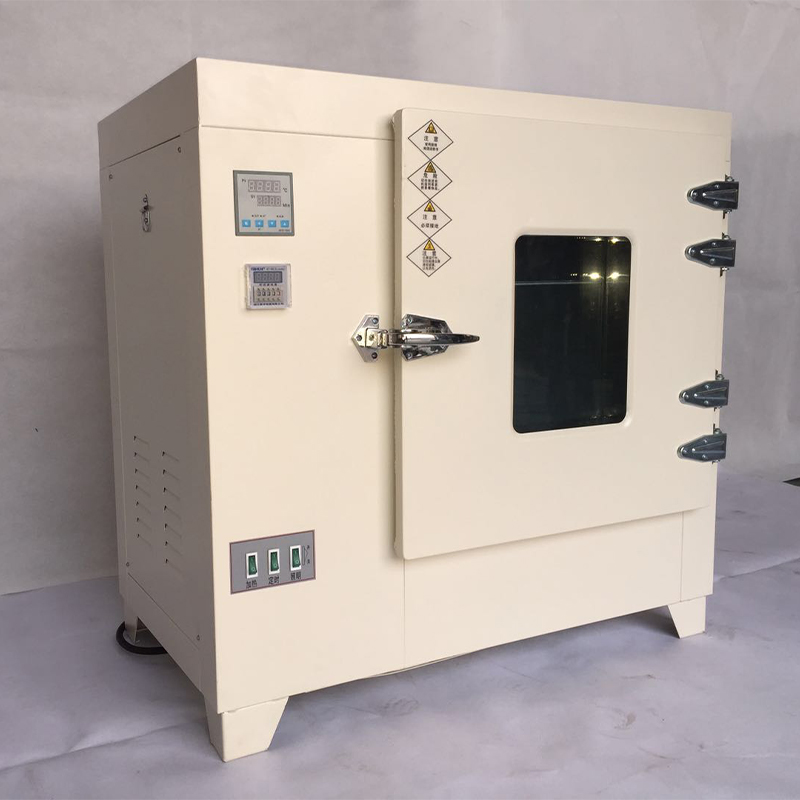

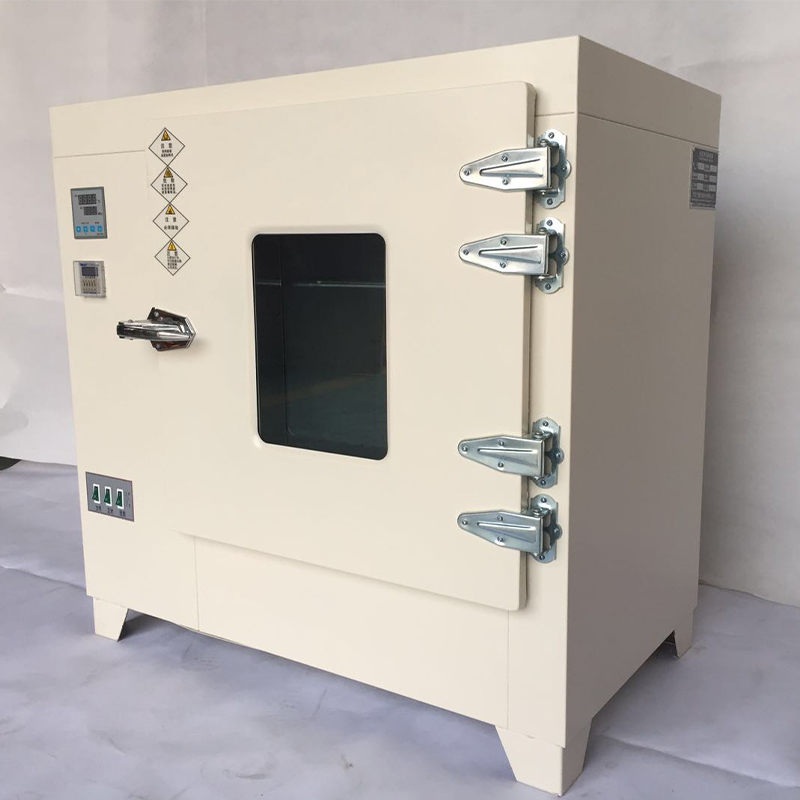

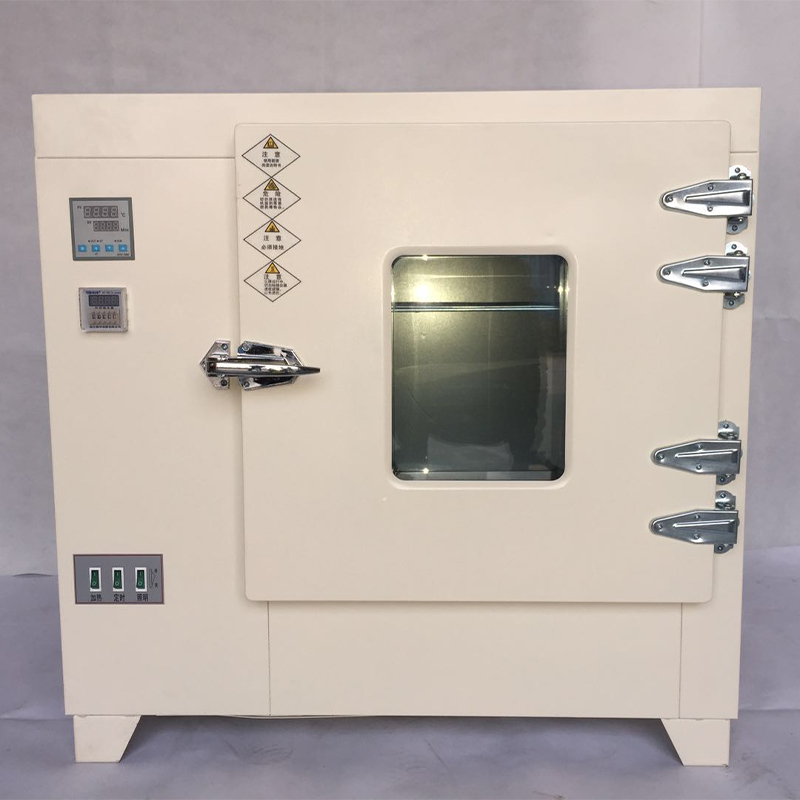

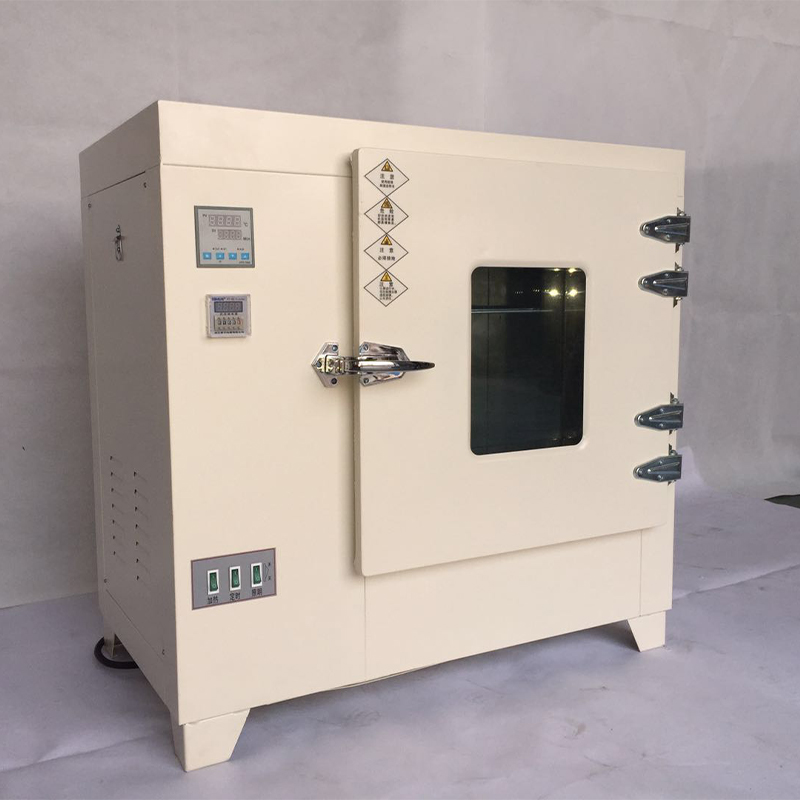

401R Thermal Elongation Test Oven

Suitable for wire and cable thermal extension test.

The shell adopts electrostatic spraying process.

The door is equipped with an observation window, which can observe the heating of the sample in the working room at any time.

Product Detail

Product Tags

Suitable for wire and cable thermal extension test.

1.The shell adopts electrostatic spraying process.

2.The door is equipped with an observation window, which can observe the heating of the sample in the working room at any time.

4.Digital time relay.

5.Microcomputer intelligent PID control, dual screen high brightness digital display, clear display value, accurate and stable temperature control.

6.Special internal circulation design, uniform temperature in the working room.

7.The inner tank is made of galvanized sheet or stainless steel sheet.
8.The door of the box is sealed with silicone strips, which has a good sealing effect.

1.Working voltage: 220V / 50Hz

2.Power: 2.4kW

3.Temperature range: room temperature ~ 300℃

4.Temperature control accuracy: ±1℃

5.Working room dimension(mm): 450(L) × 450(W) × 350(H)

6.Power of inner lighting:30w

7.Weight: 36kg

8.Dimensions(mm): 760(L) × 510(W) × 660(H)
