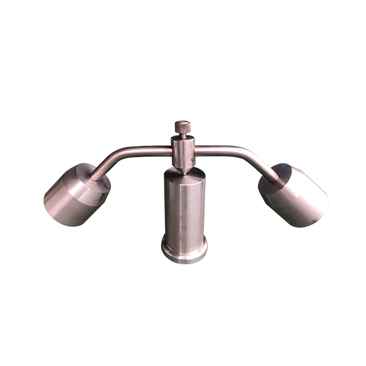

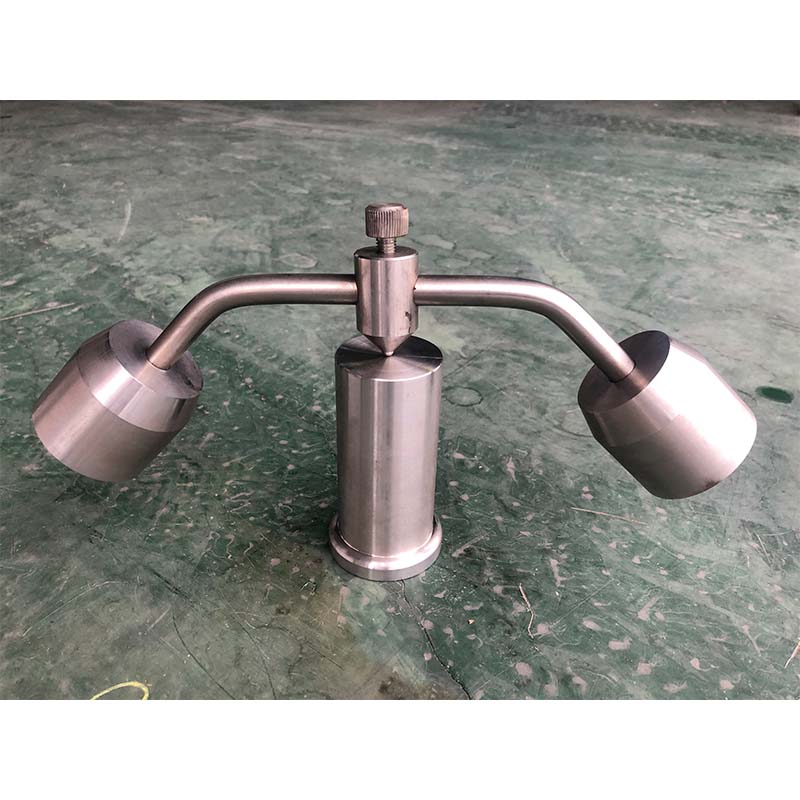

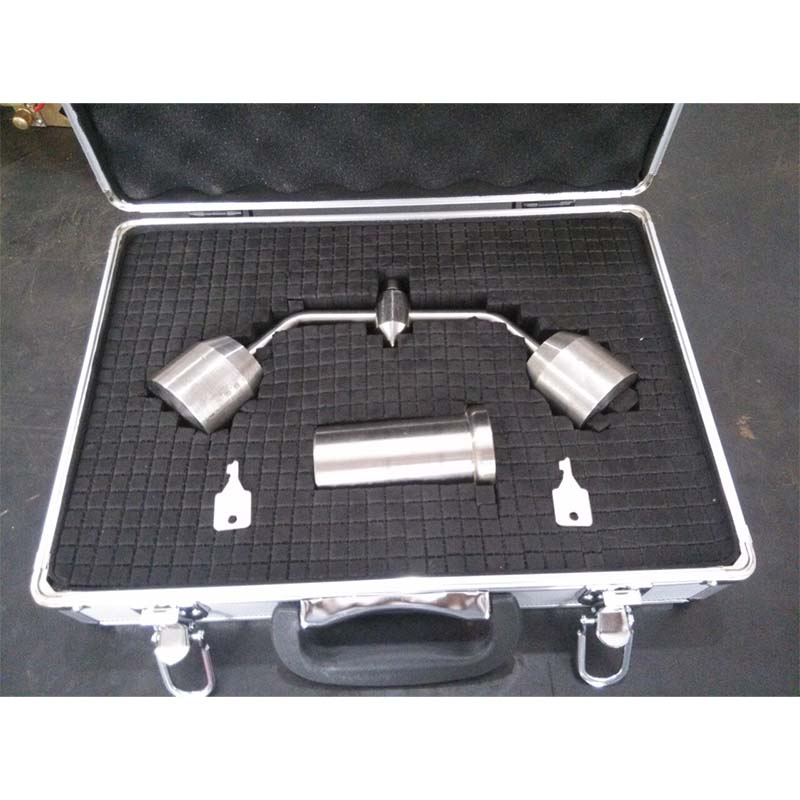

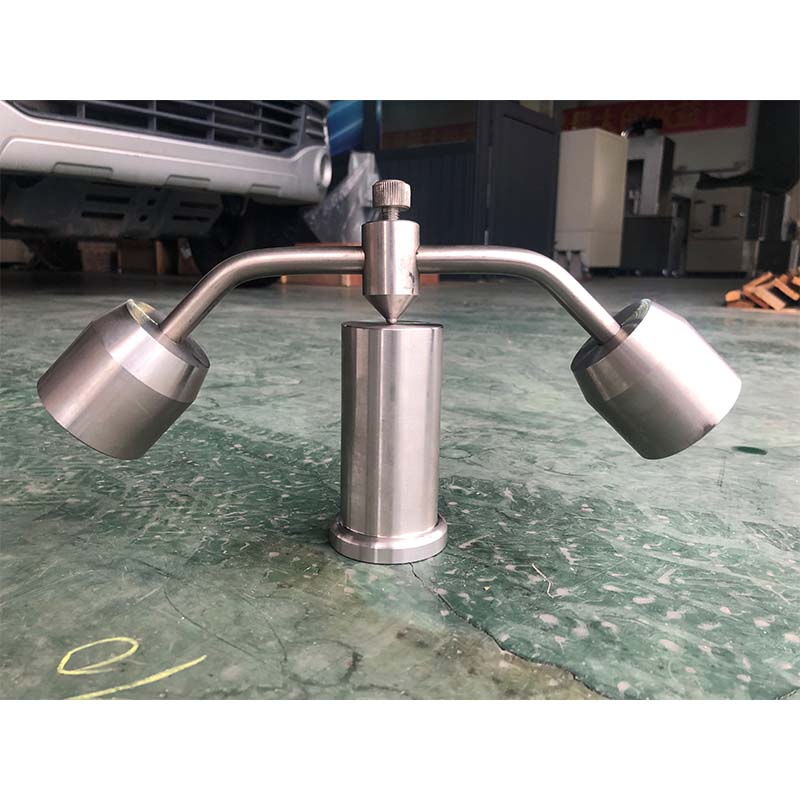

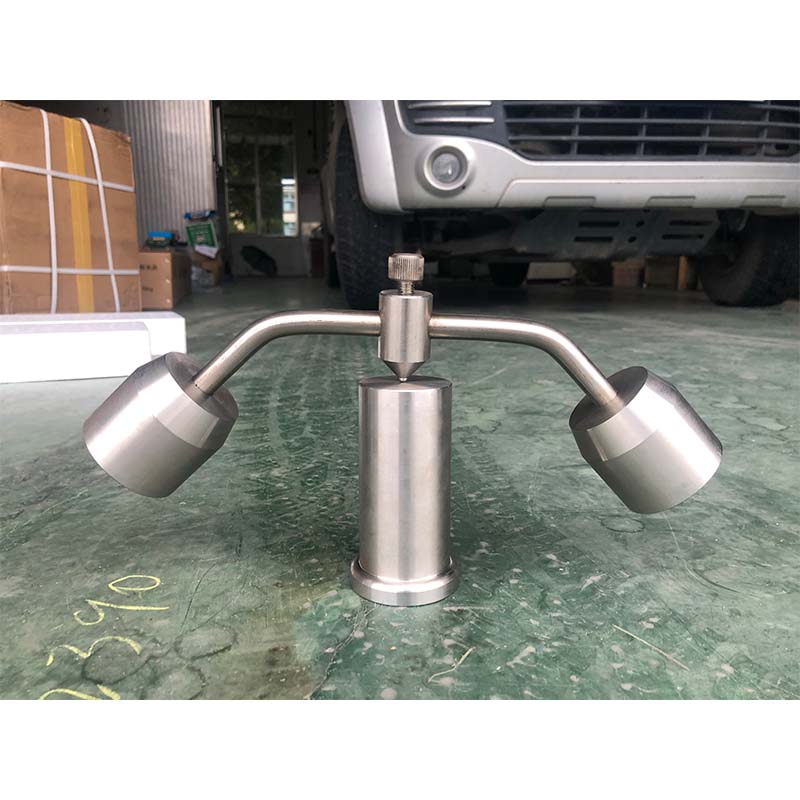

Ball Pressure Tester

Ball pressure tester is suitable for lighting equipment, low voltage electrical appliances, household electrical appliances, machine tools, electrical machinery, electric tools, electronic instruments, electrical instruments, electrical instruments, information technology equipment, electrical services equipment, electrical connectors and accessories,electrical connections and accessories component. Also suitable for insulation materials and engineering plastics industries.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

For measuring non-metallic and non-ceramic insulating materials, the maximum measurement temperature is 250 ℃.

Meet GB4706、GB2099、GB4943、VDE0620,IEC 60695-10-2 / 2003-07 standard.

Test Procedure

The ball pressure test is put specified steel ball (R2.5mm) and total test force 20N ± 0.2N ball pressure tester which are in the form of horizontal state and placed on the sample surface in heating chamber.Quickly (<10s) immerse the test sample in 20 ℃ ± 5 ℃ water for 6min ± 2min, remove the sample from the water, measure the diameter of the indentation on the surface of the sample within 3min, and check whether the indentation diameter was more than 2mm to evaluate the heat-resistant deformation capacity of the sample at the specified temperature.

Technical Parameter

1.Material: 304 stainless steel

2.Total weight: 2040±5g (20N)

3.Spherical SR = 2.5mm

4.Width: 340mm

5.Height: 130mm
