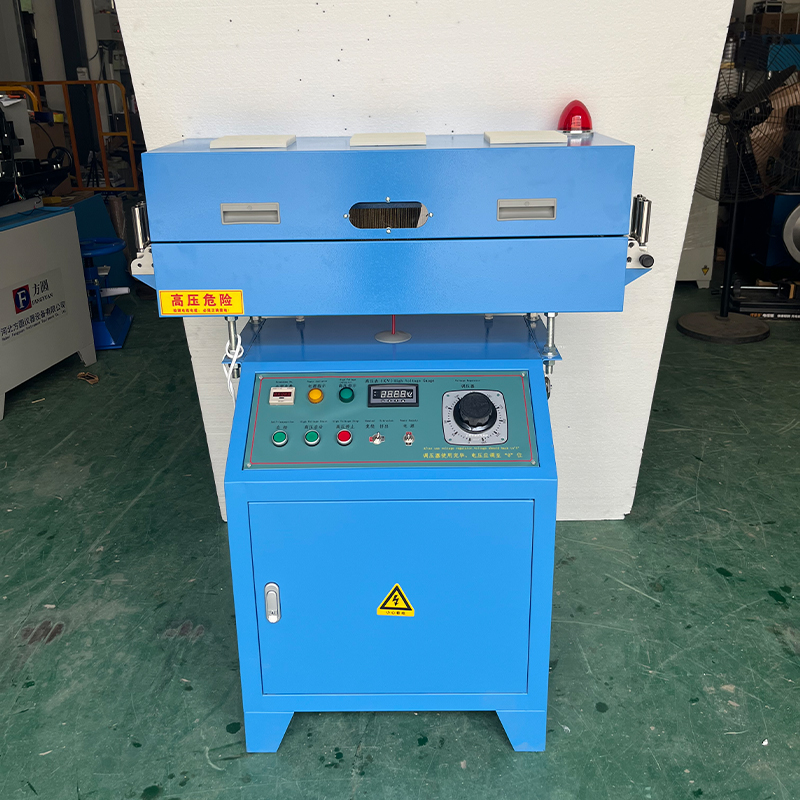

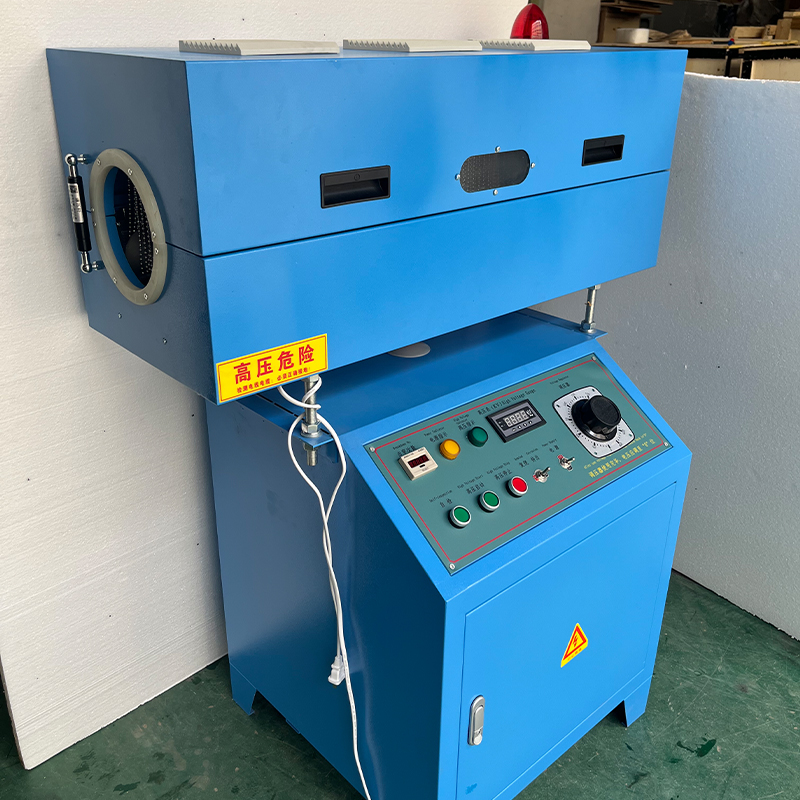

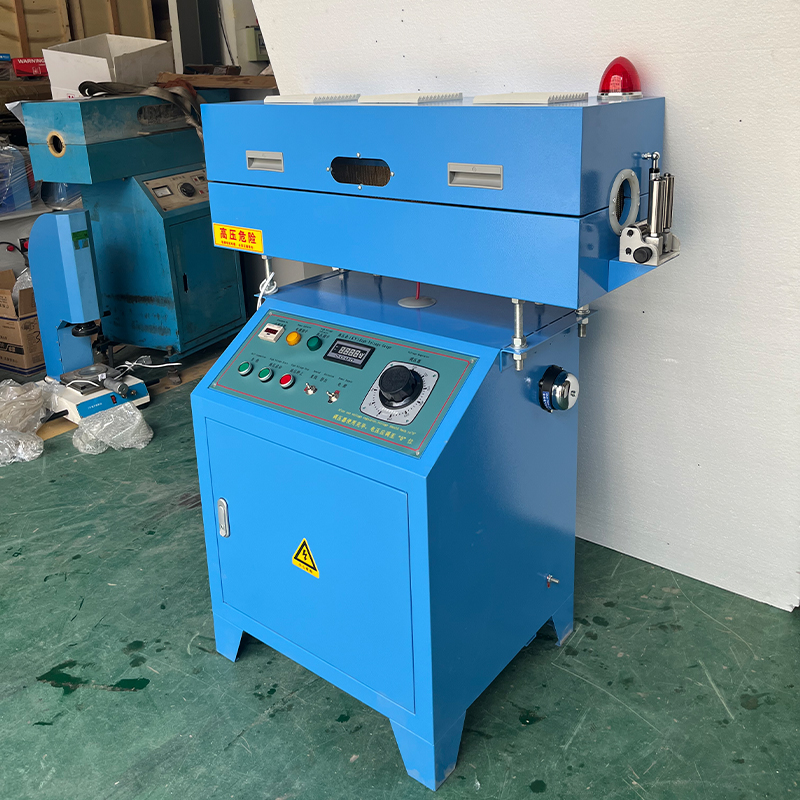

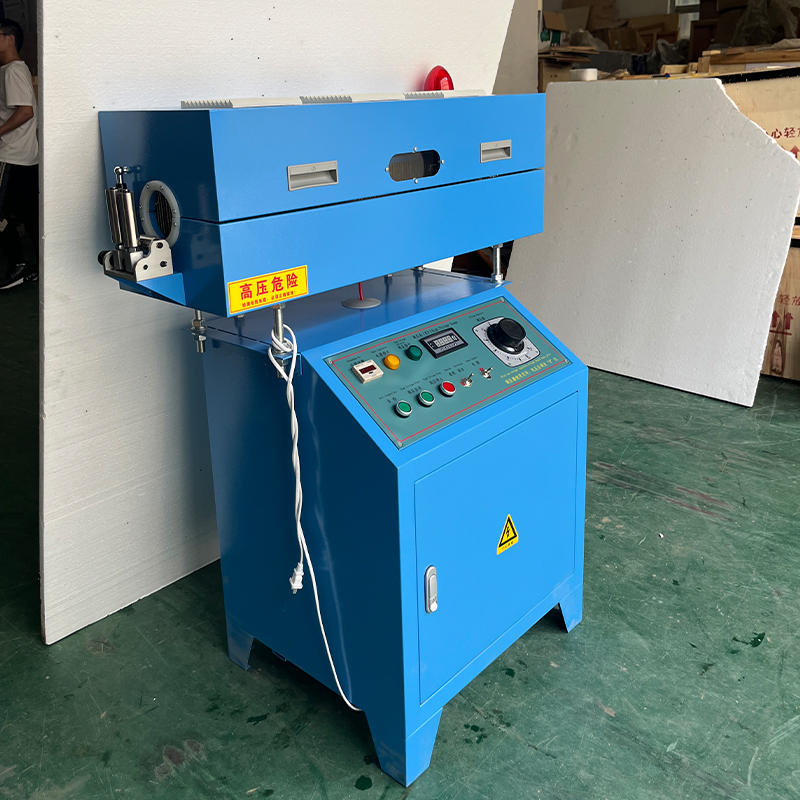

CHJ Series Spark Tester

Power frequency spark machine is actually an online weakness detection instrument. It periodically loads the set voltage value to the insulated wire according to a certain rule, and the conductor part is grounded. In this way, a voltage difference is formed between the conductor and the insulation surface, so that it can be detected whether the insulation layer is defective.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

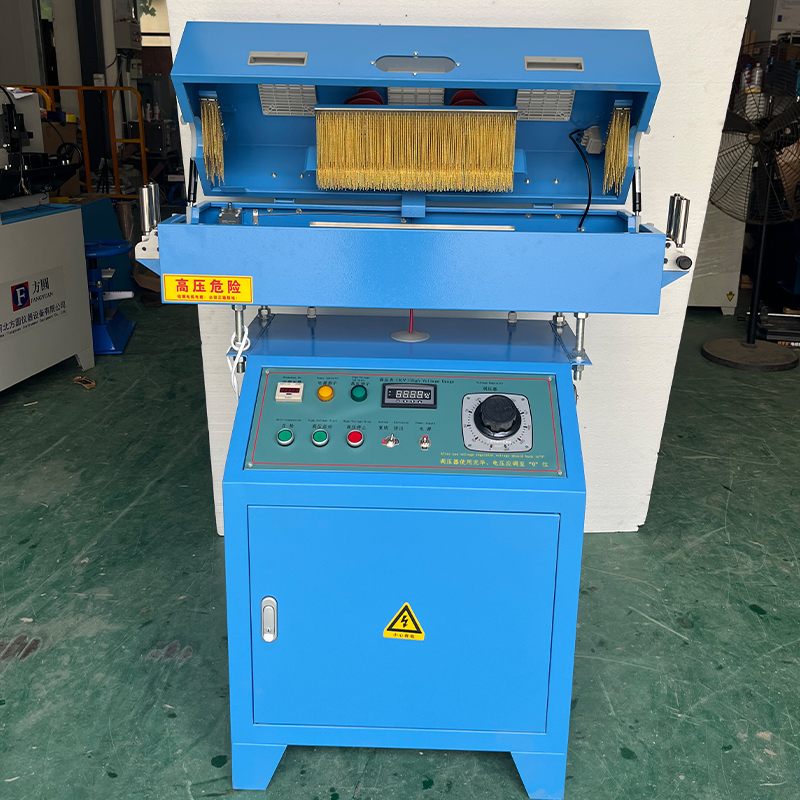

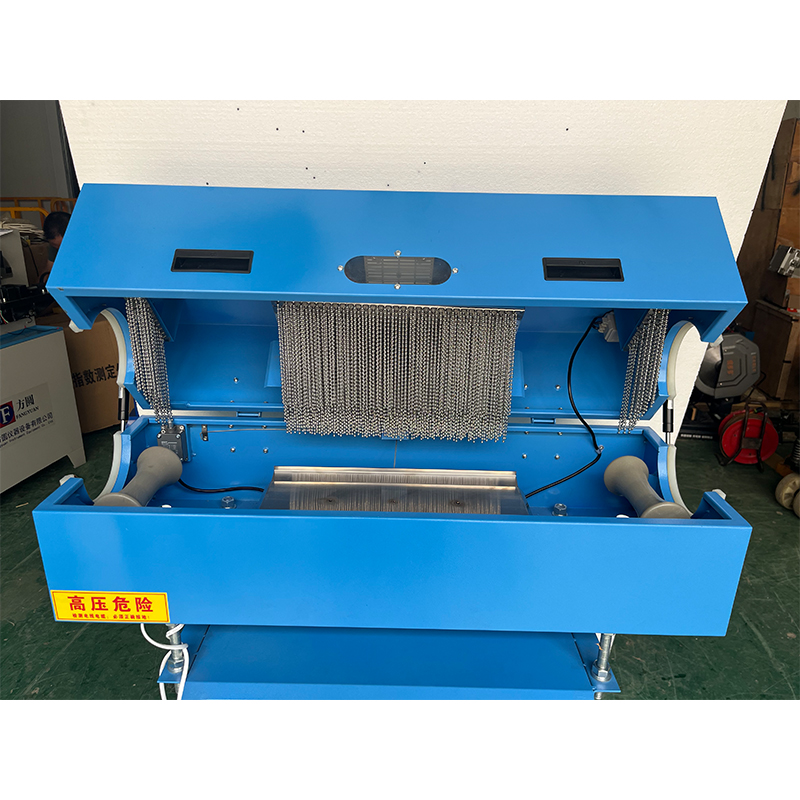

Integrated circuit control, multiple protection, pure copper bead chain or 304 stainless steel bead chain durable.Detection voltage is continuously adjustable(high voltage indication error 3%) sensitivity <600μA: good stability, no error with water,no error in the breakdown count.The breakdown count is automatically alarmed.The breakdown point is particularly visible.Durable and corrosion resistant,compact structure,beautiful and easy to maintain.The electrode box is equipped with a mechanical ground protection spring to ensure safety.High voltage transformers above 30KV are oil-immersed.

Technical Parameter

	Unit	CHJ
Output detection voltage (max)	KV	15	25	25	30	35
Sample outer diameter (max.)	mm	Φ 80	Φ 80	Φ150	customize
Test speed (max)	m/min	480	480	480	480
Electrode area length	mm	408	408	408	408
High voltage generator		Resin casting			Oil-immersed
Resolution ratio	s	0.05
Power apply		AC 220V 50HZ
Height of center	mm	900-1050mm (can be customized)
Chassis		Carbon steel
Dimensions	mm	1000(L) x 500(W) x 1060(H)
