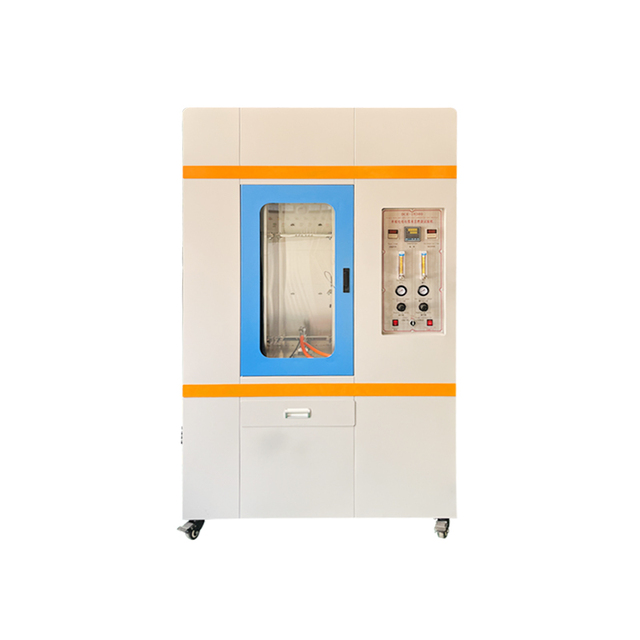

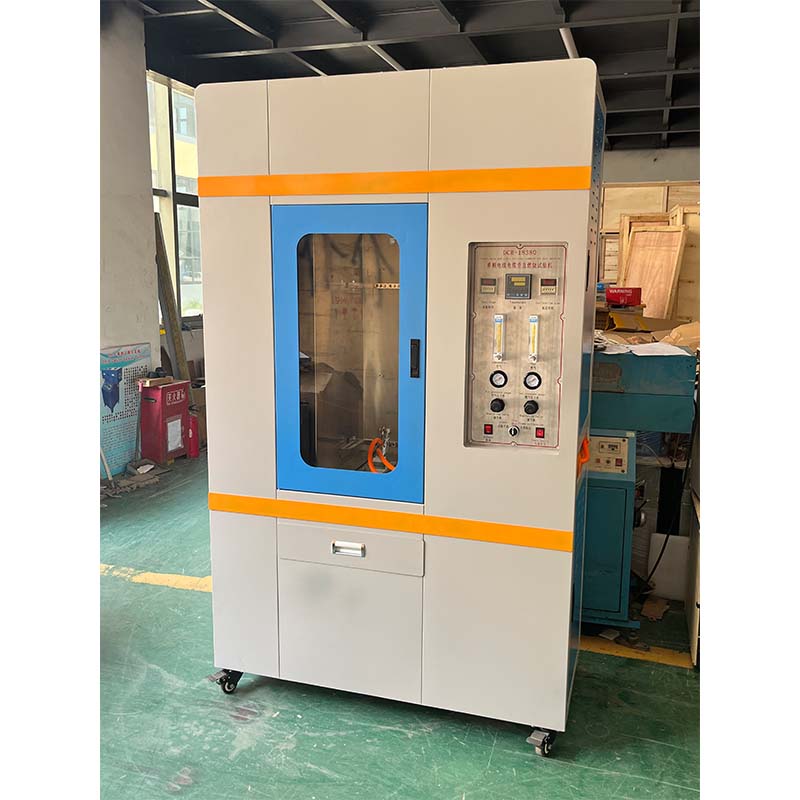

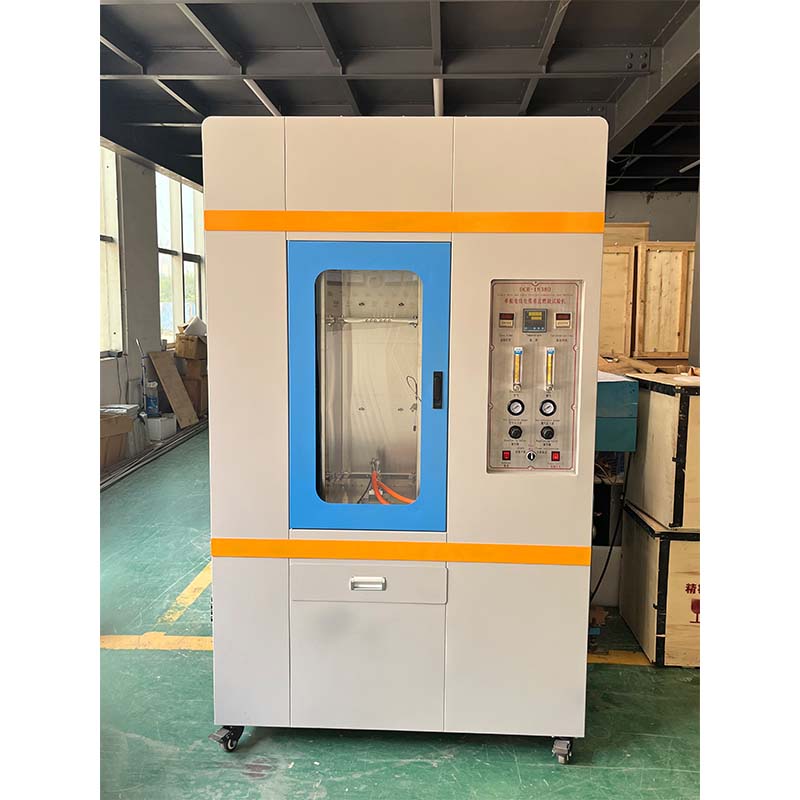

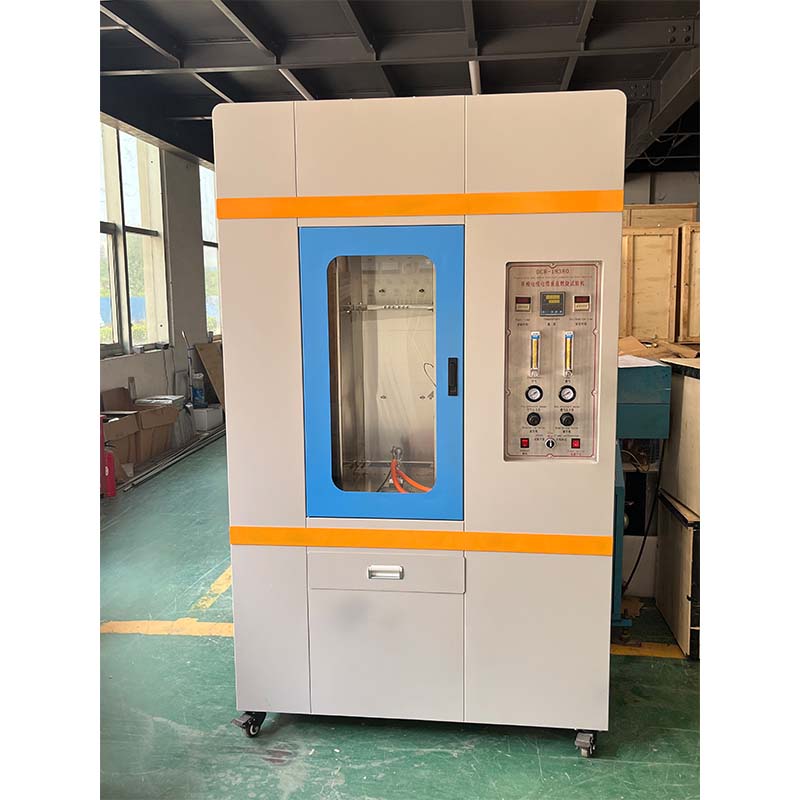

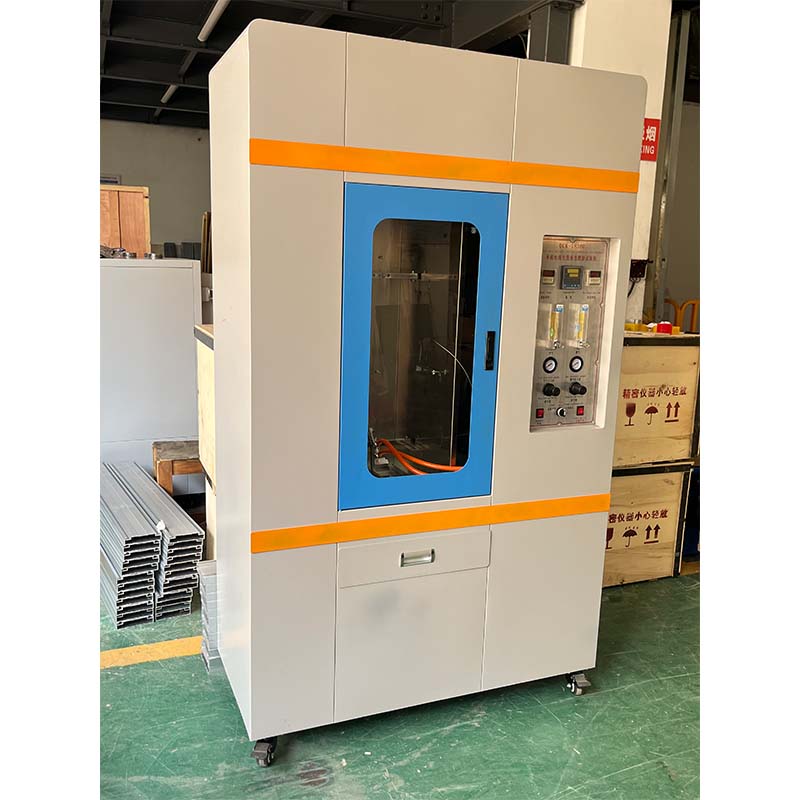

DCR-18380 Single Wire and Cable Vertical Burning Test Machine

This instrument is made according to GB/T 18380.11/12/13-2022 version of the latest implementation of the standard, IEC60332-1, JG3050, JB / T 4278.5, BS, EN test standards. The two ends of the sample are fixed and placed vertically in a metal cover with metal plates on three sides. Ignite the torch so that the tip of the blue inner cone touches the test surface and keep the torch at 45 °to the vertical axis of the sample.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Technical Parameter

1.Ignition source: gas torch nominal power 1kW, in line with IEC60695 standard requirements of the relevant test methods.
2.Gas flow range: 0.1-1L/min
3.Air flow range: 1-15 L/min
4.Combustion chamber volume: 1.1m3
5.Power supply voltage: AC220V±10%, 50Hz
6.Gas source: LPG or propane, compressed air
7.Timing range: 0-9999 seconds adjustable
8.Timing accuracy:±0.1s
9. Metal cover size(mm): 450(L) x 300(W) x 1200(H)
10.Test box size(mm): 1200(L) x 550(W) x 2070(H)
