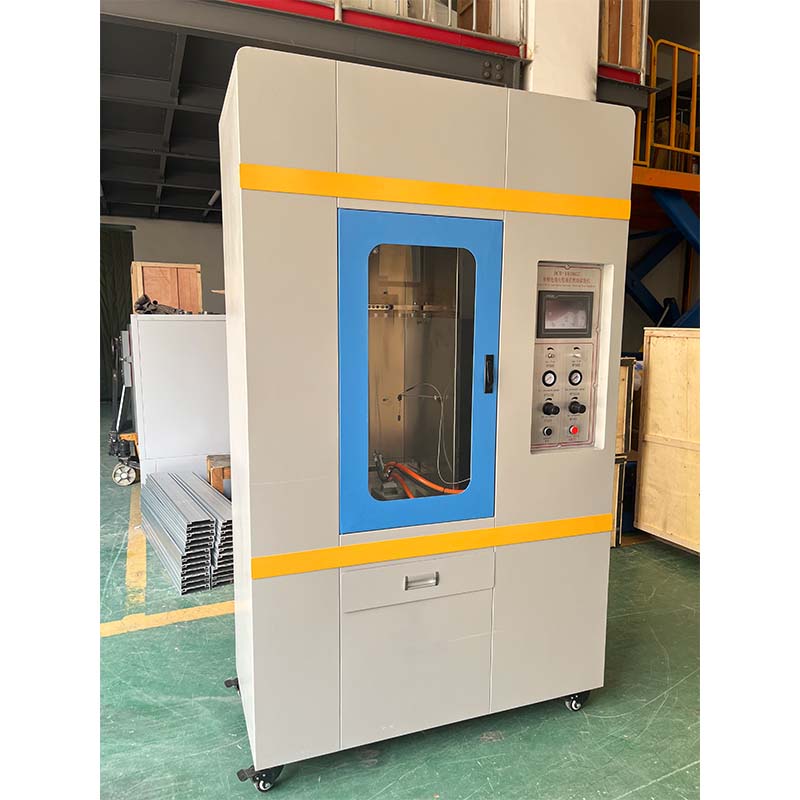

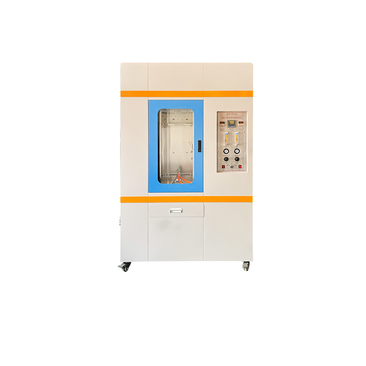

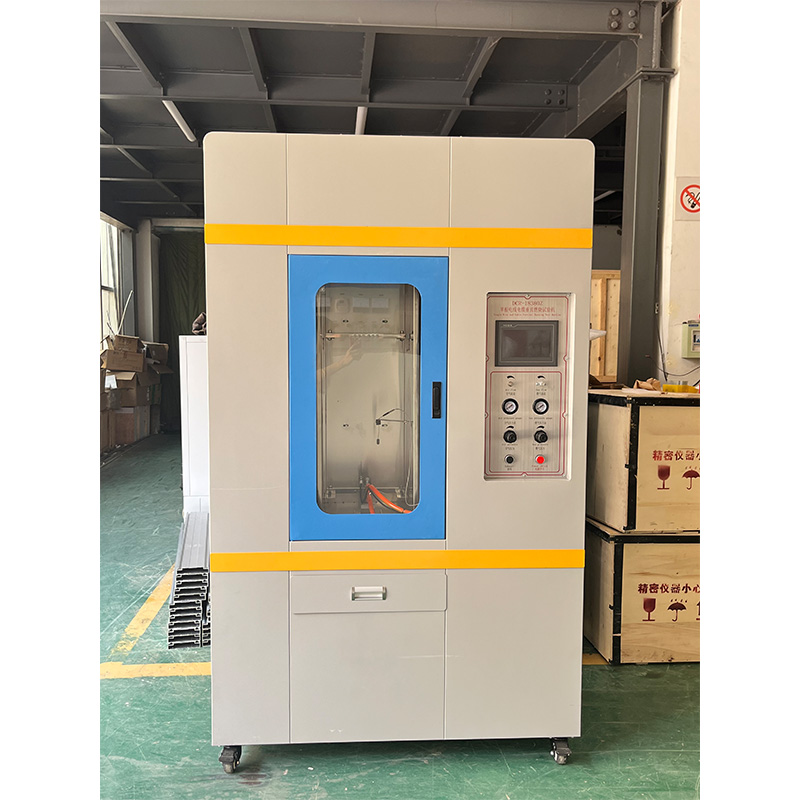

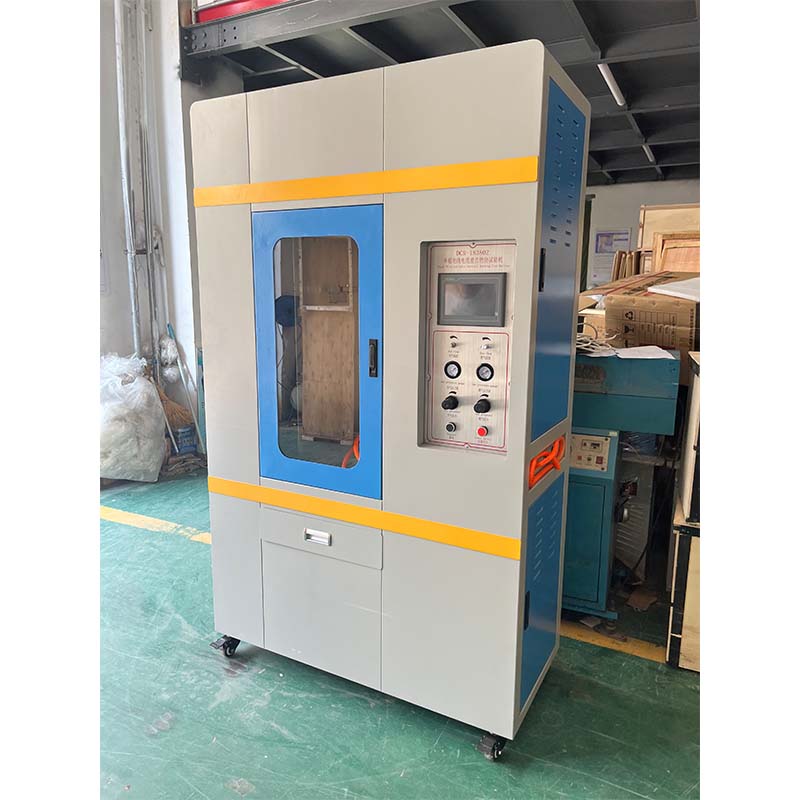

DCR-18380Z Single Wire and Cable Vertical Burning Tester

This instrument is made according to GB/T 18380.11/12/13-2022 version of the latest implementation of the standard, IEC60332-1, JG3050, JB / T 4278.5, BS, EN test standards. The two ends of the sample are fixed and placed vertically in a metal cover with metal plates on three sides. Ignite the torch so that the tip of the blue inner cone touches the test surface and keep the torch at 45 °to the vertical axis of the sample.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Technical Parameter

1.Built-in metal cover: 1200mm high, 300mm wide, 450mm deep, open front, closed at the top and bottom.

2.Combustion box volume: 1 m³

3.Gas torch with nominal power of 1kW.

4.Integrated burner calibration device.

5.The machine will automatically stop the ignition when the set burning time reaches the preset time

6.Ignition is automatic high-voltage electric fire.

7.Fuel: Propane, compressed air (customer's own)

8.One each for air mass flow meter and gas mass flow mete.

Gas flow rate meets 0.1L/min-2L/min, not less than 1.5 level, air flow rate meets 1L/min-20 L/min, flow rate can be set, equipped with propane gas pressure gauge 0-1mpa one, air pressure gauge 0-1mpa one.

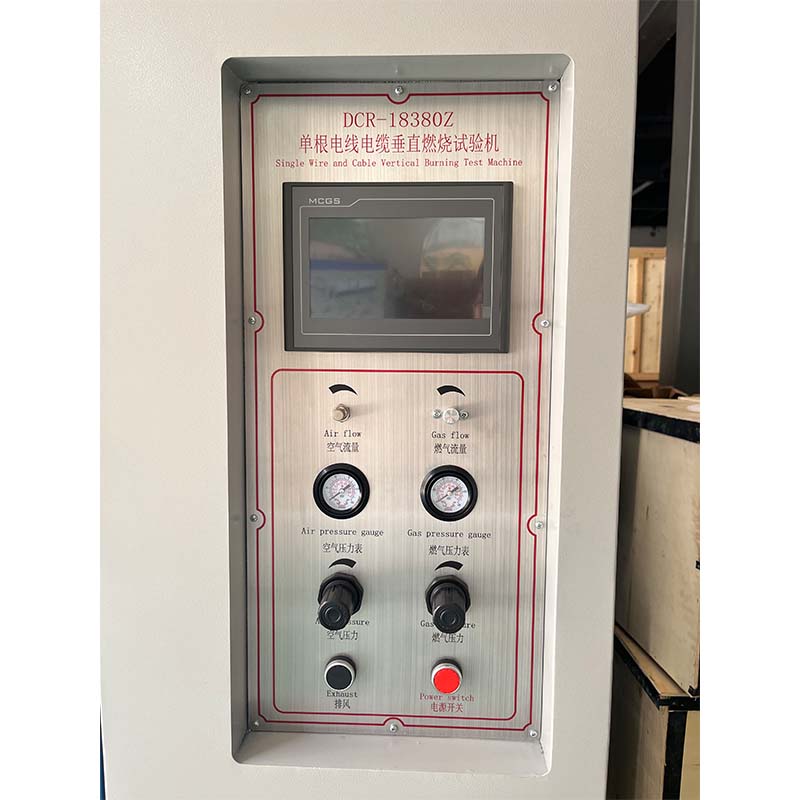

9.PLC control, touch screen operation, with temperature rise time curve, data output.

10.Sample: The device meets the requirements of 1.5-120mm, with a length of 600 ± 25mm, and the sample for vertical combustion test

11.Temperature recording range: 0-1100 ℃, detection accuracy ± 1 ℃

12.Thermocouple: temperature resistance ≥ 1050 ℃

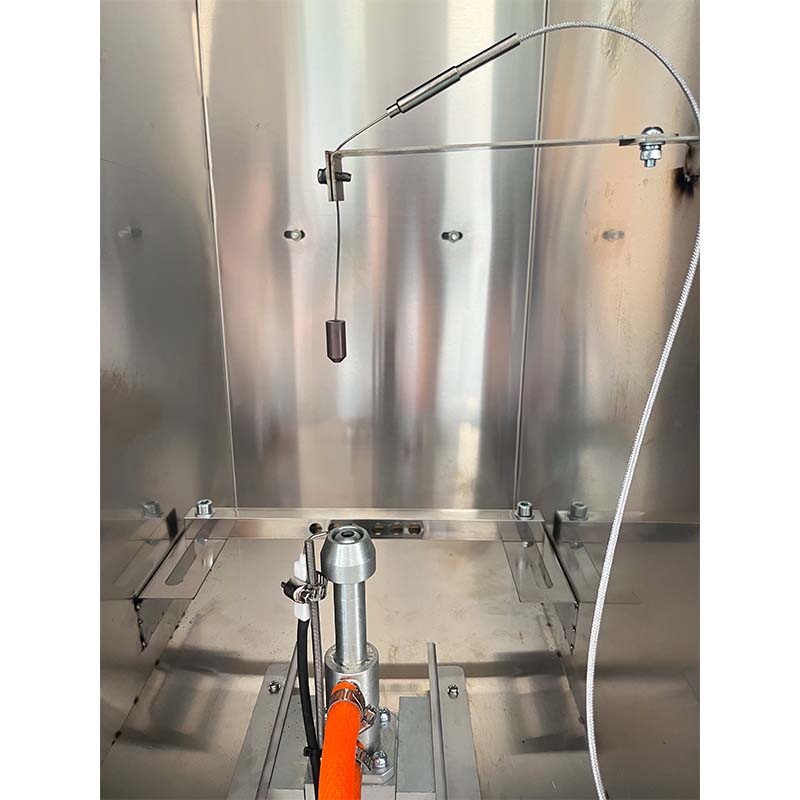

13.Flame detection device: one φ 0.5K type thermocouple, one electrolytic copper block (outer diameter φ 9mm mass 10g ± 0.05g)
