DQ-F Superfine Wire Conductor Resistance Fixture

Product Detail

Product Tags

Product Description

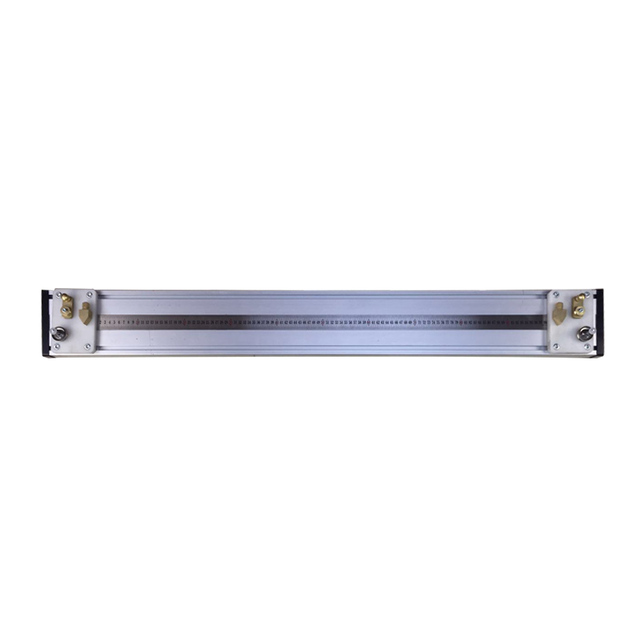

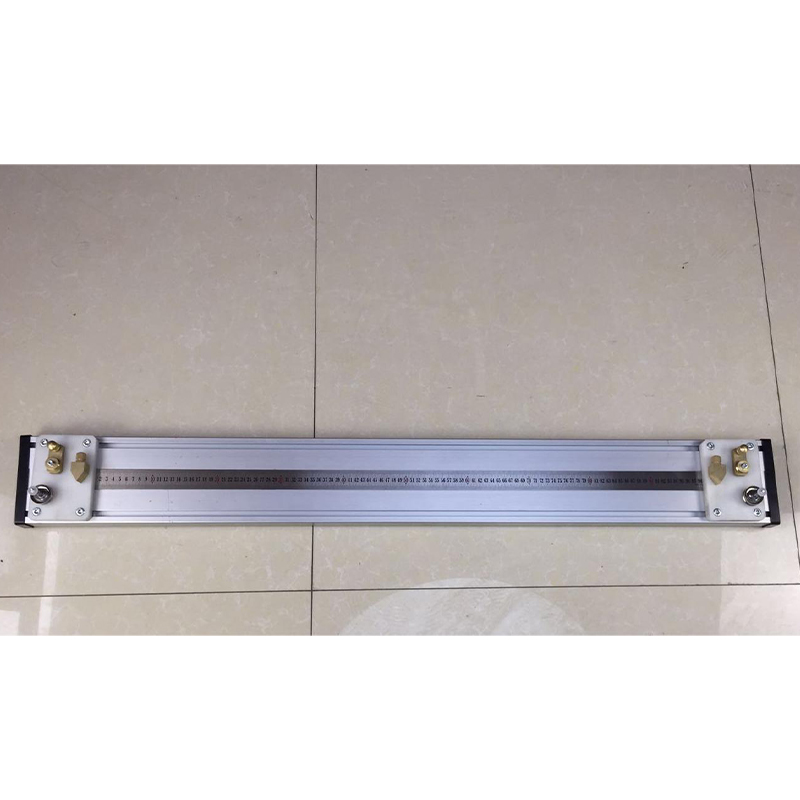

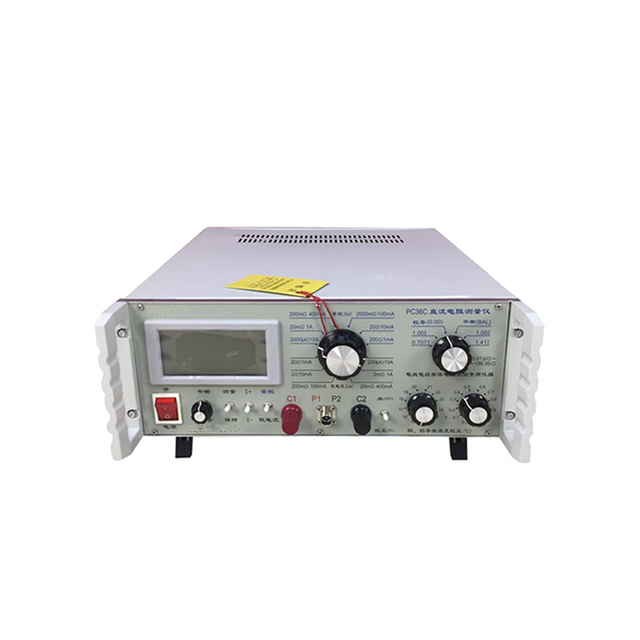

The superfine wire conductor resistance fixture is a supporting device for measuring the DC resistance of wire and cable conductors. It can be used with QJ36, QJ57, SB2230, PC36C, and other double-arm resistance measuring instruments and digital resistance measuring instruments to measure the resistance of conductors. Meet the IEC60468 electrical performance test method standard requirements. The bottom plate is made of an aluminum alloy profile, independent current end cylindrical groove, voltage test end blade edge, and tension device design.

Features

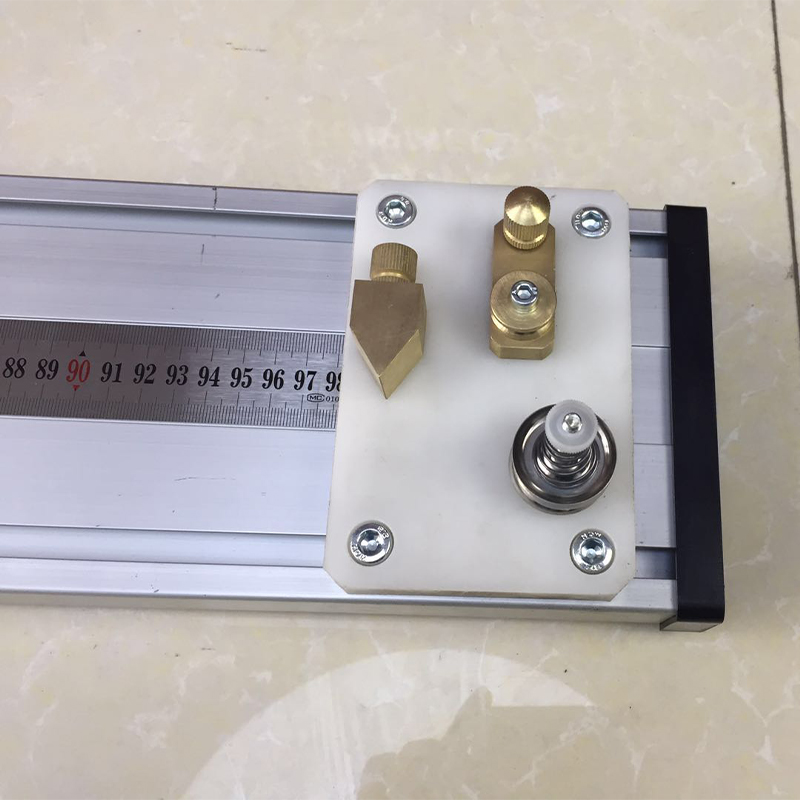

1. The unique design of the cylindrical groove at the current end can ensure good contact with the sample by winding the measured line to the cylinder groove.
2. A tension device is adopted for wire tightening, with moderate tightness and adjustable tension to avoid wire breakage and improve measuring efficiency.
3. The blade edge of the voltage terminal can effectively ensure the distance of the test line and the effective resistance value accuracy.
4. The current and voltage ends of the fixture are made of pure copper, which has sufficient mechanical strength and a small contact thermoelectric potential.
5. This fixture directly uses copper and aluminum single wire diameter 0 ~ 0.5mm round wire, such as electromagnetic wire, which also can be used for enameled round wire and flat wire resistance measurement.

Technical Parameter

Current terminal shape: cylindrical groove
2. Voltage terminal shape: blade shape
3. Measuring lead length: 1000mm
4. Testable diameter: 0 ~ 0.5mm
Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

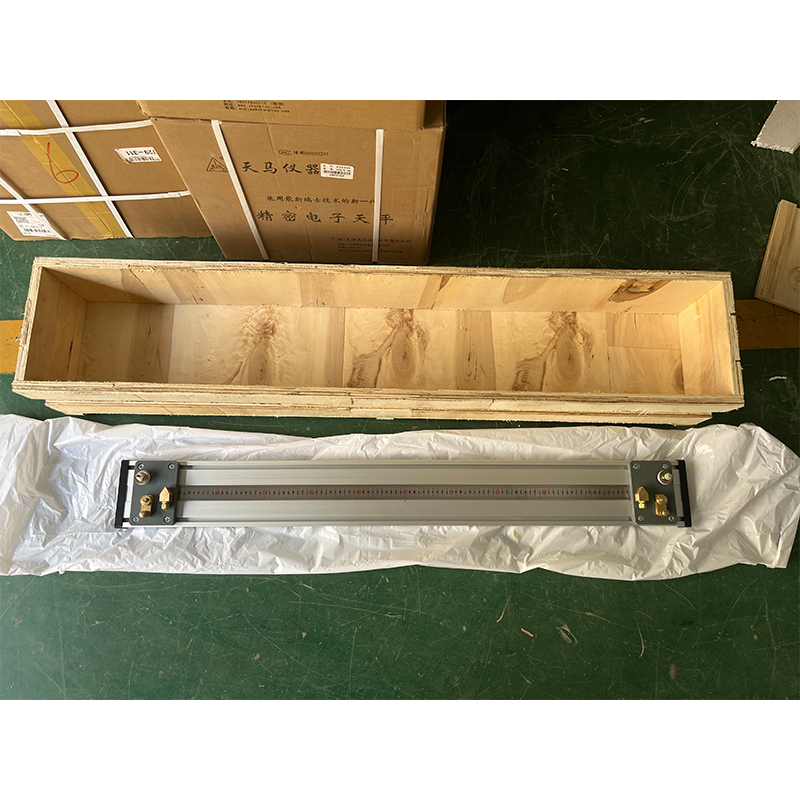

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.
