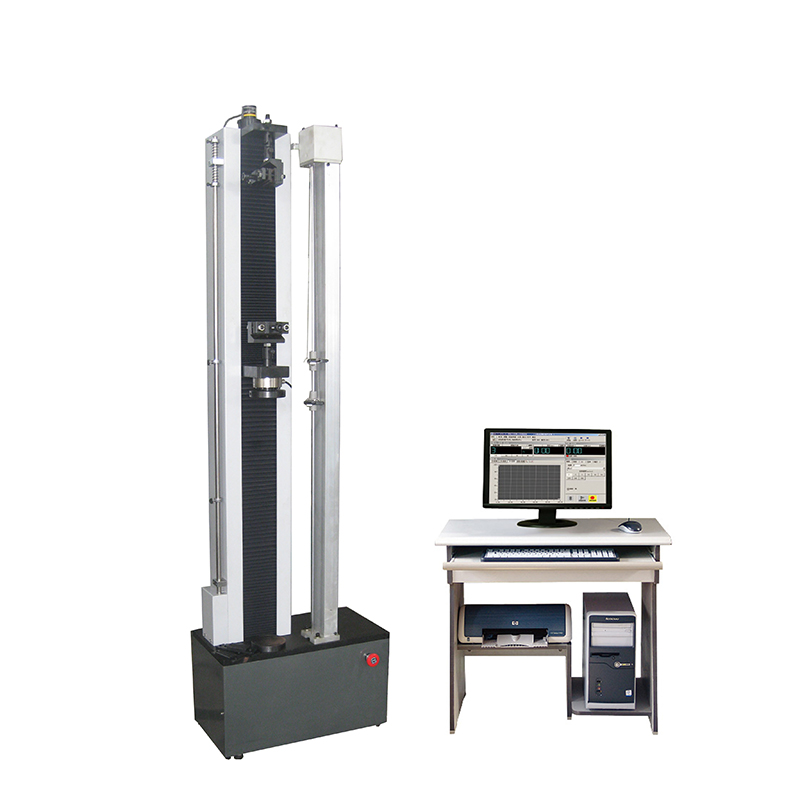

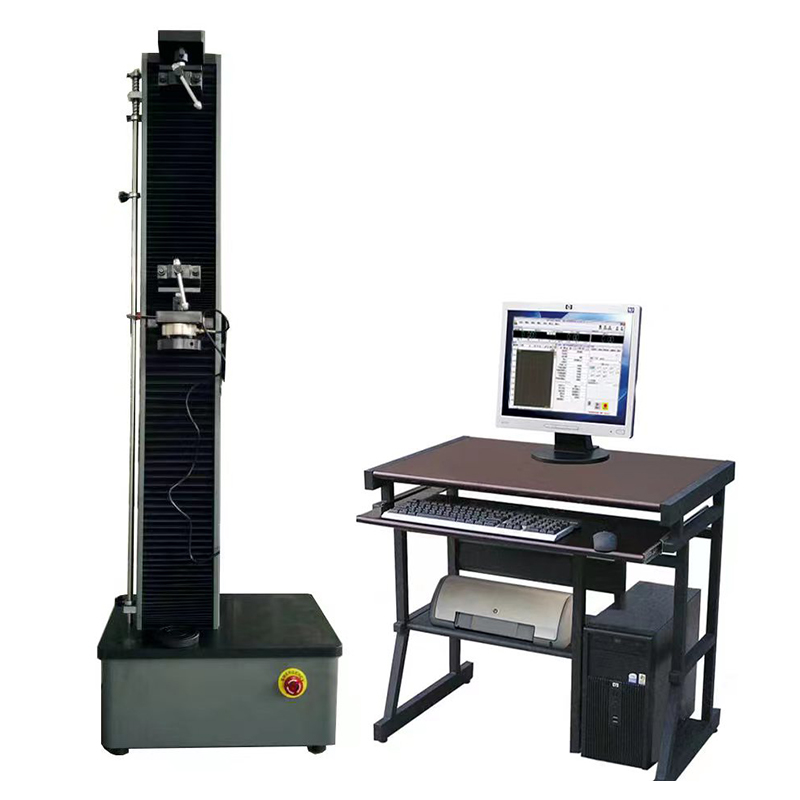

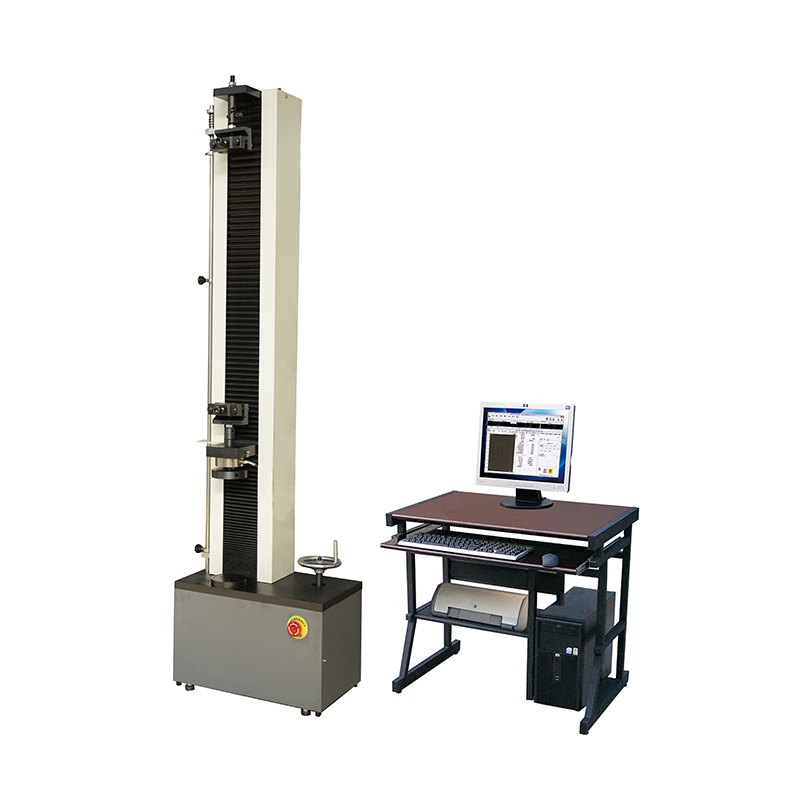

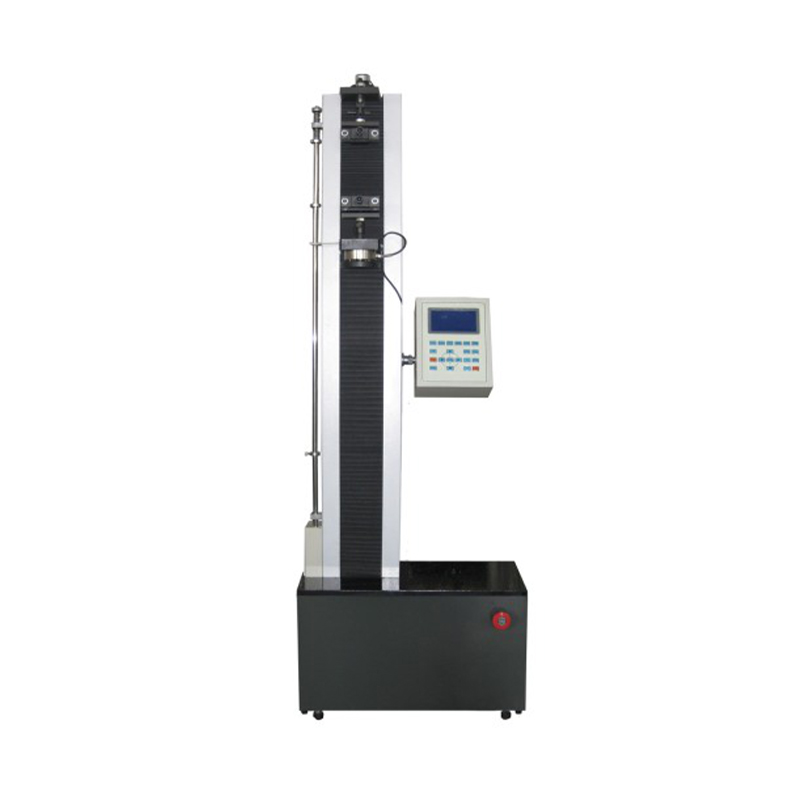

Electronic Tensile Testing Machine

Product Detail

Product Tags

Product Description

Electronic tensile tester used in tensile test for rubber, plastic, textile fabrics, waterproof material, wire&cable, braided rope, metal wire, metal rod, metal plate.If added other tools this tester can also doing compression or bending test. It has the function of digital display of test force, continuous adjustable test speed, automatic stop when the sample is pulled off, and automatic stop when the peak value is maintained.With good cost performance.

Technical Parameter

Model	LDS-01	LDS-02	LDS-05	LDS-1	LDS-3	LDS-5
Max testing force	100N	200N	500N	1000N	3000N	5000N
Measuring range	2% ~ 100% of the max testing force
Accuracy of test force	Better than ±1 of the indicated value
Displacement measurement	The resolution is 0.01mm
Deformation accuracy	2% ~ 100% of extensometer full range,better than±1%
Speed range	1 ~ 500mm/min
Stretch available space	1000mm(customized）
Compressed effective space	1000mm(customized）
The host form	Single arm
Dimension(mm)	600(L) x 400(W) x 1600(H)
Weight	About 180 kg				About 200 kg

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.

Q: What’s the delivery term?

A: For our standard machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.
