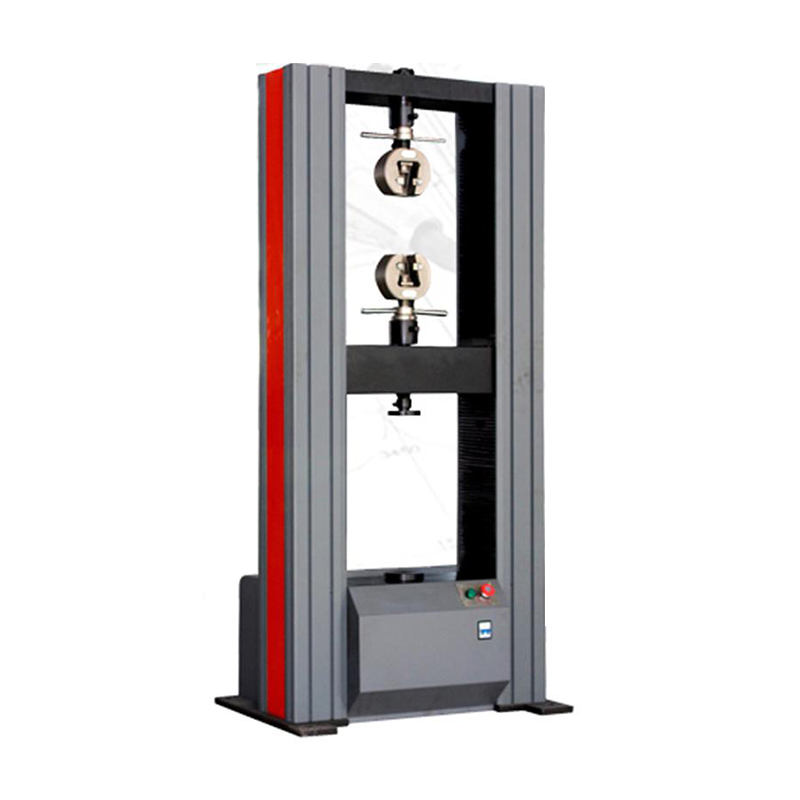

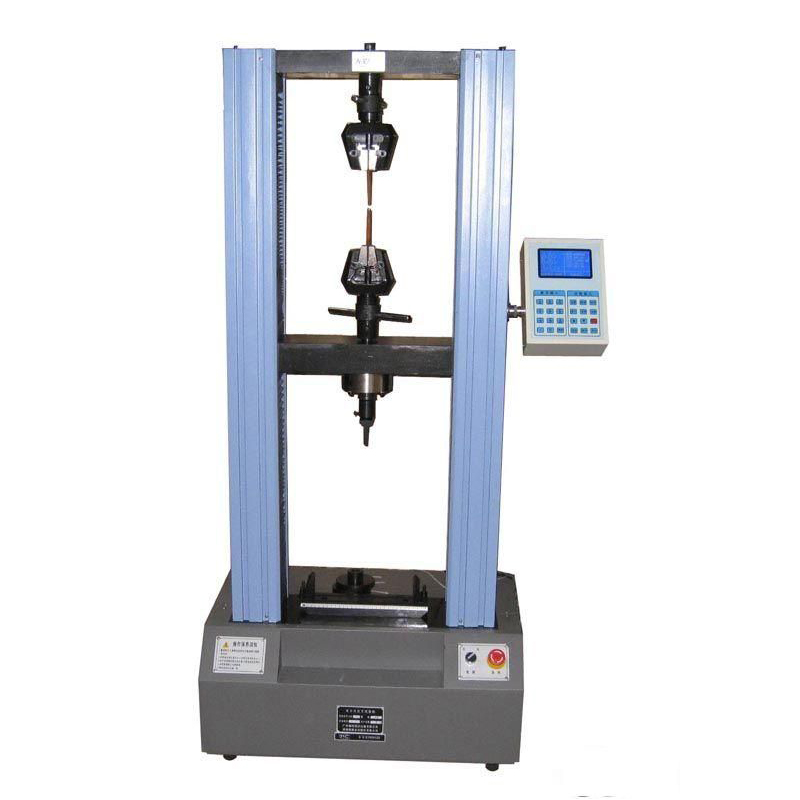

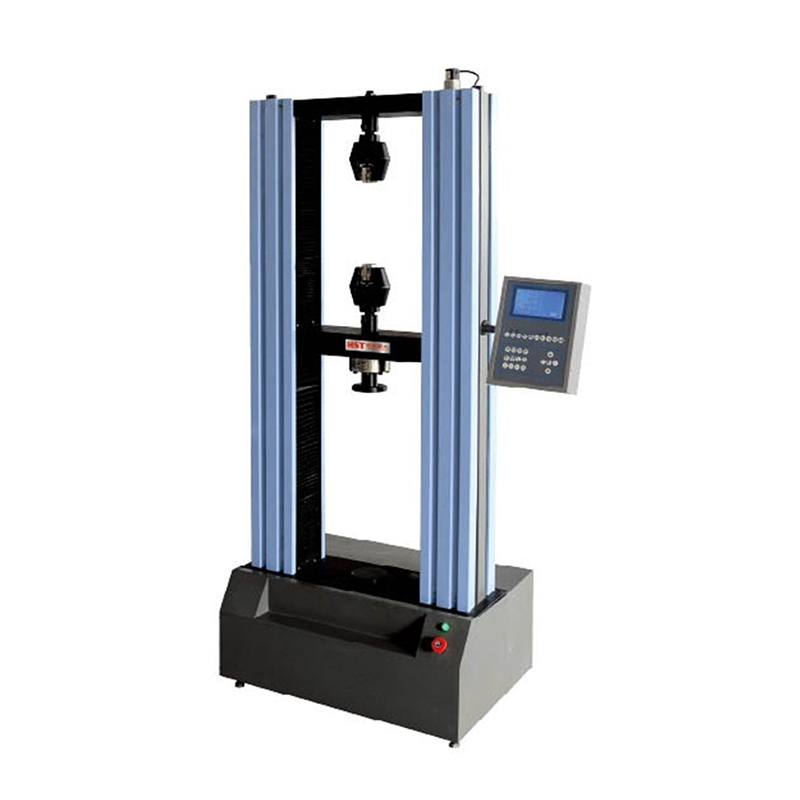

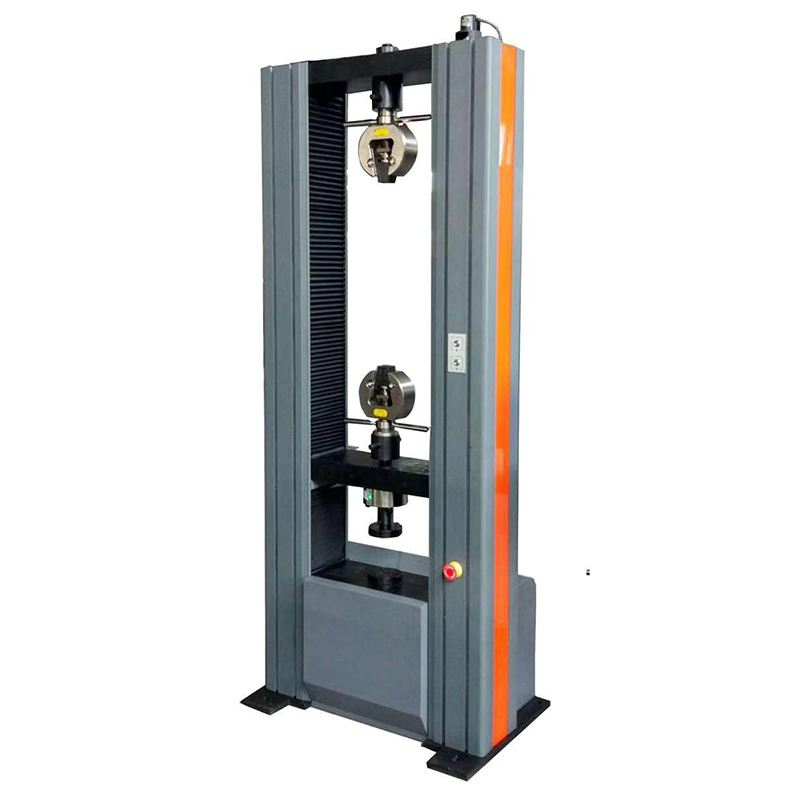

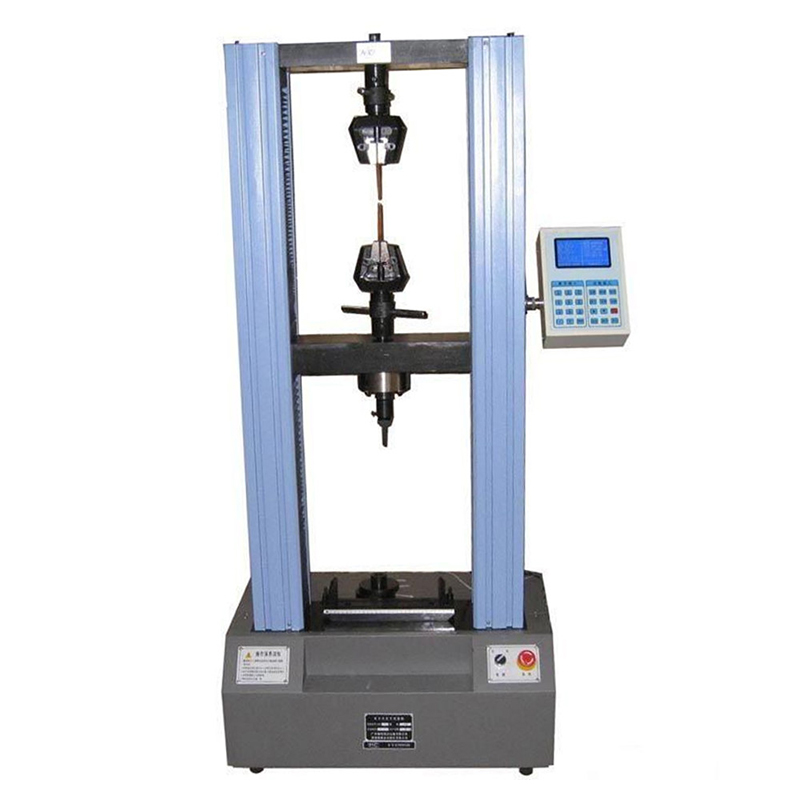

Electronic Tensile Testing Machine

Product Detail

Product Tags

Product Description

Electronic tensile tester used in tensile test for rubber, plastic, textile fabrics, waterproof material, wire&cable, braided rope, metal wire, metal rod, metal plate.If added other tools this tester can also doing compression or bending test. It has the function of digital display of test force, continuous adjustable test speed, automatic stop when the sample is pulled off, and automatic stop when the peak value is maintained.With good cost performance.

Function And Characteristic

1. To have a wide range of test speed adjustment, low noise and stable operation, this tester uses high precision all-digital speed regulation system which can actuate precision lead screw to doing the test.

2. Touch key operate,LCD real-time display, convenient and swift.

3. This tester have touch key and LCD display.

4. It can choose the microcomputer interface to control the test and to save and print the data.

Technical Parameter

Technical parameter	LDS-10	LDS-20	LDS-50	LDS-100
Max. test force	10KN	20KN	50KN	100KN
Measure range	Max. test force: 2% ~ 100%
Test force accuracy	Precede indicating value ±1%
Displacement measurement	Resolution ratio: 0.01mm
Transformation accuracy	±1%
Speed adjustable range	1 ~ 300mm/min		1 ~ 300mm/min
Tensile space	600mm(Customize）
Compression space	600mm(Customize）
Mainframe shape	Portal frame
Mainframe dimension	660 × 450 × 1700 (mm)		800 × 600 ×1800 (mm)
Weight	450 kg		600 kg	700 kg

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.
