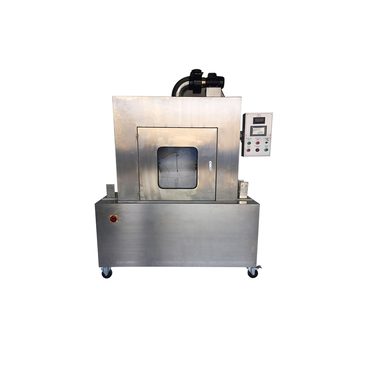

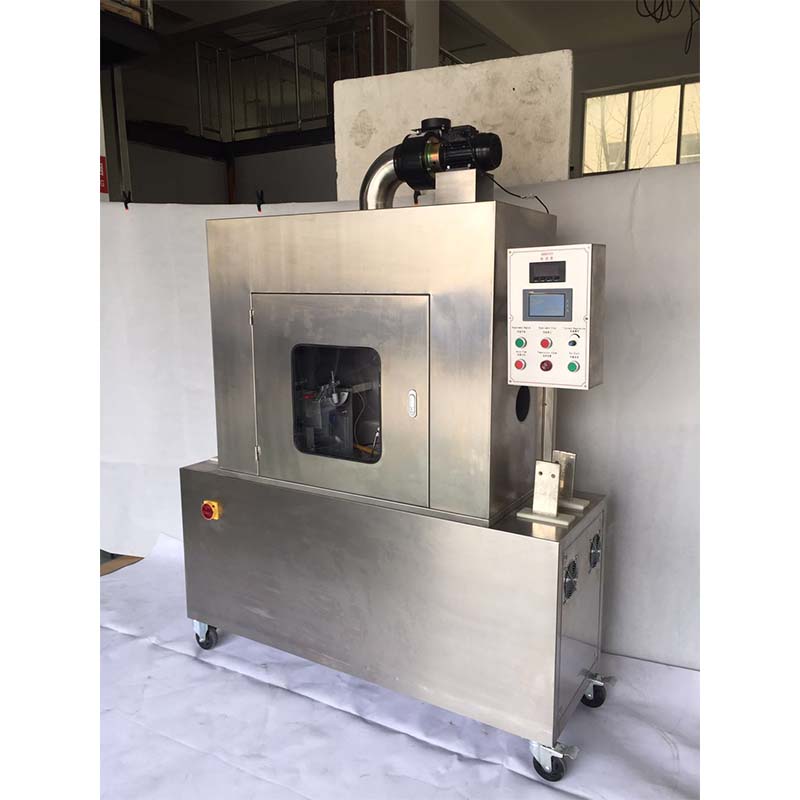

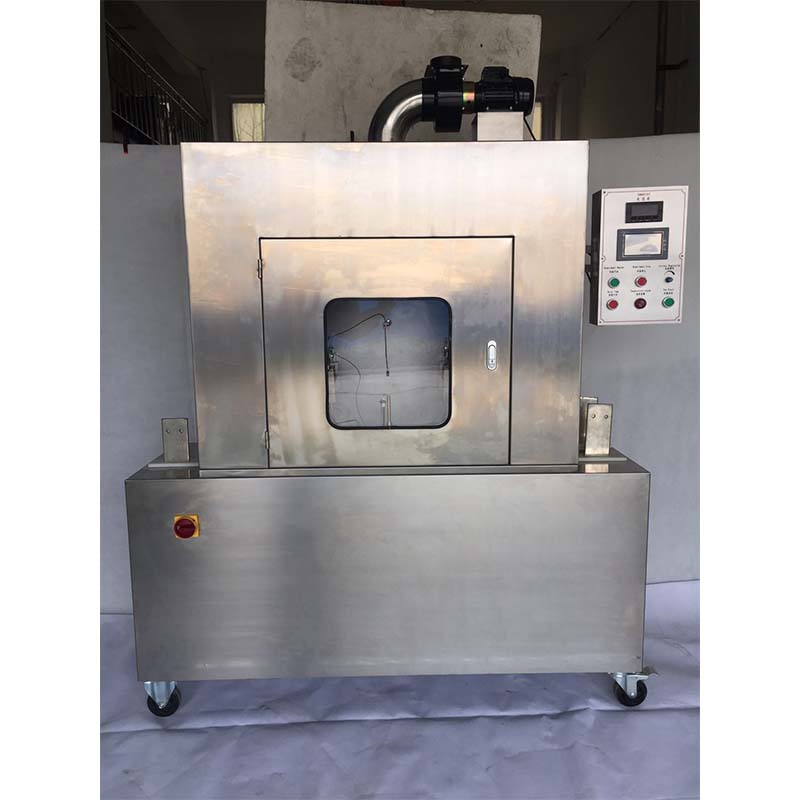

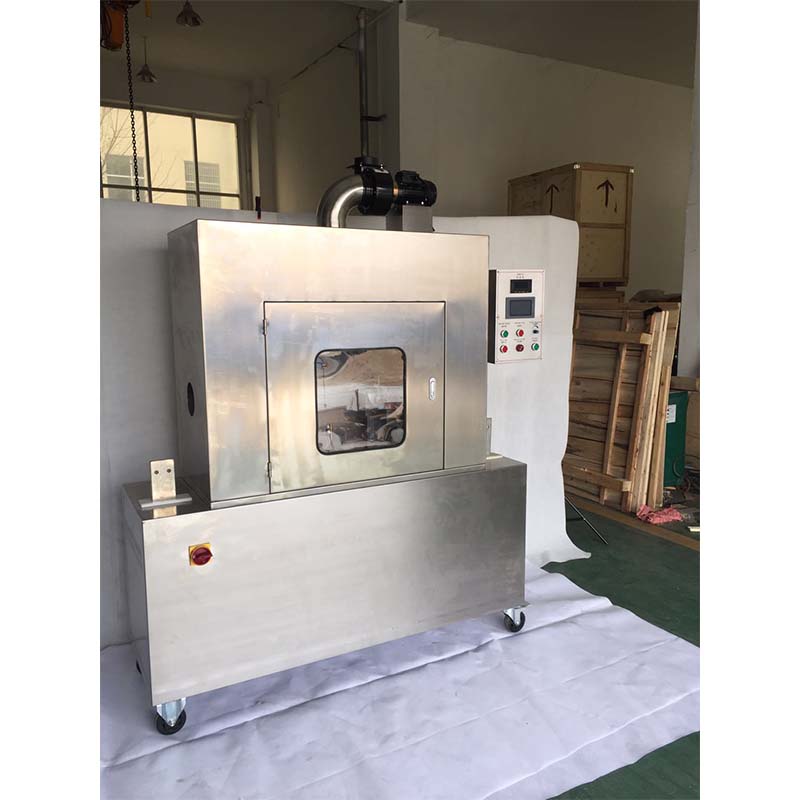

FY-3000A/5000A Cable Load Burning Tester

This machine is developed and manufactured according to the test methods and judgment rules of MT818-2009 and MT 386-2011 for flame retardancy of coal mine flame retardant cables.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

This machine is developed and manufactured according to the test methods and judgment rules of MT818-2009 and MT 386-2011 for flame retardancy of coal mine flame retardant cables.Automatic programmed control, touch screen operation, experimental results can be selectively saved, ignition sensing control safety function.The shell is made of high-quality 304 stainless steel, easy to operate and high integration.

Technical Parameter

1.Input voltage: AC 380V, 50Hz

2.Burning chamber dimensions(mm): 1100(L) x 525(W) x 900(H)

3.Overall power: 24KVA

4.Automatic adjustment after load current setting: 0 ~ 3200A, 0 ~ 5000A

5.The torch height is adjustable, the torch angle: 90 °

6.Temperature measurement range: K-type thermocouple 0 ~ 800 ℃

7.Integrated burning lamp calibration device: K-type thermocouple 0 ~ 1200 ℃

8.Temperature control meter display range: 0 ~ 1999.9 ℃

9.Timer range: 0 ~ 999.99S / M / H

10.Test volume: 0.5m³, with exhaust device

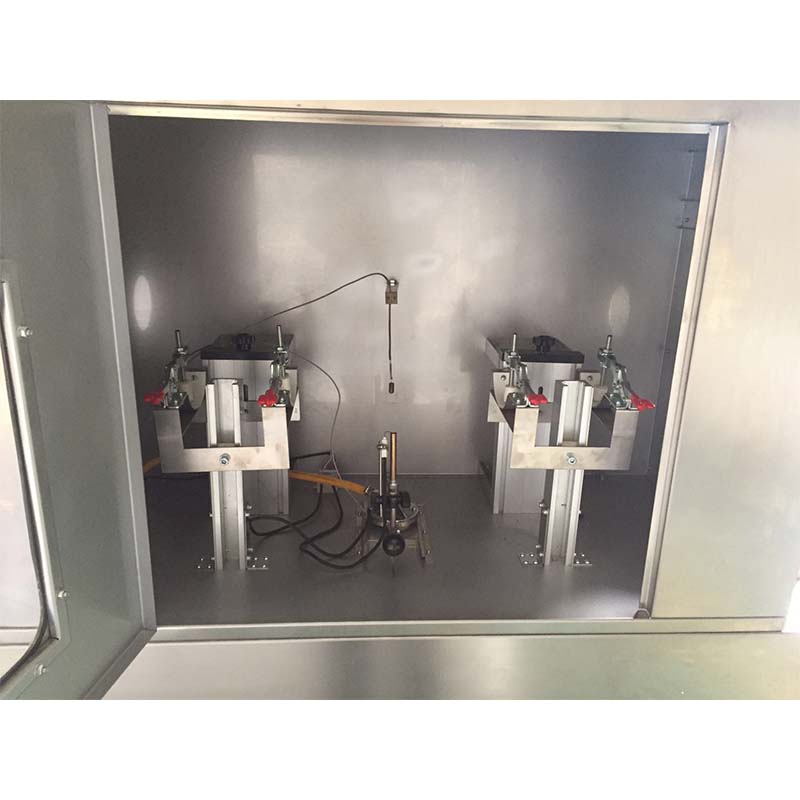

11.Adjustable cable bracket

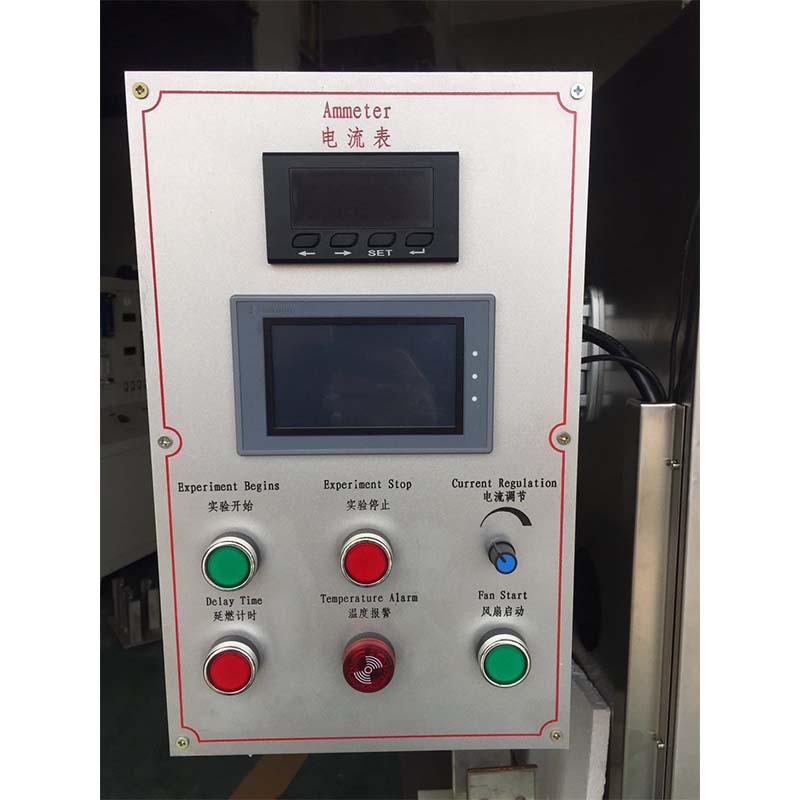

12.Full-automatic program touch screen control, all tests can be done with one button.

13.Test results can be saved selectively

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.

Q: What’s the delivery term?

A: For our standard machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.
