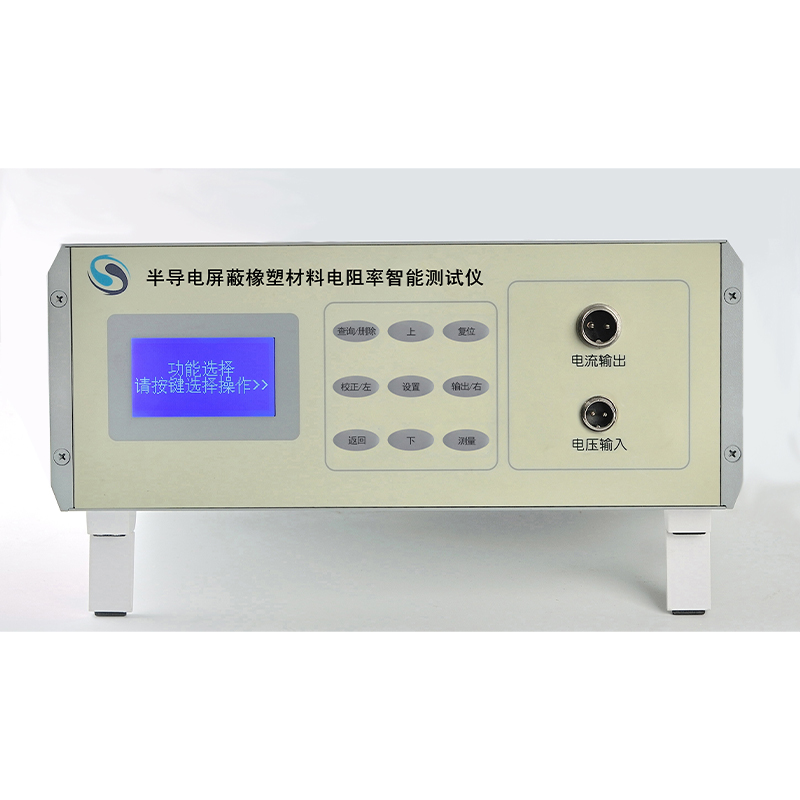

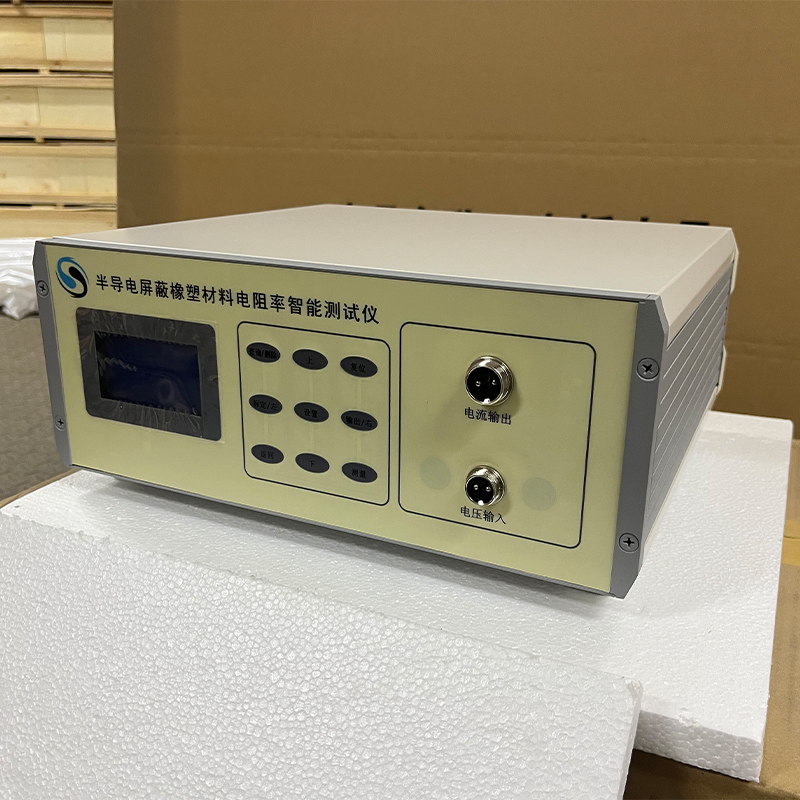

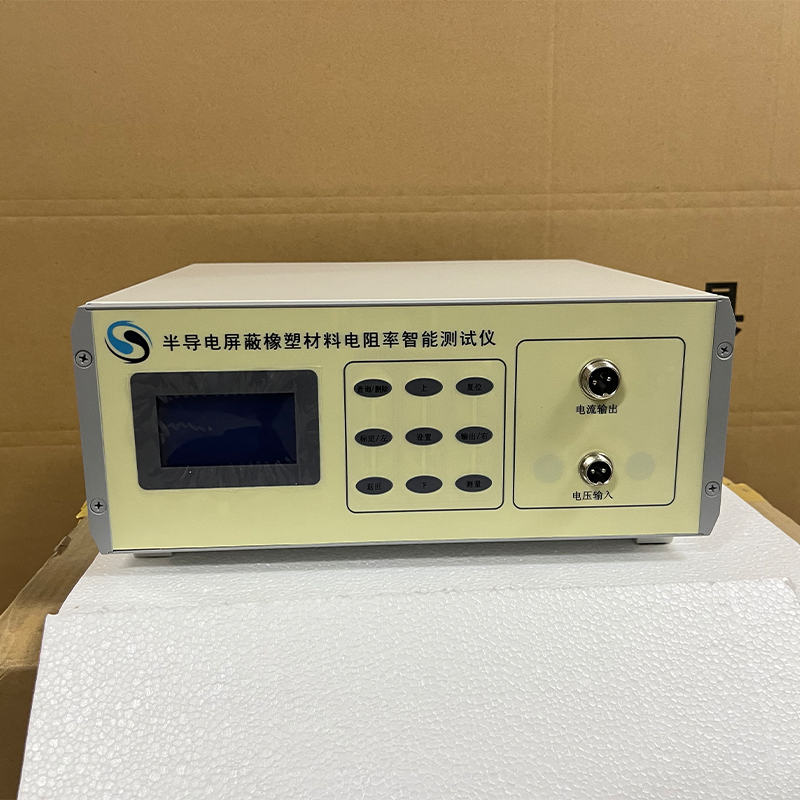

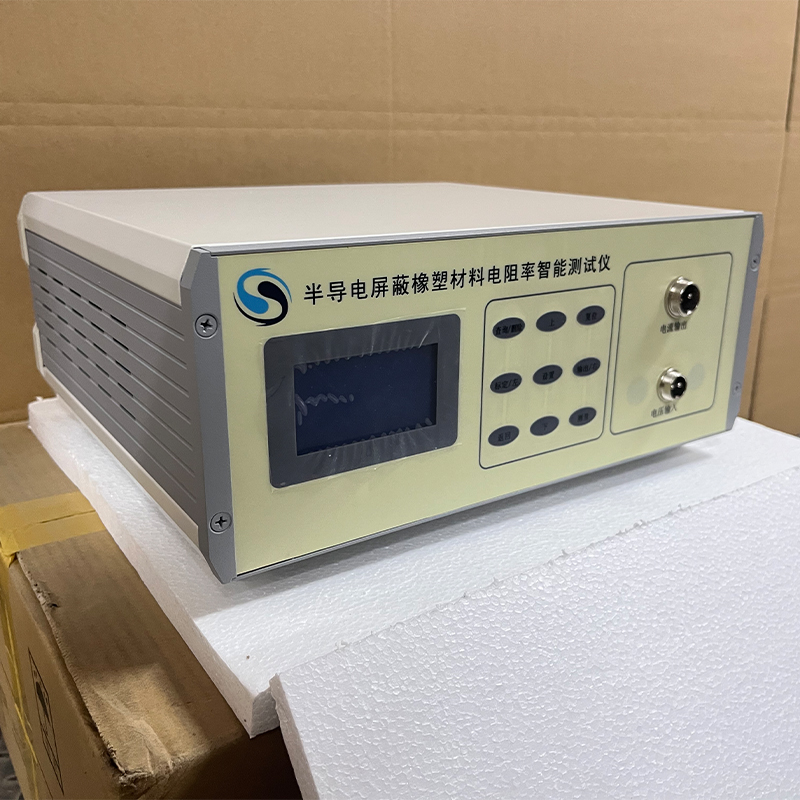

FYBD-I Semi-Conductive Shielding Rubber And Plastic Material Volume Resistivity Intelligent Tester

FYBD-I type semi-conductive shielding rubber and plastic material volume resistivity intelligent tester is a high-precision, intelligent resistance test system, which can test the semi-conductive shielding resistivity and semiconductor rubber and plastic material volume resistivity at the same time. Its main basis is IEC60468,IEC60502,IEC60840.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Features

1. The tester can realize resistance measurement with a wide range of 0.01uΩ-5MΩ and an accuracy of ± 0.05%. The resistance measurement uses a four-terminal measurement method to automatically eliminate the contact resistance error. Fourteen-level measurement gear and eleven-level measurement current are automatically converted, the appropriate gear is automatically selected, and the measurement results are automatically saved.

2. 1mΩ ~ 3MΩten-level standard resistance self-calibration to ensure the accuracy of the measurement and eliminate the worry that the traditional resistance test equipment can not be corrected due to the aging of the electronic components after using it for a period of time.

3. When used for semi-conductive shielding resistivity measurement, it can achieve an ultra-wide measurement range of 10⁶ ~ 10^-8Ω·m; when used for rubber material volume resistivity measurement, it can achieve an ultra-wide measurement range of 10⁶ ~ 10^-8Ω·cm.

4. Automatically determine the current when measuring the semi-conductive shielding resistivity, automatically determine the gear position, automatically calculate the conductor shielding resistivity and the insulation shielding resistivity; when measuring the volume resistivity of rubber and plastic materials, it can automatically time the charging, forward and reverse measurement, truly full Automatic, fully intelligent testing.

5. Automatic discharge protection to prevent the instrument from being damaged by the static impact of the human body and the sample during the wiring process.

6. The tester uses a liquid crystal display, simple operation, intelligence, high precision.

7. The measurement results are automatically saved, and 100 pieces of data can be saved. The conductor shielding, insulation shielding, and rubber-plastic volume resistivity measurement results can be queried at any time.

8.24-bit high-precision AD acquisition, high-efficiency digital filter, 8-level program-controlled signal amplification processing system.

9. Luxury aluminum case design.
