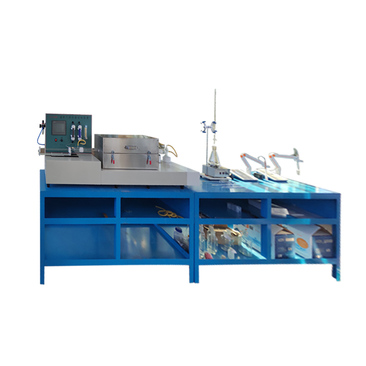

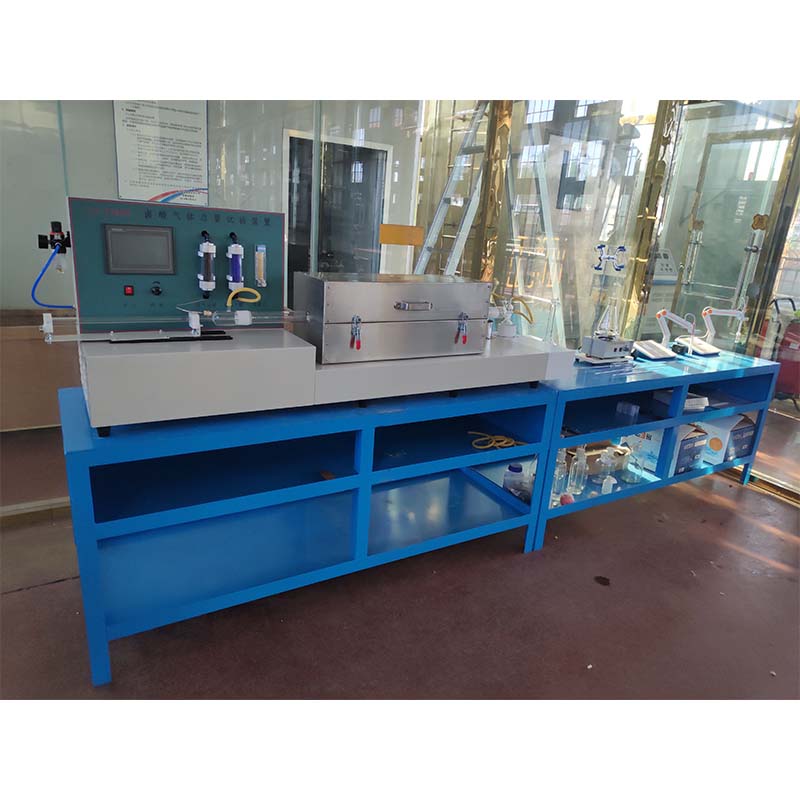

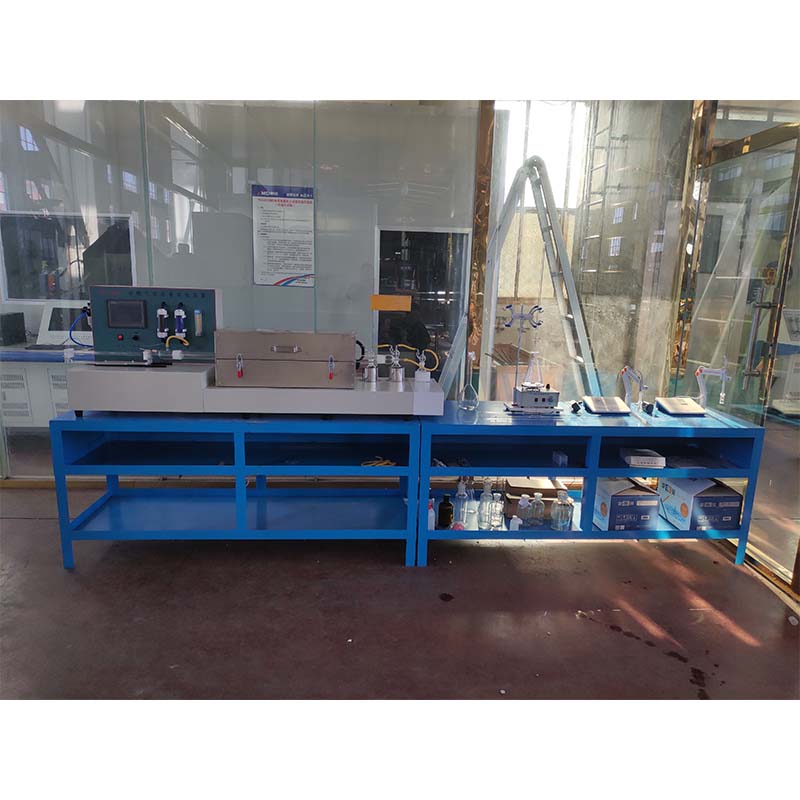

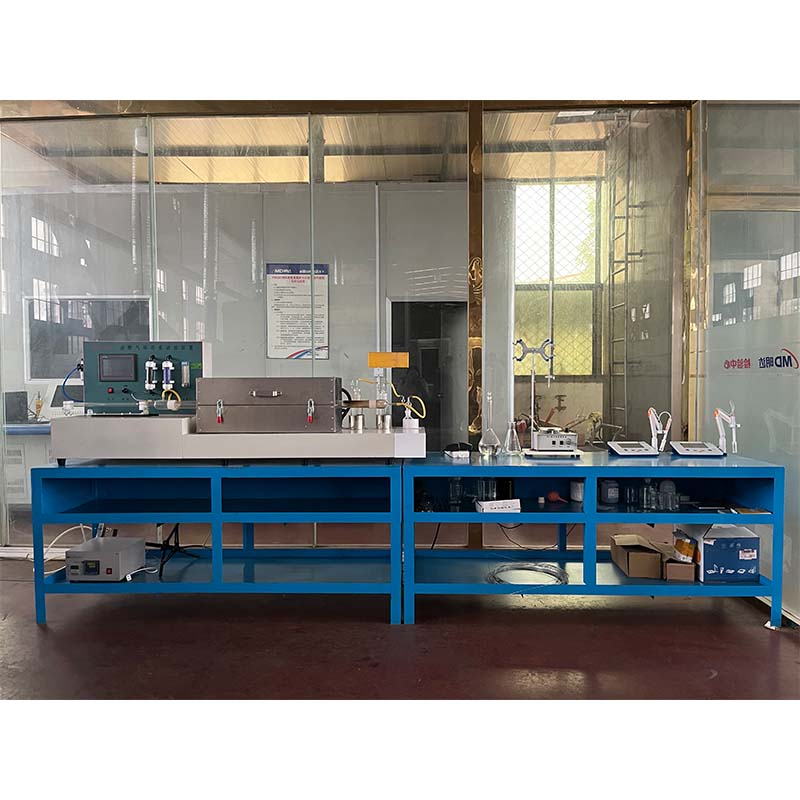

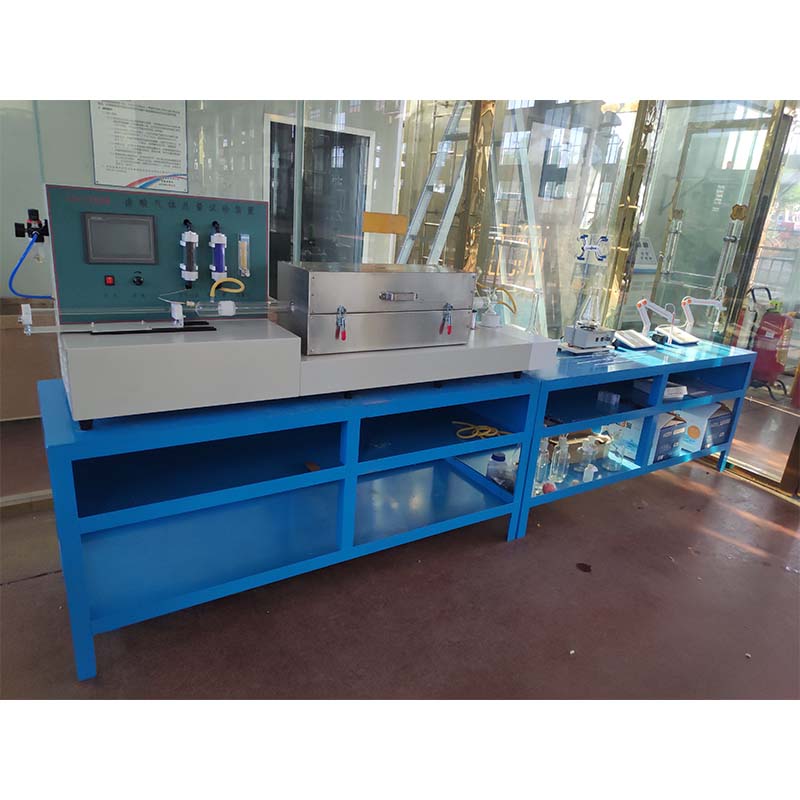

FYLS-17650 Halogen Acid Gas Release Determination Device

GB / T 17650 Test method for gas release from materials of cables or optical cables during combustion:

Part 1: Determination of total halogen acid gas

Part 2: Determination of acidity of gases by measuring pH and conductivity

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

This machine is designed and manufactured according to the following standards:

1.GB / T 17650 Test method for gas release from materials of cables or optical cables during combustion:

Part 1: Determination of total halogen acid gas

Part 2: Determination of acidity of gases by measuring pH and conductivity

2.IEC 60754-1 Ed. 2.0 b: 1994 Test for gases emitted during the combustion of cables-Part 1: Determination of the amount of hydrohalonic acid gas emitted by polymers in cables during combustion.

3.IEC 60754-2 Ed. 1.0 b: 1991 Test for exhaust gas during burning of cables-Part 2: Determination of the acidity of the exhaust gas during burning of materials in cables by measuring pH and conductivity.

Technical Parameter

1.Activated carbon (air filtration): filter the air source through the filter

2.Silica gel (air drying): device for drying air source

3.Flow meter: 1L/min, a device to control the flow of the air source

4.Thermocouple:K-type high temperature resistant stainless steel thermocouple 0 ~ 1300 ℃

5.Quartz combustion tube: ￠ 40 x 1000mm

6.Ship-shaped combustion vessel moving system:device for manually moving the ship-shaped combustion vessel.

7.Magnetic stirrer: stirrer for stirring combustion gas in distilled water

8.PH meter: a device for measuring PH

9.Conductivity meter: an instrument used to measure the conductivity of combustion gases

10.Heating furnace: ￠ 220 * 700, effective heating space ￠ 43 * 550, power 3kW

11.Accessories:500ml straight tube washing bottles(2 pieces),2L measuring glass(1 piece )

12.Dimension(mm):2000(W) x 600(D)

13.Power supply: 220V / 50Hz

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
