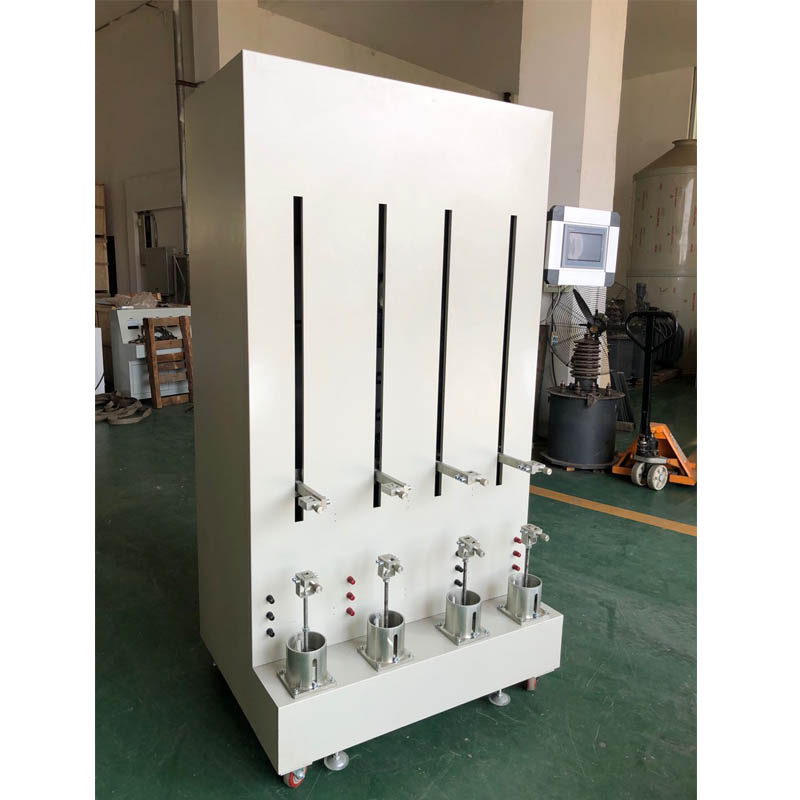

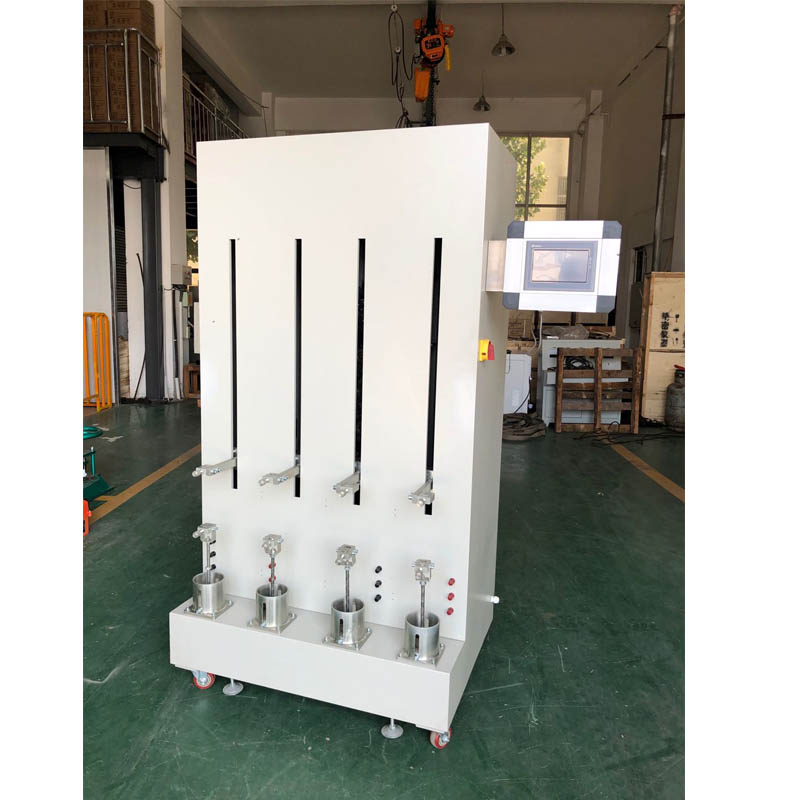

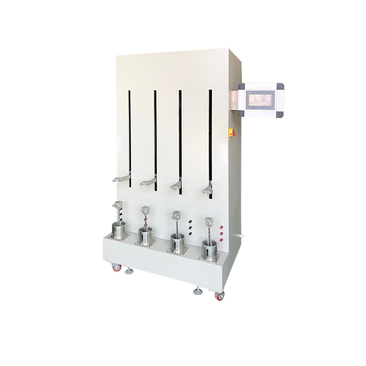

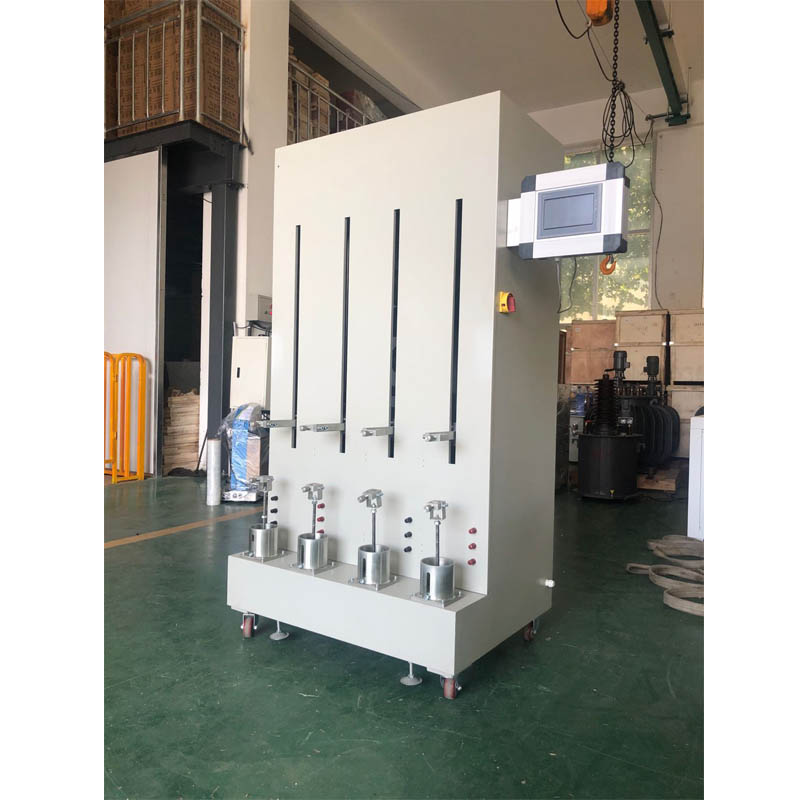

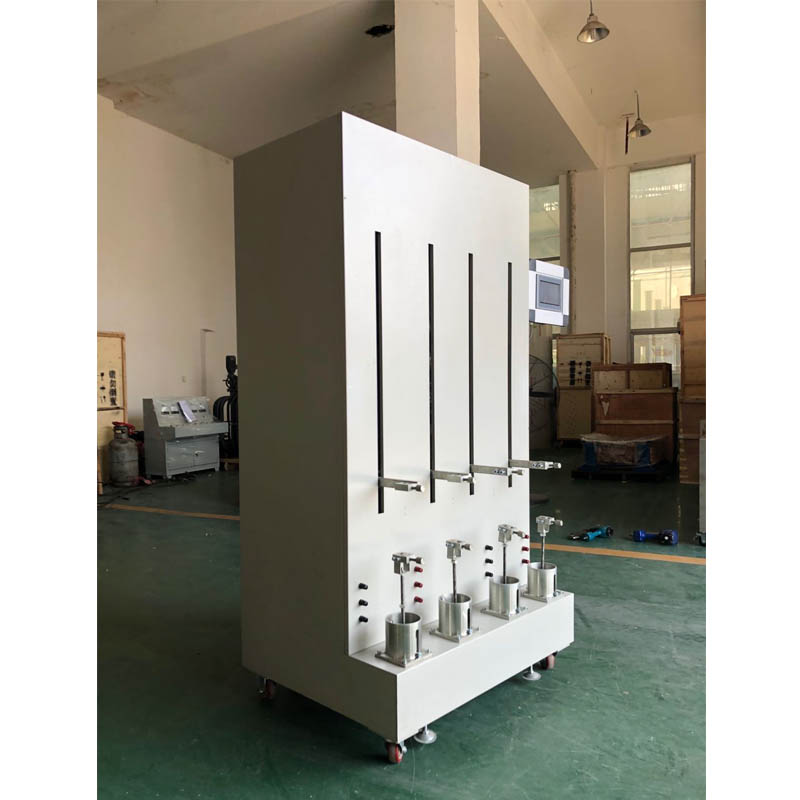

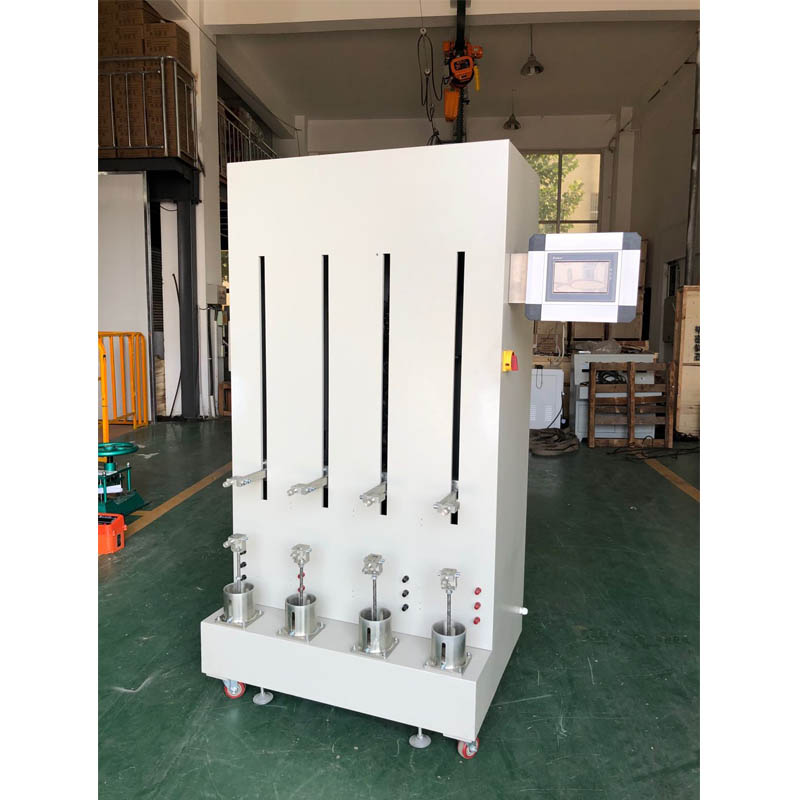

This machine is suitable for (3.5.2) test standard requirements in GT / T5013.2-2008 and IEC60245-2:2008. The whole machine has four stations and it can be used for clockwise and anticlockwise twisting at the same time, which greatly shortens the test time and improves the work efficiency.



Download as PDF
Product Detail
Product Tags

Product Description



This machine is suitable for (3.5.2) test standard requirements in GT / T5013.2-2008 and IEC60245-2:2008. The whole machine has four stations and it can be used for clockwise and anticlockwise twisting at the same time, which greatly shortens the test time and improves the work efficiency.



Technical Parameter



1. Control type: PLC+HMI

2. Test station:4

3. Twisting distance:800mm

4. Weights:(5N、10N、20N、30N)*4

5. Test current :6 ~ 16A

6. Clamping range:3x1.5mm²sheathed flexible cord and the following flexible wires

7. Motor Power:0.75kw in three-phase

8. Dimension(mm):1400(L) x 800(W) x 1900(H)

9. Working voltage:380V/50Hz

10.Weight:350kg
