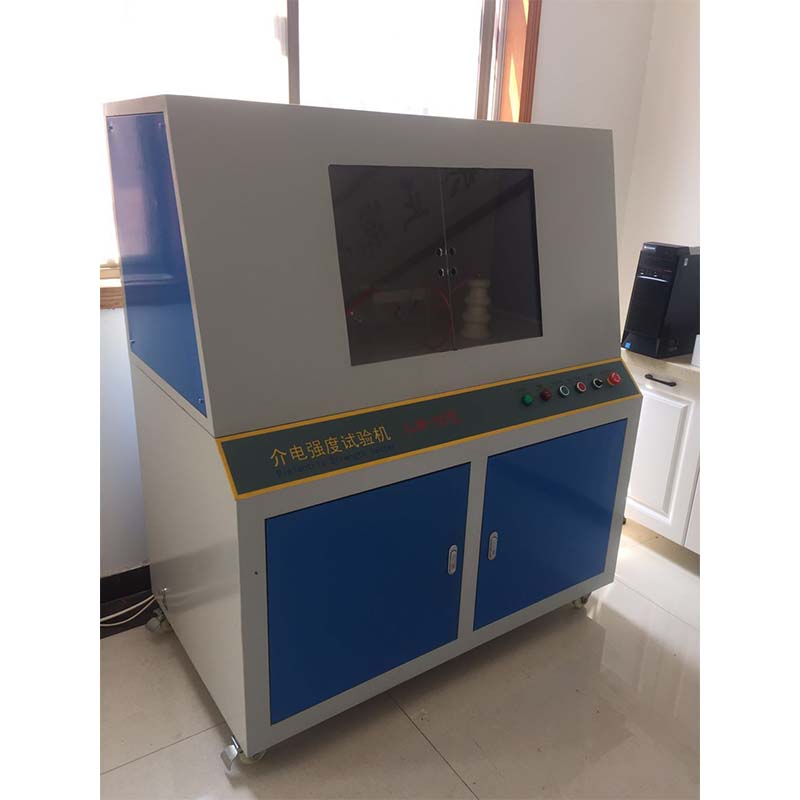

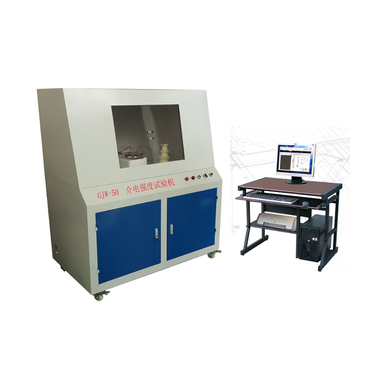

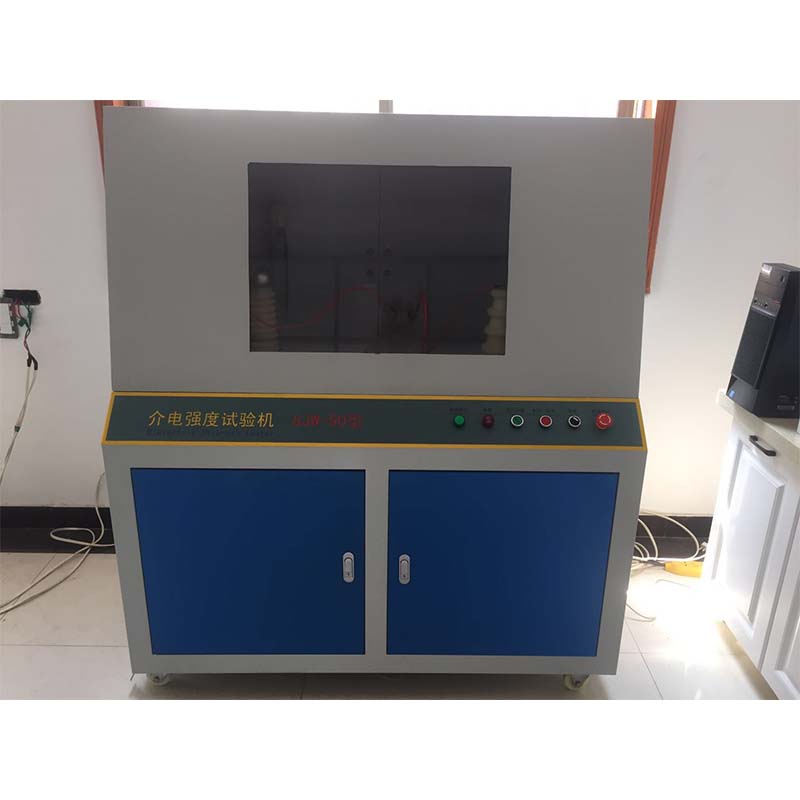

GJW-50 Microcomputer-Controlled Voltage Breakdown (Dielectric Strength) Tester

Product Detail

Product Tags

Product Description

This machine meets the requirements of IEC60243, IEC554-2, IEC243-1 standards.It is mainly suitable for testing the breakdown strength and withstand voltage time of solid insulation materials such as plastic, film, resin, mica, ceramics, glass, insulating paint and other media under power frequency voltage or DC voltage.This machine is controlled by computer, which can quickly and accurately collect and process the data during the test, and can access, display and print.

Technical Parameter

Input voltage: AC 220 V
2. Output voltage: AC 0 ~ 50 kv, DC 0 ~ 50 kv
3. Electrical capacity: 6 KVA
4. Breakdown voltage boosting rate:can be set arbitrarily
5. The overcurrent protection device: cut off the power supply within 0.1s when the sample breaks down.
6. Leakage current selection: 1 ~ 100 mA (can be set freely)
7. Support short-term short-circuit test requirements (other similar products do not have this function)
8. One test can make 3 ~ 5 samples at the same time (other similar products can only make one sample at a time)
9. Voltage measurement error: ≤ 2%
10. Test voltage is continuously adjustable: 0 ~ 50 kv
11. Withstand voltage time setting: 0 ~ 6 hours
Experiment Method

1.Test in air

2.Test by immersion in oil

Configuration

1.Machine

2.Test electrode: two ¢ 25 + one ¢ 75

3.Two acrylic oil boxes

4.A set of test software

5.A computer

6.A printer (HP)

Note: Can be produced according to user requirements
