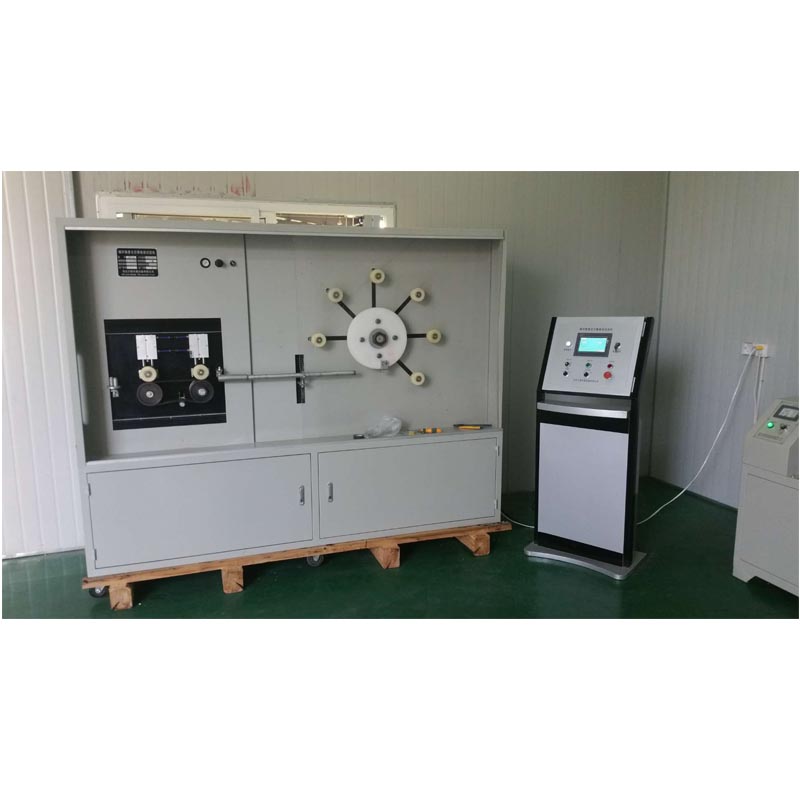

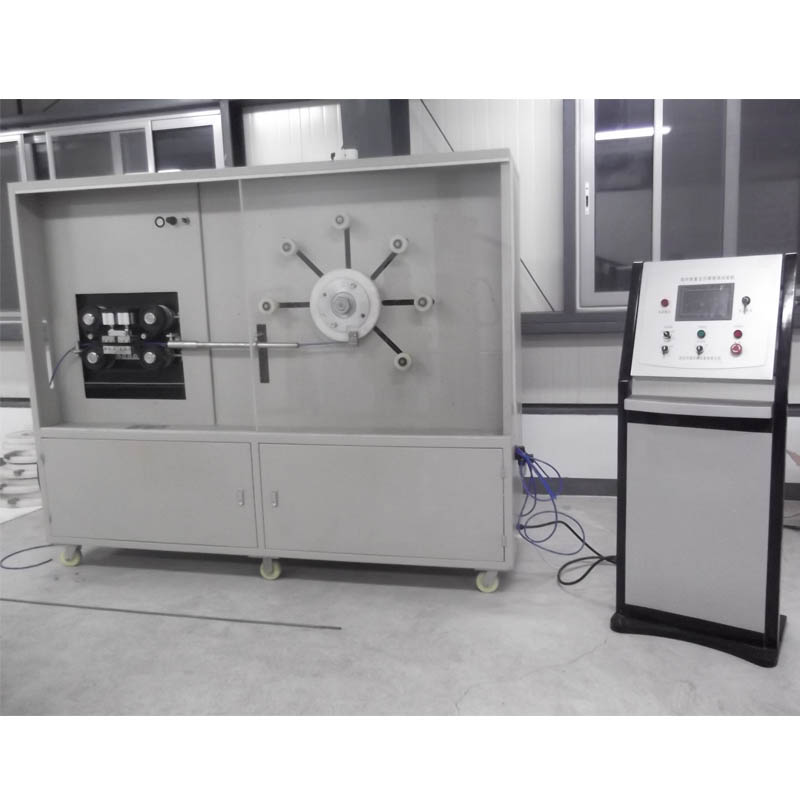

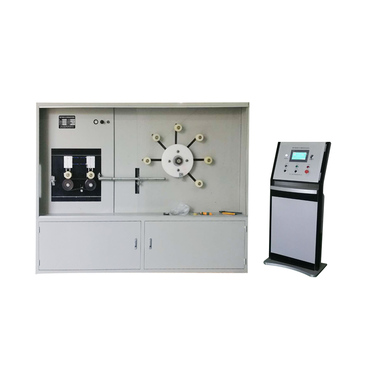

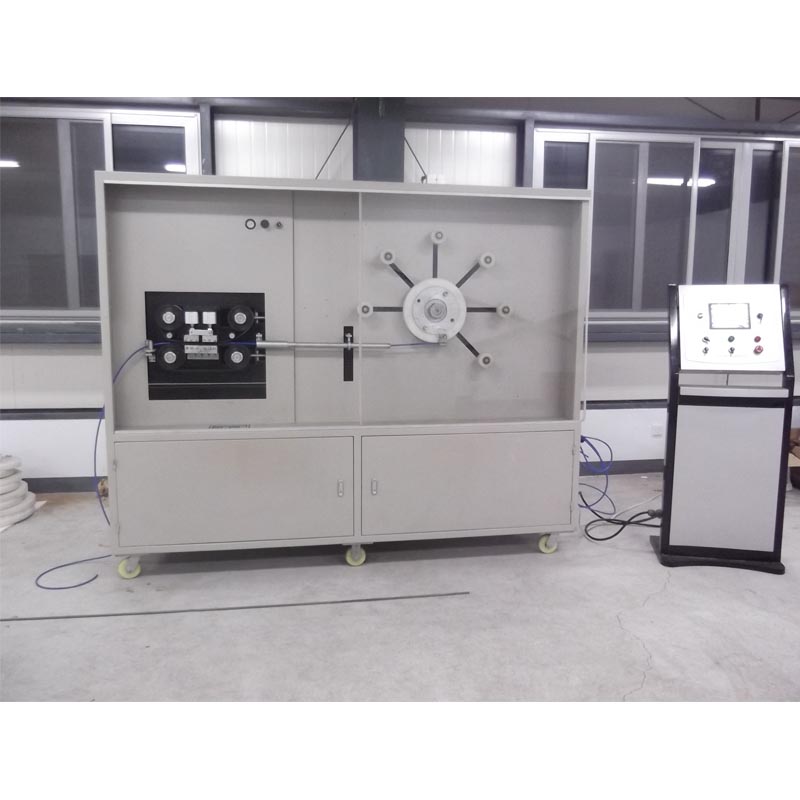

JRT-6 Carbon Fiber Composite Mandrel Winding Test Machine

This machine is suitable for winding characteristic test of fiber reinforced resin matrix composite mandrel.It is composed of the main box, mechanical transmission part, PLC electrical intelligent control part, winding wheel, protective cover, damping device assembly, guide tube, etc.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Technical Parameter

1.Working power supply: 220V/50Hz

2.Winding speed: 1 ~ 5 r/min(adjustable)

3.Number of winding turns: 1 turn

4.Diameter accuracy of winding wheel:±0.5mm

5.Damping system loading strength: 0 ~ 137kg

6.Maximum torque of damping system: 190Nm

7.Large touch screen operation + PLC program control

8.Non-metallic materials are used in the contact part of the damping system,pneumatic loading, pneumatic tensioning, damping electronically controlled rolling output.

10.Pneumatic pressure: 0.4 ~ 0.7MPa

11.Each set of 13 winding wheels,combined structure, high-strength engineering plastics, light weight, easy replacement and durability.

12.Winding diameter: 50D

13.Removable acrylic protective cover with good transparency and high strength

14.Dimensions(mm): 2400(L) x 750(W) x 1900(H)

15.Weight (including winding wheel):800kg

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.

Q: What’s the delivery term?

A: For our standard machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.
