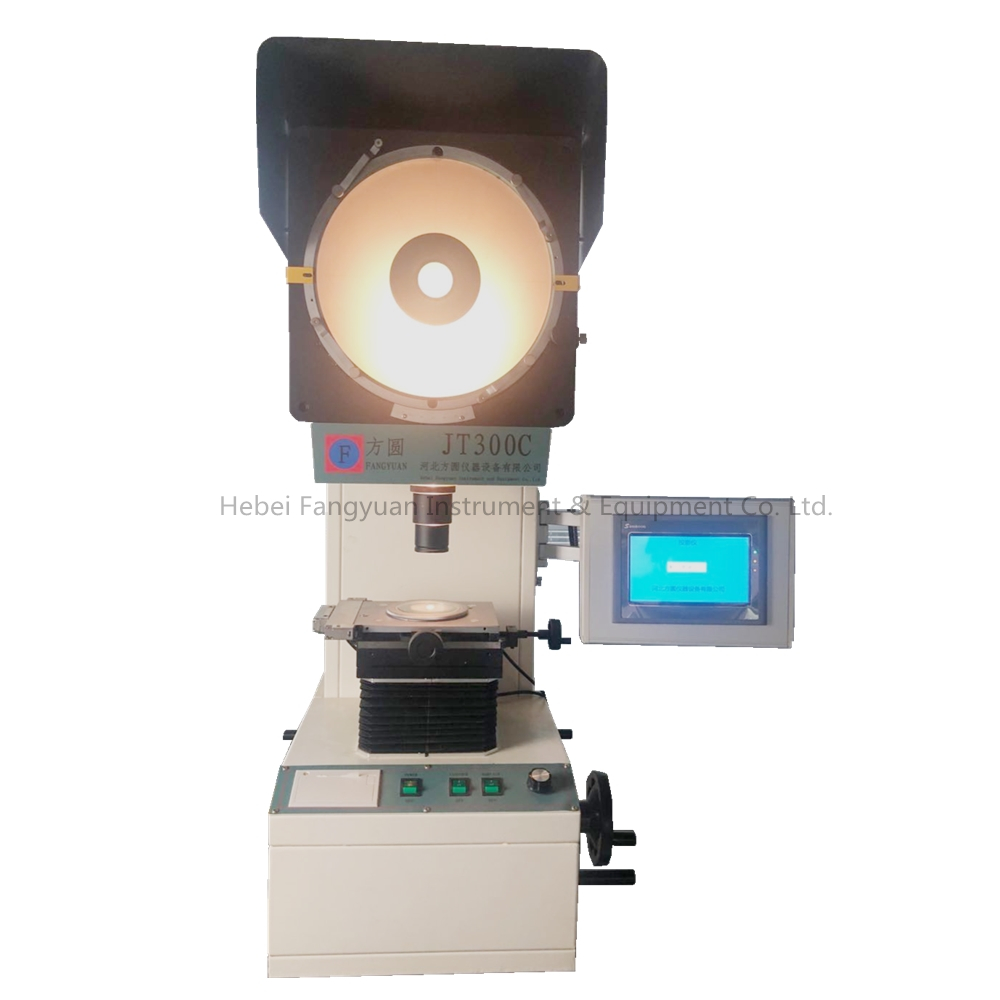

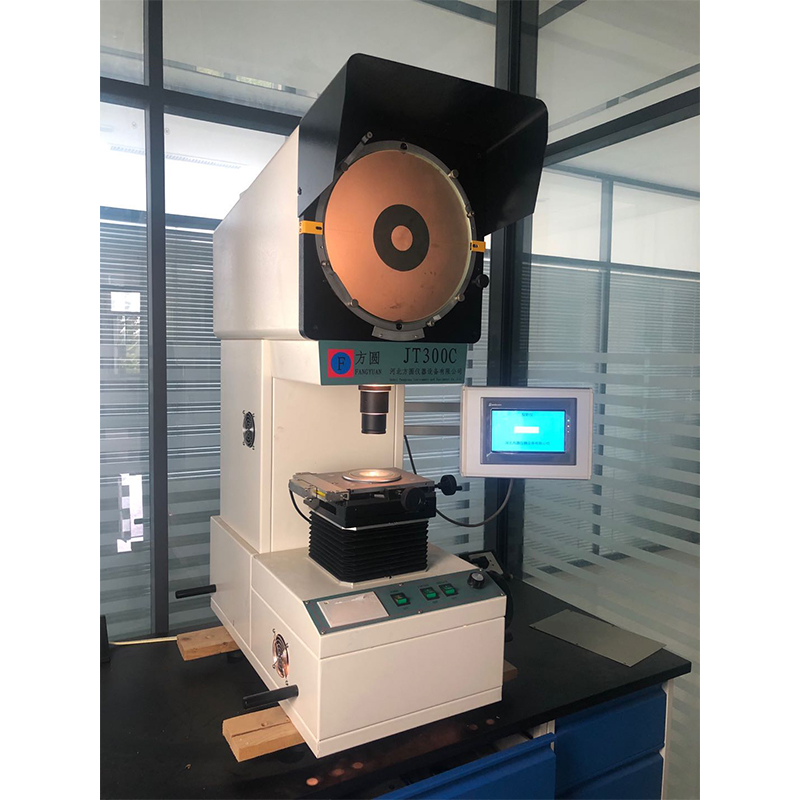

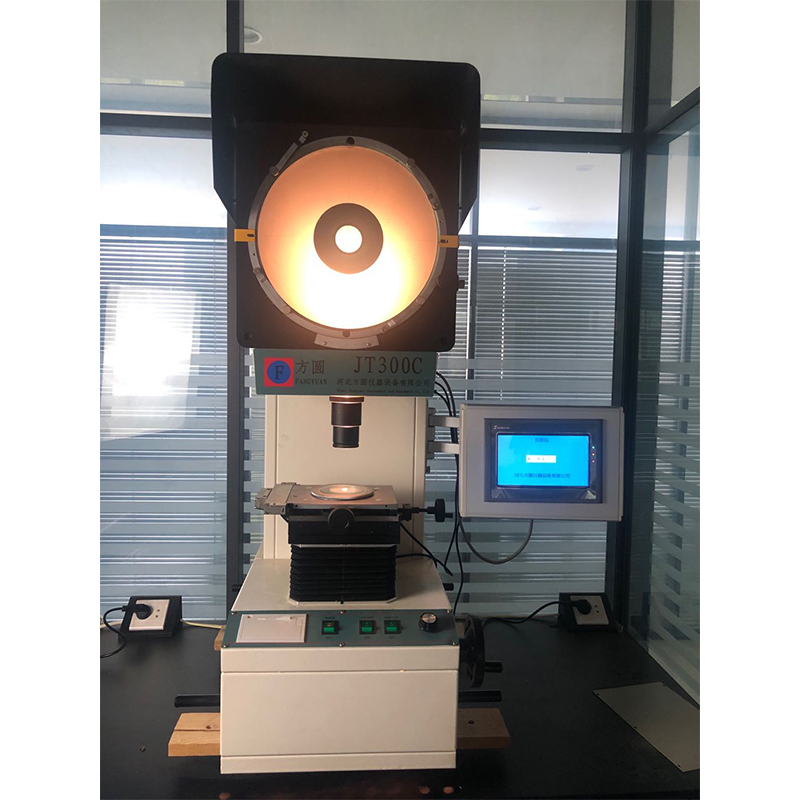

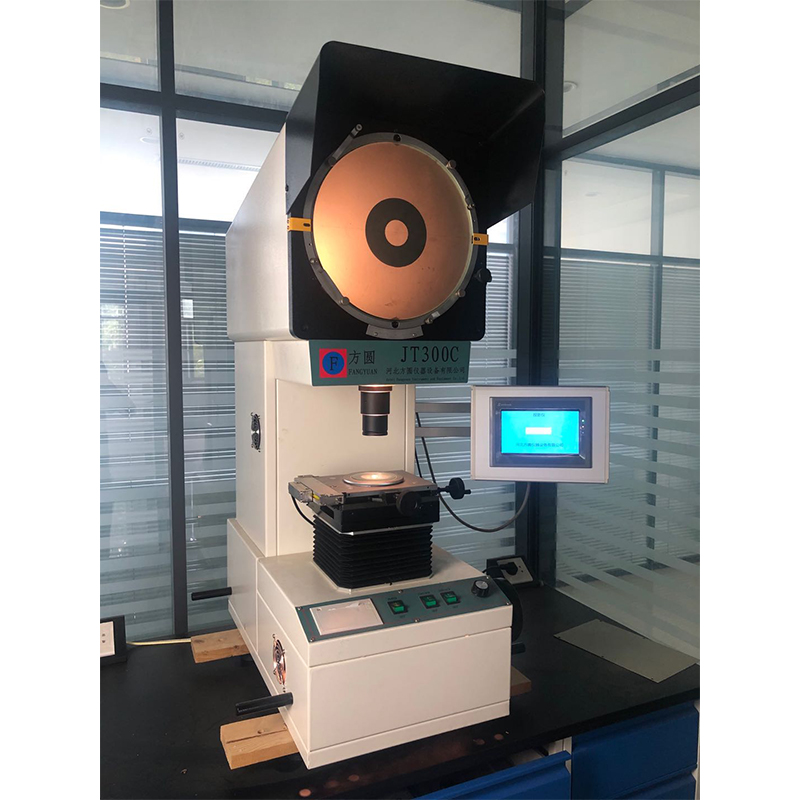

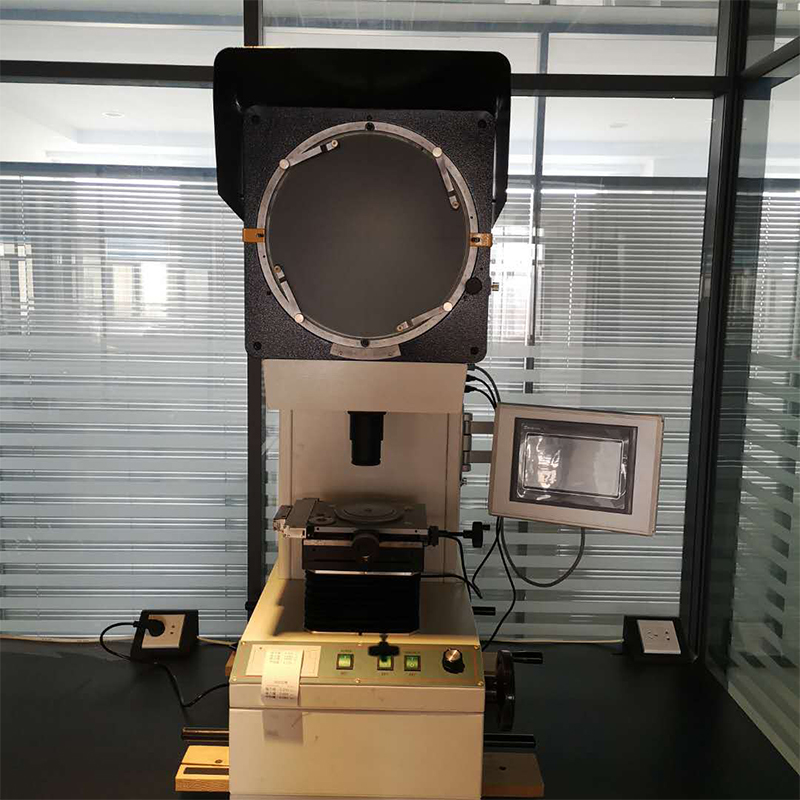

JT300C Digital Optical Measurement Projector

This type of contour projector is a precise and efficient optical measuring instrument integrating light, electricity and machine. It is widely used in machinery, instrumentation, electronics, cables, rubber, plastic packaging, bearings and other industries, as well as research laboratories, laboratories and laboratories of metrology and appraisal departments.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

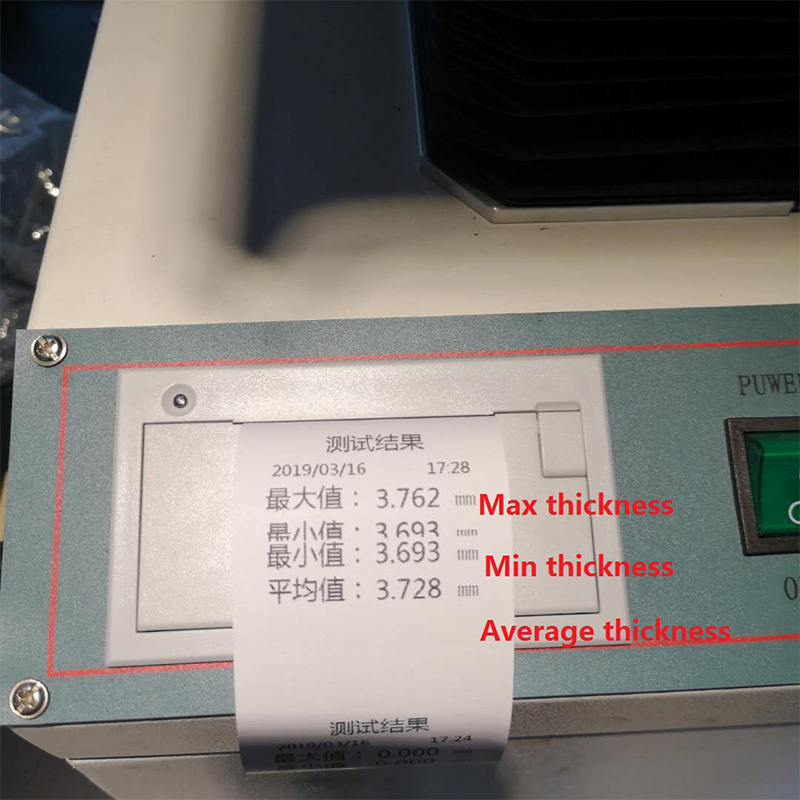

This instrument can efficiently detect the contour size and surface shape of various complex shapes of workpieces. Automatic calculation results (thinnest point, thickest point, average thickness), with printing function.

Technical Parameter

1. Projection dimension: ￠308mm

Projection screen rotation range:0 ~ 360

Rotation angle vernier : 2′

2. Objective:

Magnification:10×(essential)20×(adjustable)

Object line of view (mm): ￠ 30

Object side working distance (mm): 85.17

Reflect style: external reflection external reflection internal reflectioninternal reflection

3. Working table:

X-axis travel (mm):50 Micrometer accuracy (mm):0.01

Y-axis travel (mm):50 Micrometer accuracy (mm):0.01

The glass table’s rotation range:0-360°

4. Focusing range:70mm

5. Illumination: 24V,150W halogen tungsten lamp

6. Type of cooling:air cooling (3 axial flow fans)

7.Power supply:220V(AC),50/60Hz

8. Working platform: 92mm

9. Dimensions(mm): 730(L) x 400(W) x 1120(H)

10. The data of 6 points of manual measurement are saved, and the instrument automatically calculates and displays the thinnest value, thickest value and average value

11. The micro printer prints the results
