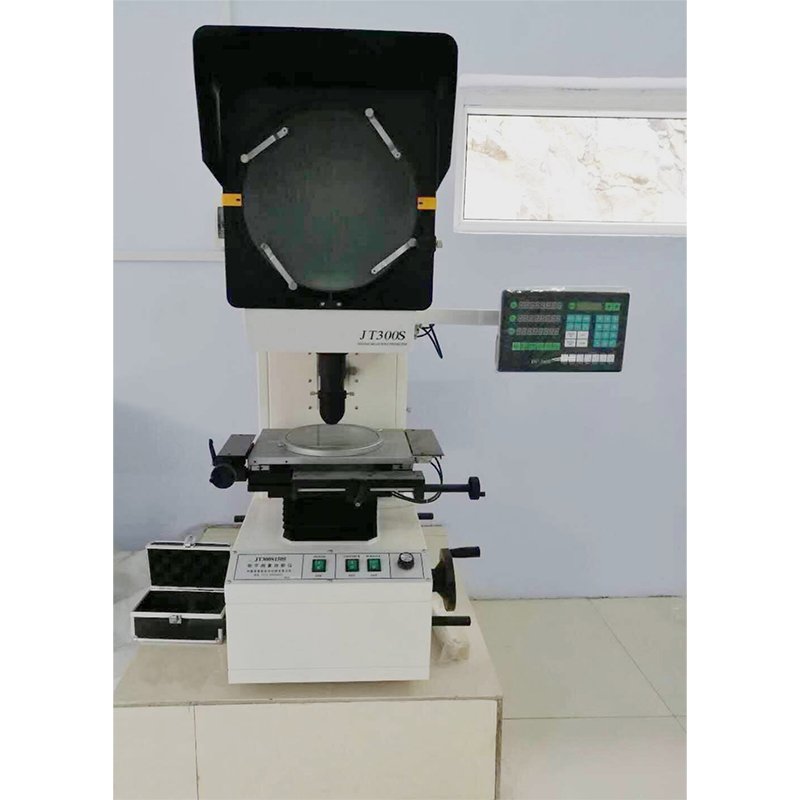

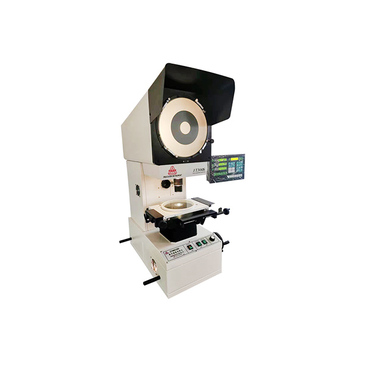

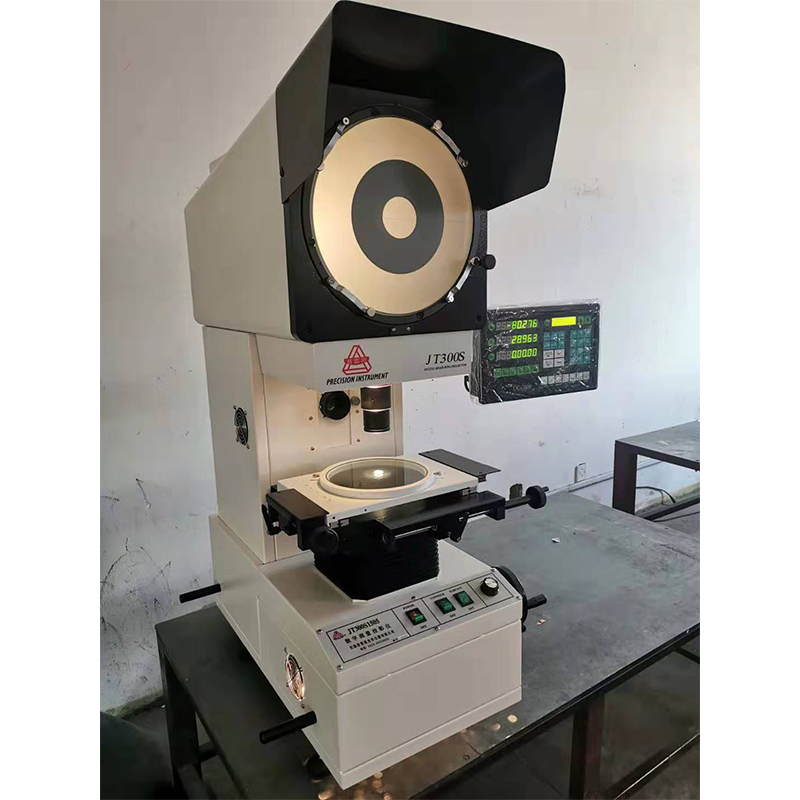

JT300S Digital Optical Measurement Projector

Product Detail

Product Tags

Product Description

The instrument can efficiently detect the contours and surface shapes of various complex shapes of workpieces.For example: templates, stamping parts, cams, gears, forming cutters, taps and other tools, tools and parts.It is widely used at the field of mechanism, instrument, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on.This instrument is widely used in the machinery manufacturing, instrumentation, meter and watch industry and other related factories and mining measurement rooms and workshops.

Technical Parameter

1.Projection screen

Dimension(mm): φ308

Projection screen rotation range: 0-360°

Min. Rotation angle: 1′

Rotation angle accuracy: 4′

2.Working table:

Dimension(mm): 320 x 220

X-axis travel(mm): 0～150 Display accuracy: 0.001mm

Y-axis travel(mm): 0～50(focusing)

Focusing travel(mm): 0～75 Display accuracy: 0.001mm

X,Y coordinate indicating value accuracy: (3+L/75)μm，(L is Measured length , unit is mm)

3.Objective lens:

Magnification: 10 x (standard configuration) 20 x (Optional) 50 x (Optional) 100 x (Optional)

Object view: φ35mm φ17.5mm φ7mm φ3.5mm

Object Working distance: 88.376mm 81.375mm 54mm 44.9mm

Magnification error: 0.08%

4.Lighting source

Lighting source: 24V 150W halogen tungsten lamp

Indirect illumination: 24V 150W halogen tungsten lamp

5.Boundary dimension(mm): 687(L) x 443(W) x 942(H)

6.Working table Max. load bearing: 15kg

7.Weight: 150kg
