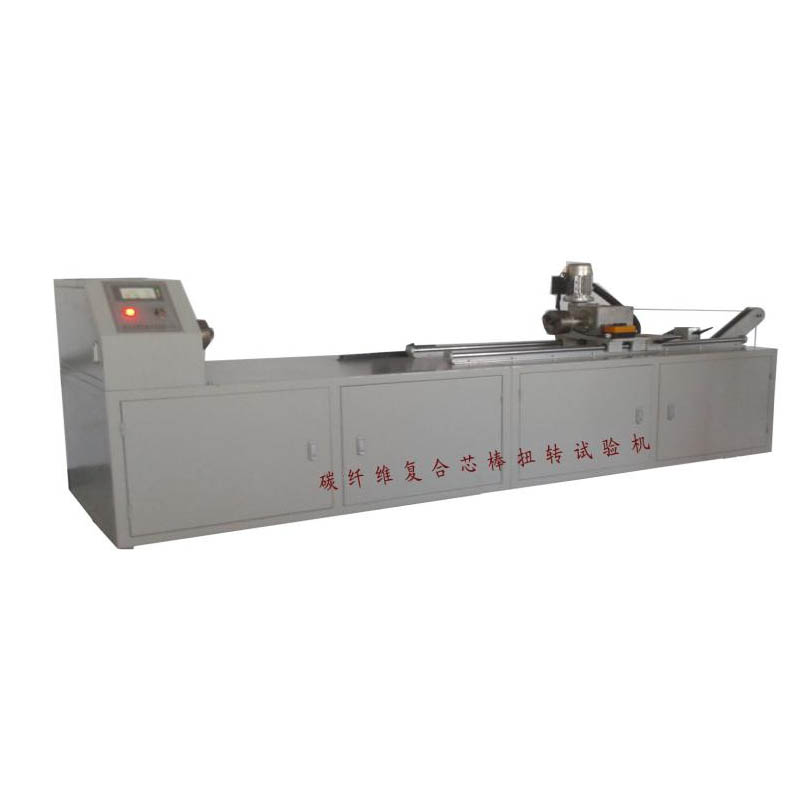

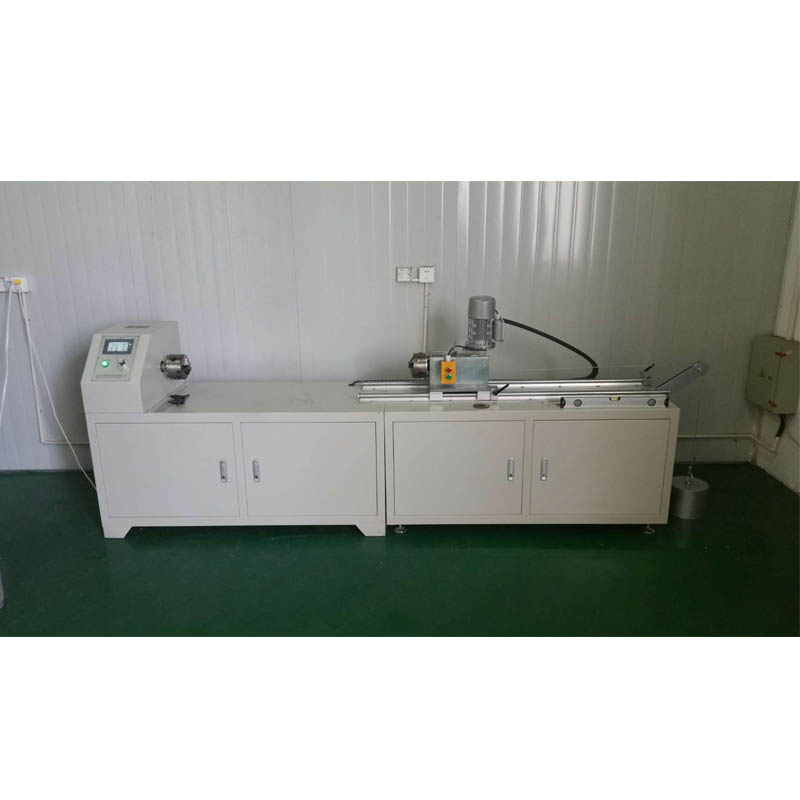

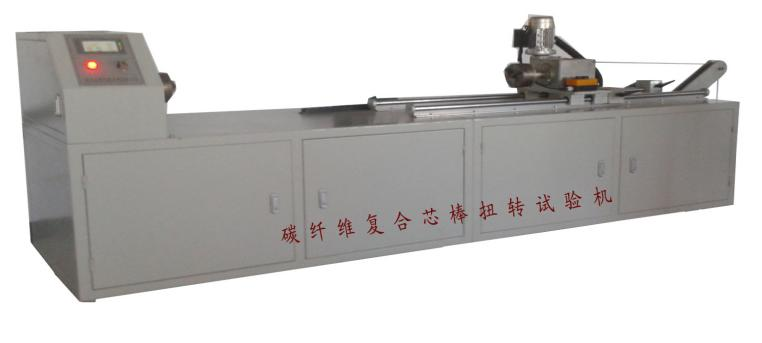

NJT-50 Carbon Fiber Composite Mandrel Torsion Test Machine

This machine is designed and produced according to GB/T 29324-2012 "fiber reinforced resin matrix composite mandrel for overhead conductors", which is suitable for testing the torsional characteristics of fiber reinforced resin matrix composite mandrel.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Main Structure And Working Principle

1.The whole machine adopts steel structure, and the surface is treated by electrostatic spraying.

2.The tailstock adopts linear guide structure, flexible and light, and the operating range is 850 ~ 1900mm

3.The load of the balance weight adopts the electric winding scalable design.

4.The motor adopts stepping speed regulating motor. The torsion speed is adjustable at 1 ~ 5 r/min (the rotation speed is set to 2 r/min when leaving the factory).If there is no special requirement, the rotation speed generally does not need to be adjusted.The twist angle can be set arbitrarily on the touch screen.According to different samples can set the corresponding parameters for testing.

5.Torque value collection: During the test, the torque value consumed by each twisted sample is displayed in real time, and the peak value is finally recorded.

6.Control part:PLC control, 4.3-inch touch screen operation, twist angle can be set arbitrarily on the touch screen as needed.

7.Tool for holding the specimen: three-jaw chuck.

8.Steel counterweight:40kg

Technical Parameter

1.Working power: 220V / 50Hz

2.Torsion speed: 2 r/min (adjustable)

3.Torsion angle: adjustable

4.Torque measurement range: 0 ~ 50Nm

5.Meet the test length range: 850 ~ 1900mm

6.Steel counterweight: 40kg±0.5kg

7.Dimension:3300(L) x 600(W) x 1100(H)

Composition

1.Host

2.Control section

3.Mechanical transmission part

4.Counterweight and telescopic part

5.Torque measuring system

6.Stroke sliding part

7.Tools
