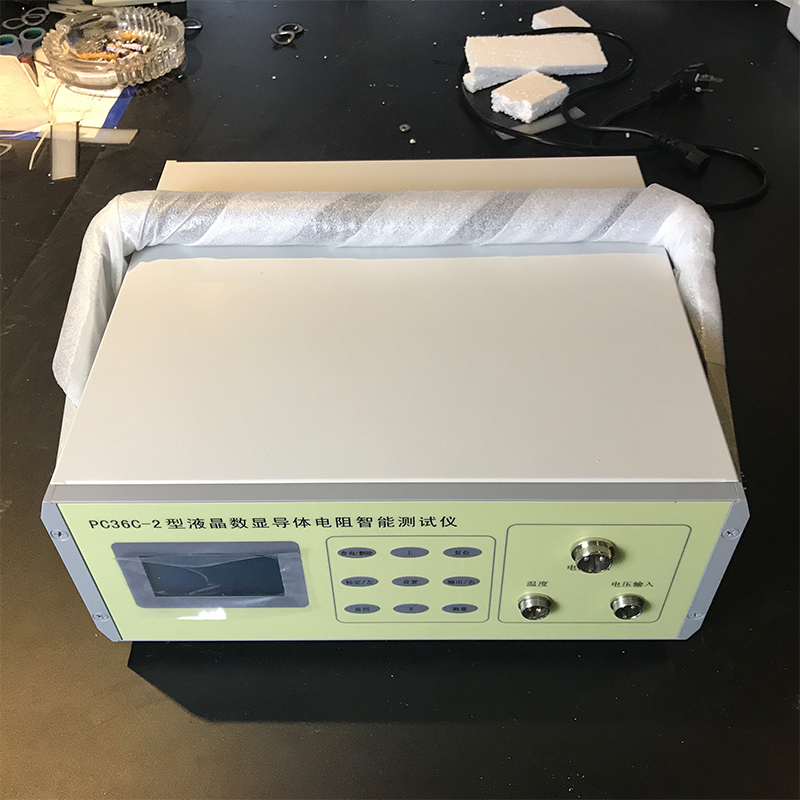

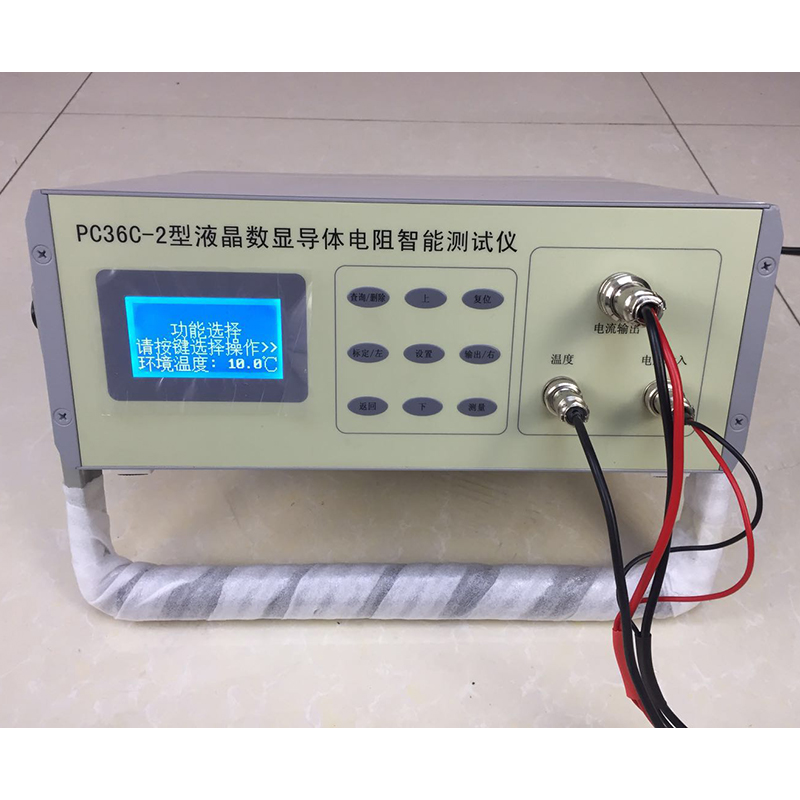

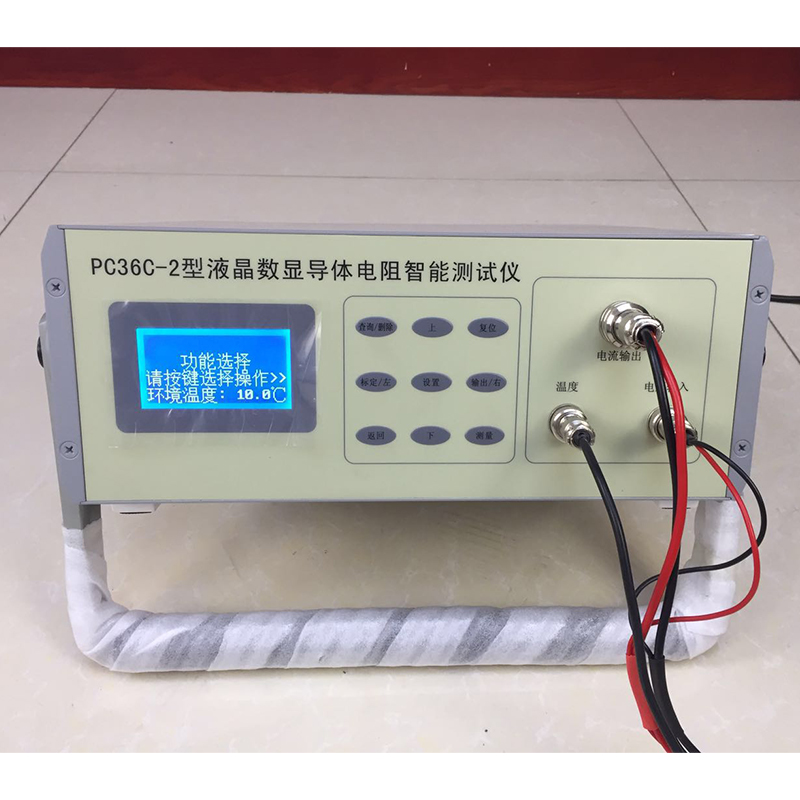

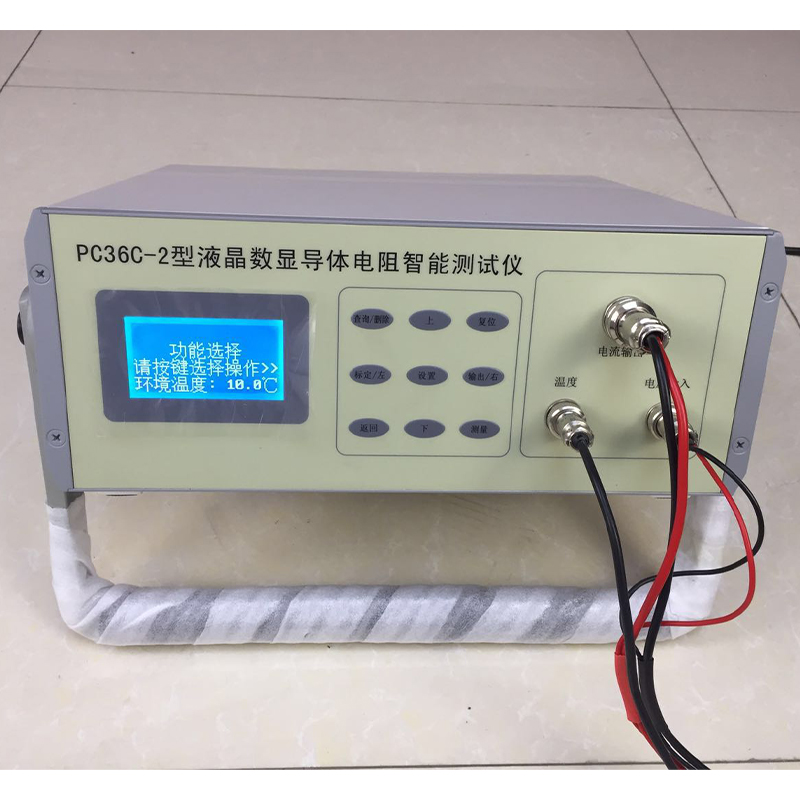

PC36C-2 LCD Digital Conductor Resistance Intelligent Test Instrument

PC36C-2 is a high-precision and intelligent integrated resistance measurement experiment combination device.It can measure DC resistance of wire and cable conductors, precision measurement of resistors, DC resistance measurement of motor transformer coils, and contact resistance measurement. It is mainly used in product quality inspection institutions, construction engineering inspection institutions, wire and cable / motor / transformer factory inspection laboratories.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

PC36C-2 can achieve temperature measurement with an accuracy of ± 0.1° C.

It also provides output from 0.001mA ~ 10A multi-level program-controlled constant current source, and the absolute accuracy of 0 ~ 2.5V is better than ± 0.02% of voltage measurement. The tester provides ten grades of self-calibration, which can be consistent with the standard value at any time to maintain the accuracy of the measurement results.Eliminate the worry that the traditional resistance test equipment can not be corrected due to the aging of the electronic components after a period of use.

PC36C-2 can achieve a wide range of resistance measurement from 0.01uΩ to 2.5MΩ with an accuracy of ± 0.05%. The resistance measurement uses a four-terminal measurement method to automatically eliminate the contact resistance error. Ten-level measurement gears Eight-level measurement current automatically converts the predicted amount, automatically selects the appropriate gear, automatically converts the temperature coefficient, and automatically saves the measurement results. 1mΩ ~ 1MΩ ten standard resistance self-calibration. When measuring, it is equivalent to hanging ten standard resistances at the same time and comparing the measurement results to ensure the accuracy of the measurement.
