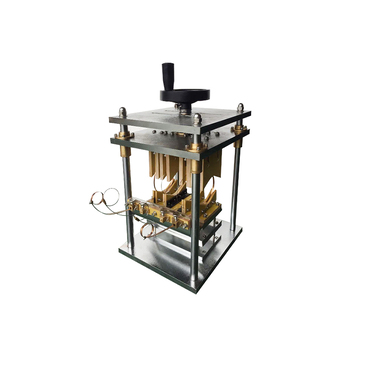

Semi-Conductive Shielding Layer Measuring Fixture

This fixture is designed and manufactured according to the IEC60502 (GB / T12706) standard. It is used with a semiconductor resistance tester to measure the resistivity of the semi-conductive shielding layer inside and outside the finished cable.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Features

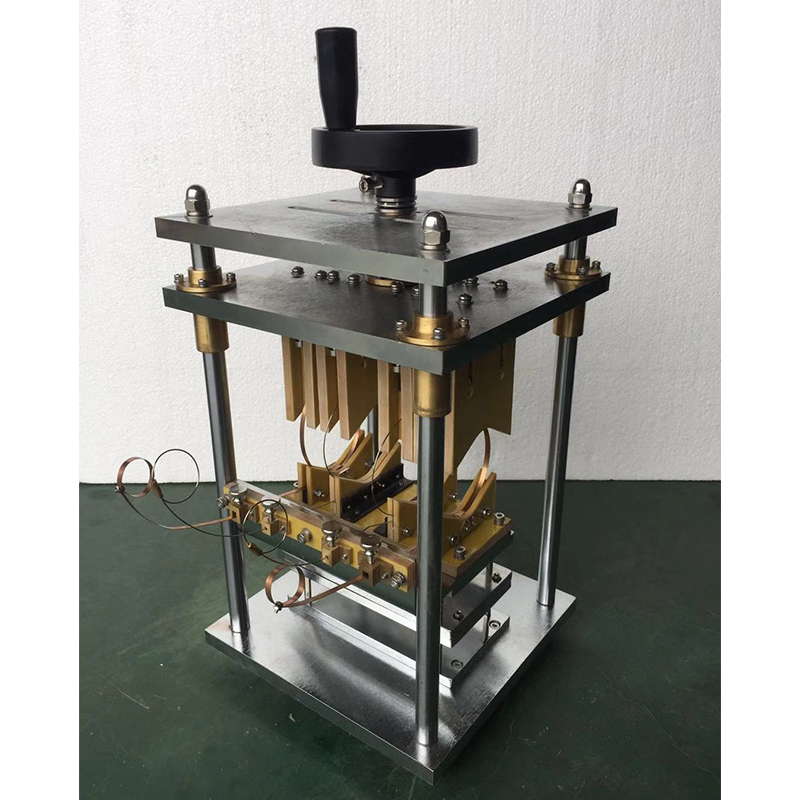

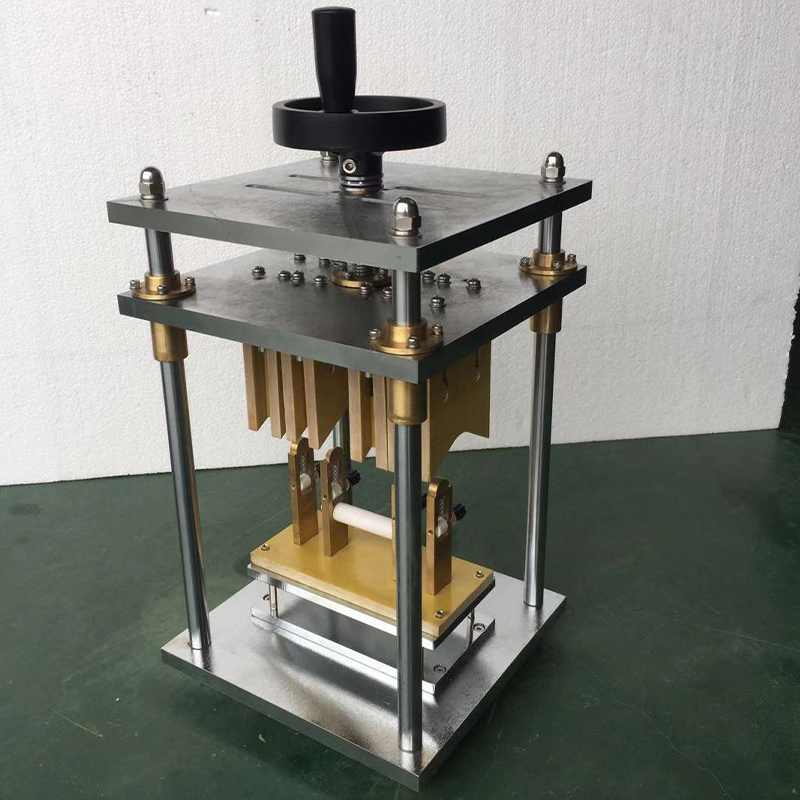

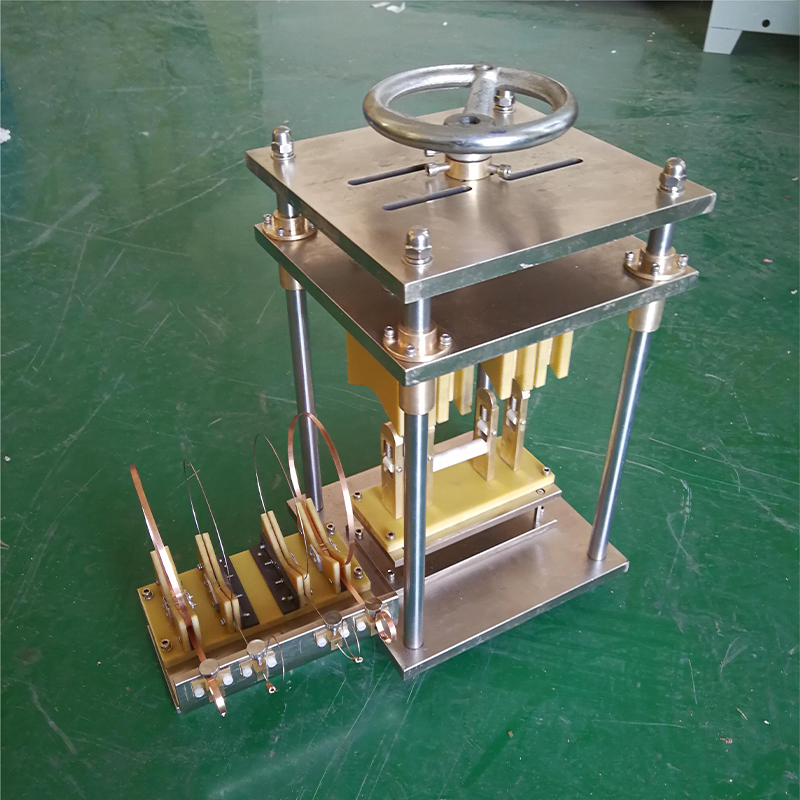

1. Four-column frame structure, stable movement, and uniform clamping.

2. Movable clamping trapezoidal screw pressure bearing, smooth and accurate rotation.

3. The clamping adopts a convex-concave structure, and a built-in elastic pressure tablet is used to balance the force.

4. Insulation resistance of insulation material>10¹²Ω.

5. Four-terminal wiring mode, accurate measurement.

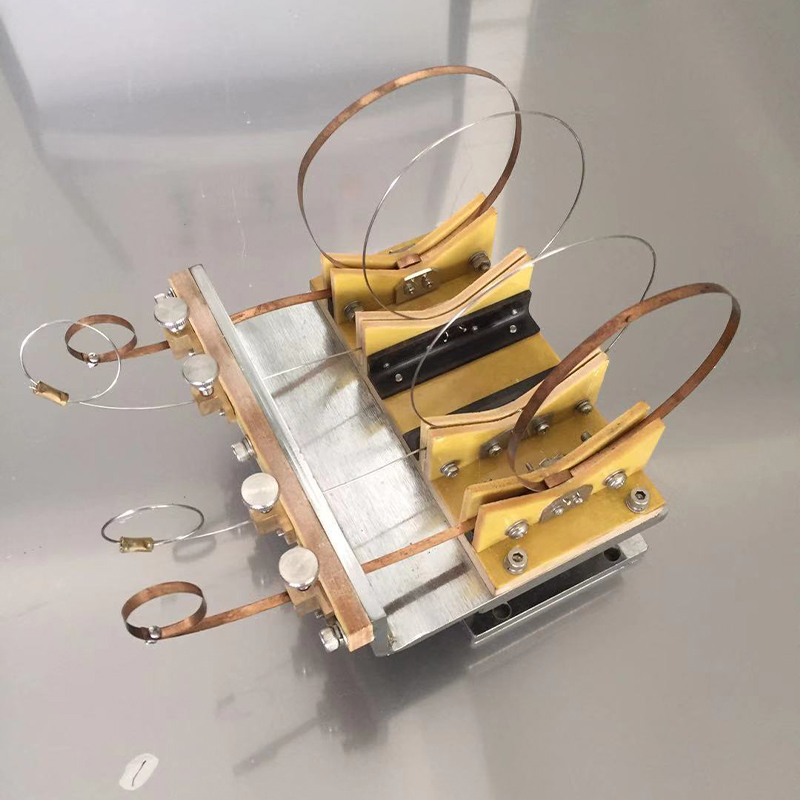

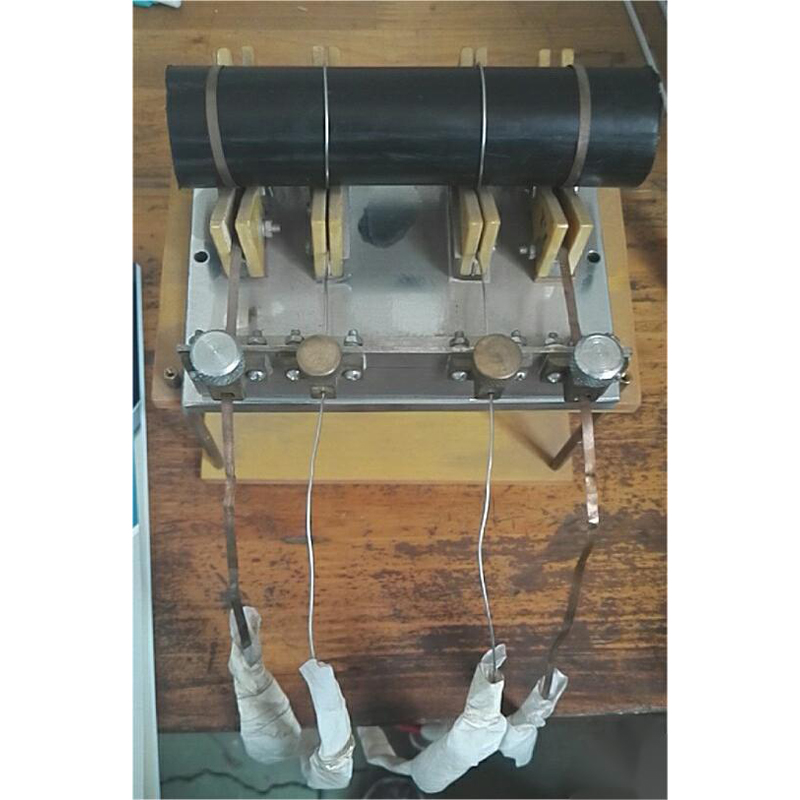

6. Bundled electrodes are used for the outer shield and semi-circular embedded electrodes are used for the inner shield.

Technical Parameter

1. Inner shield semi-circular embedded electrode diameter range: 14.6mm ~ 61.2mm

2. Number of inner shielded copper electrodes:13(each pair contains 2 potential and current electrodes).

3. Clamping range of external shield strapping electrode: Φ5 ~ Φ75mm

4. Potential electrode spacing: 50±0.2mm

5. Distance between the current electrode and potential electrode> 25mm

6. Fixture dimensions(mm): 200(L) x 200(W) x 440(H)

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.

Q: What’s the delivery term?

A: For our standard machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.
