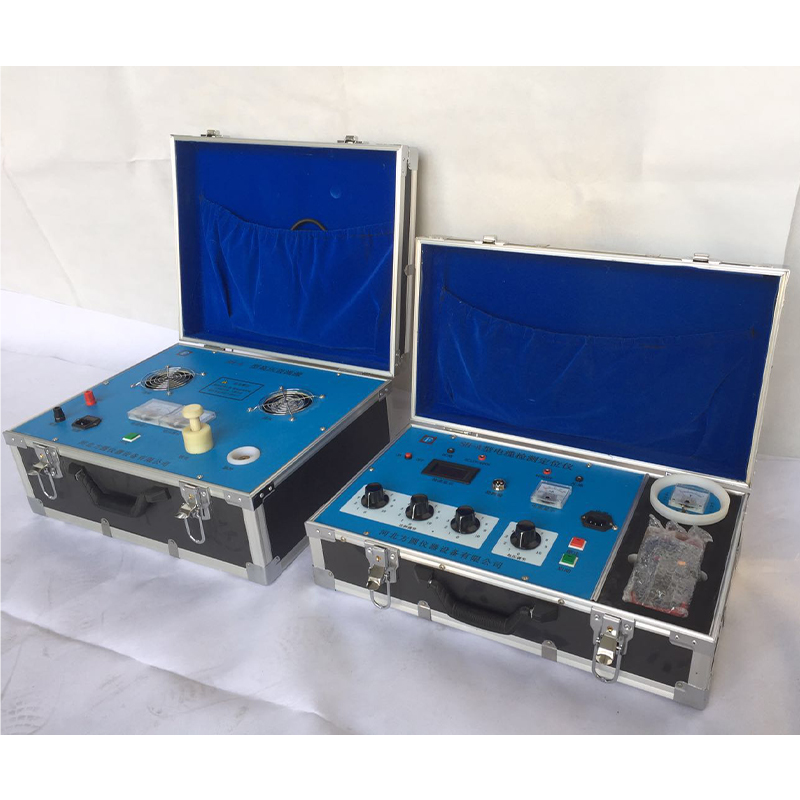

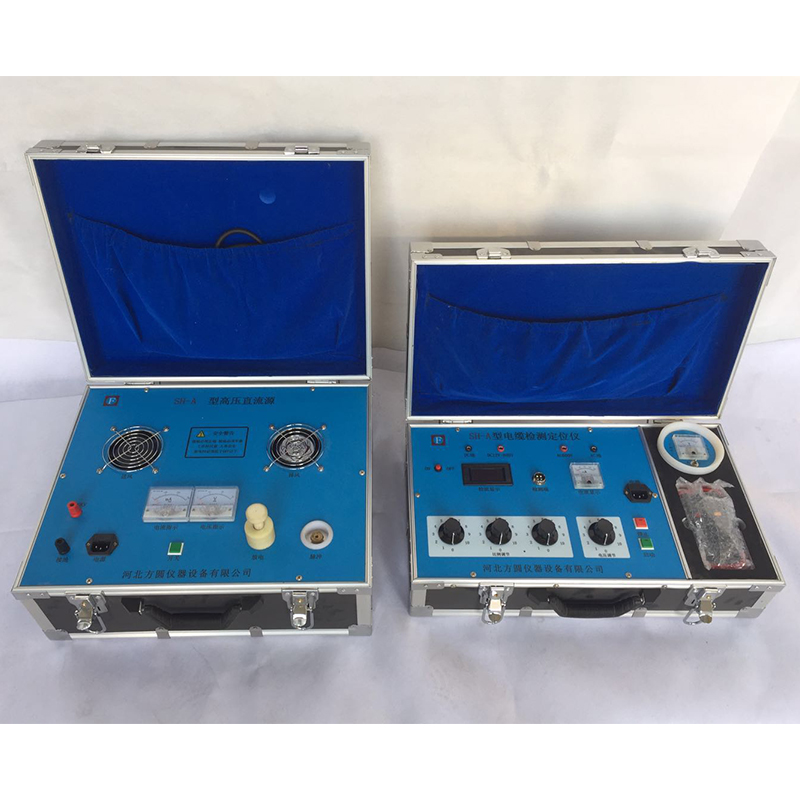

SH-A Cable Fault Test Instrument （Overground）

748ee045f3165939b33144edda8aaa2
  • 748ee045f3165939b33144edda8aaa2
  • 882b739cdb438341440ee4c2c63d89c
  • b1f074ba4c026cc6ea6eee0b92b8baf
  • ebf54a45985693f4f0a21e7e2788954
  • fdd1042e53f8d709e5359e16c5d169d

It is widely used in cable wire manufacture, mine, electric power department,major industry and power cable construction and maintain company.



Download as PDF
Product Detail
Product Tags

Scope of application



It is widely used in cable wire manufacture, mine, electric power department,major industry and power cable construction and maintain company.



Constitute and main usage



No.

constitute

main function

1

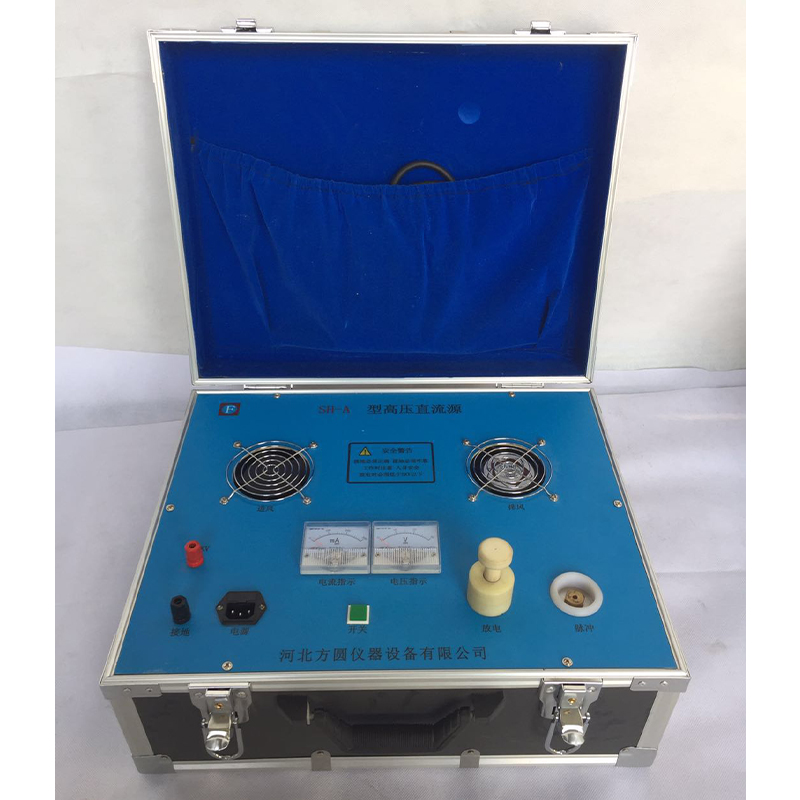

DC high-voltage power supply

Send high frequency signal,produce high direct voltage

2

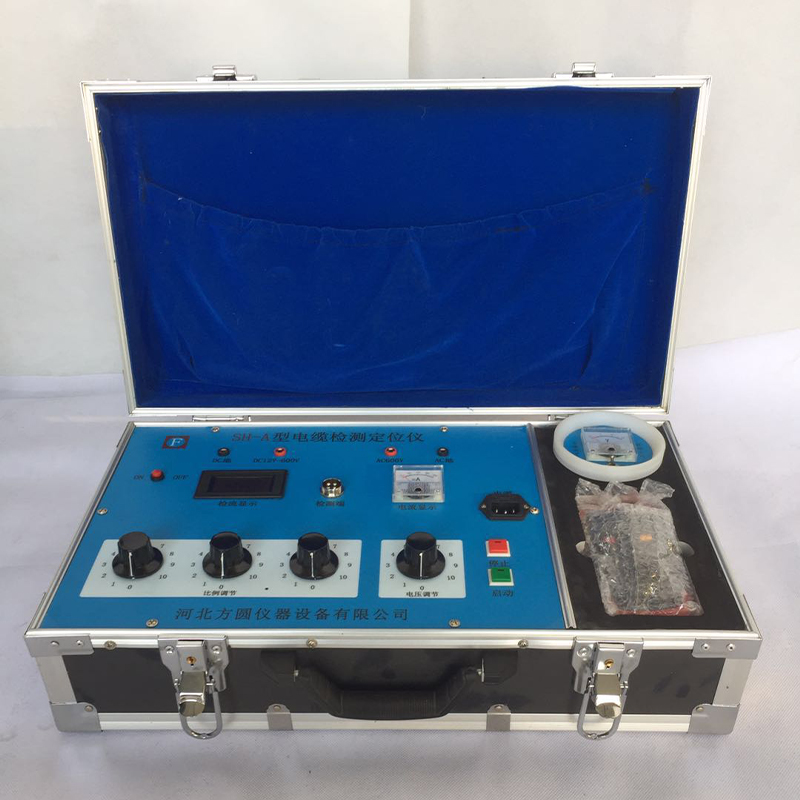

cable fault locator

Confirm puncture point,provide signal for accurate measurement of broken line.

3

Cable puncture point locator

Accurate positioning breakdown point

4

Cable broken line locator

Accurate positioning broken line point

Note： attached instruments:(1) one piece of DM6013 digital capacitance meter (2) one piece of digital megohm meter



Technical feature



1 Practical,easy to use, high fault measurement.

2 It have low requirements about the testing environment.It can accurate positioning without length measure test or the length is inaccuracy.

3 No requirements about the length, thick or thin, type and mark of the cable.

4 Coarse positioning accuracy:±2%
