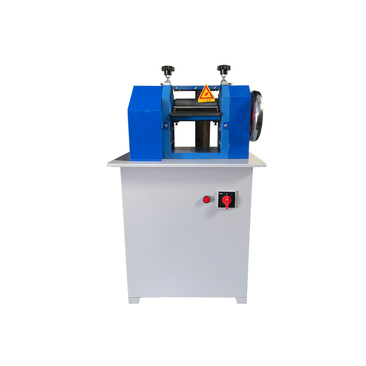

XP-19T Wire and Cable Chipping Machine

This machine is suitable for GB / T2951 / IEC60811 test standard requirements, and is an indispensable sample preparation equipment for wire and cable tests.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

This machine is suitable for GB / T2951 / IEC60811 test standard requirements, and is an indispensable sample preparation equipment for wire and cable tests.

Technical Parameter

1.Max working width: 190mm
2.Chipping speed: 0--16.7m/min
3.Upper press roller adjust range:15mm
4.Chipping accuracy: ≤ ± 0.10mm
5.Motor power: 1.5KW

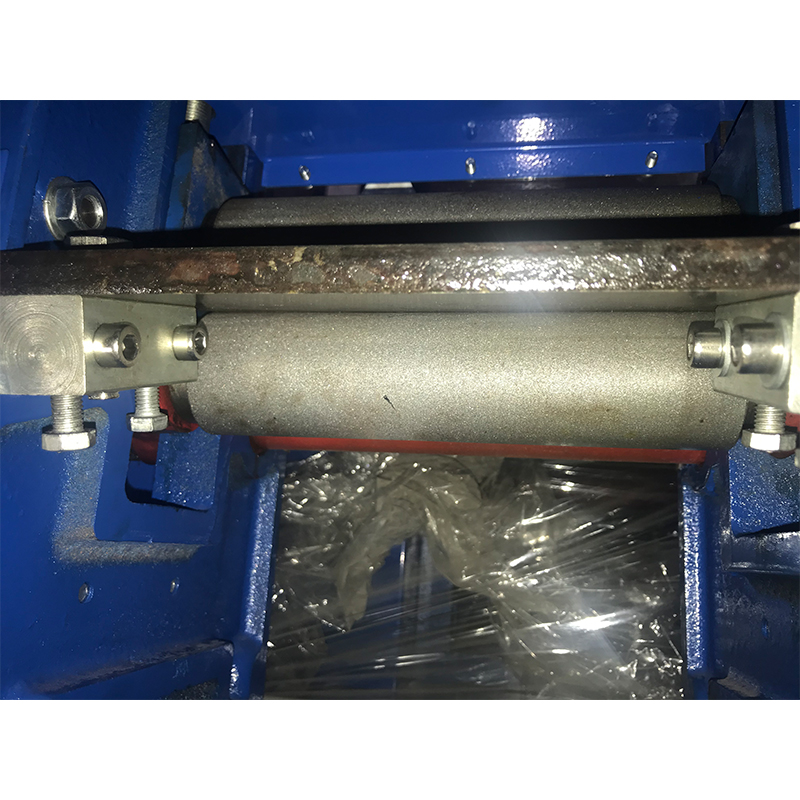

6.The upper and lower rollers are made of steel, with special friction treatment on the surface, and the hard materials such as overhead insulating sheath material and cross-linked polyethylene material ensure the chip is intact
7.Smooth operation and low noise
8.Cutter material: special tool steel, scalpel grade
9.Dimension(mm): 680(L) x 440(W) x 1030(H)

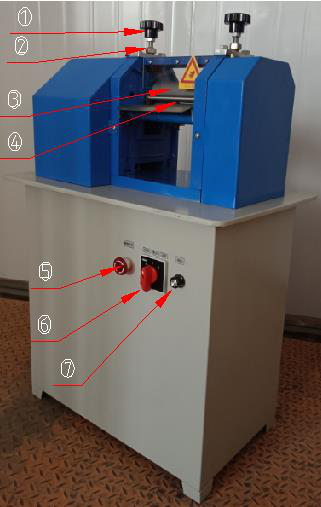

Structure

1.Adjustment handwheel
2.Lock nut
3.Upper pressure roller
4.Sample inlet
5.Emergency stoop switch(with light)
6.Forward and reverse switch
7.Seed control knob

Company Profile

Hebei Fangyuan Instrument Equipment Co., Ltd. was established in 2007 and is a high-tech enterprise specializing in R&D, production, sales and service of testing equipment.There are more than 50 employees, a professional R&D team composed of doctors and engineers and engineering technicians. We are mainly engaged in the development and production of testing equipment for wire and cable and raw materials, plastic packaging, fire products and other related industries. We produces more than 3,000 sets of various testing equipment annually.The products are now sold to dozens of countries such as the United States, Singapore, Denmark, Russia, Finland, India, Thailand and so on.

RFQ

Q: Do you accept customization service?

A: Yes.We can not only offer standard machines, but also non-standard customized testing machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

Q: What's the Packaging?

A: Usually, the machines are packed by wooden case. For small machines and components, are packed by carton.

Q: What’s the delivery term?

A: For our standard machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.
