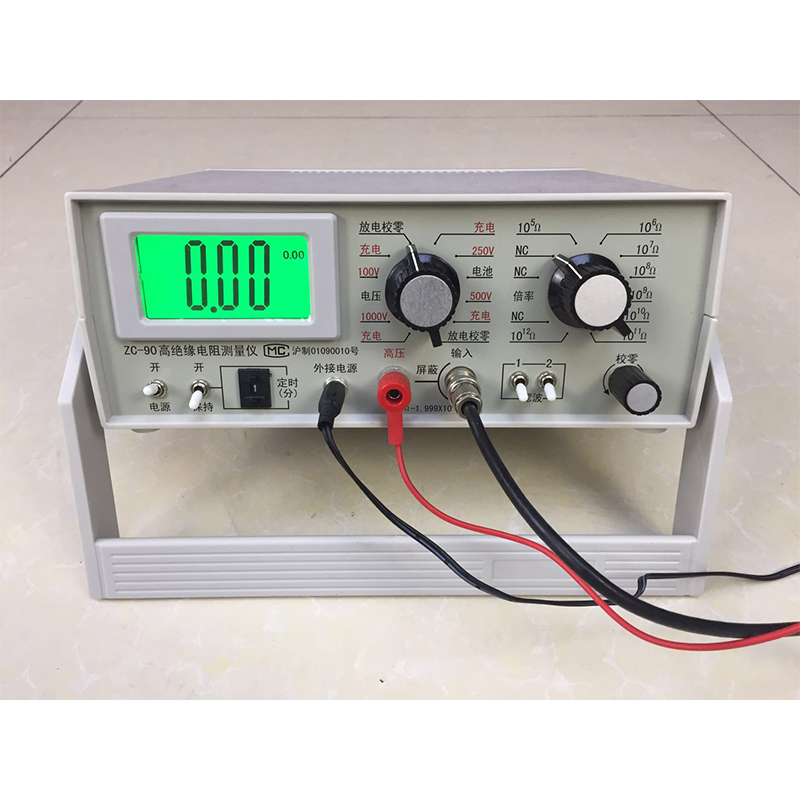

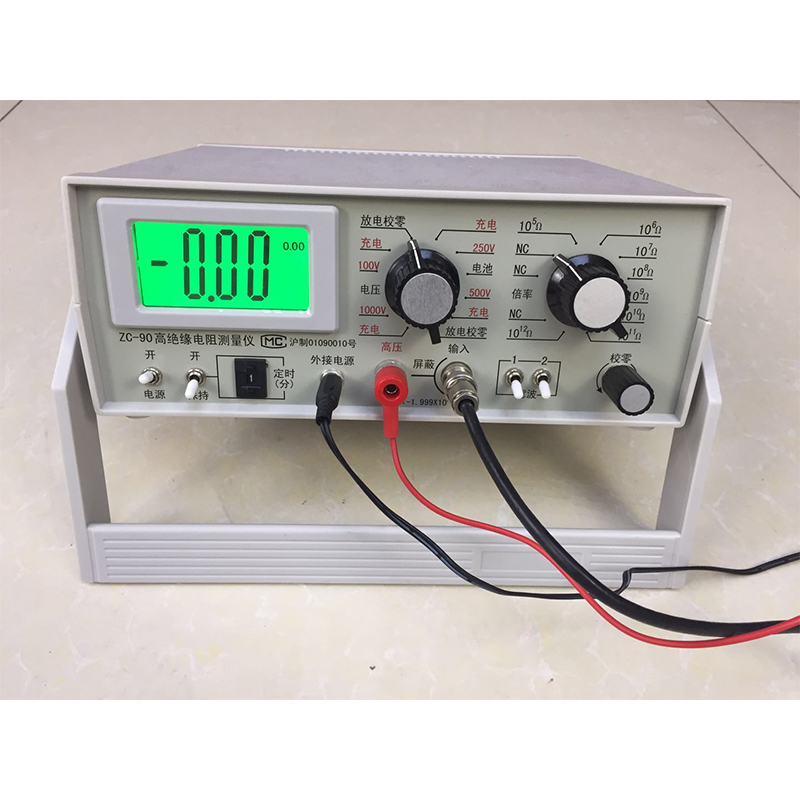

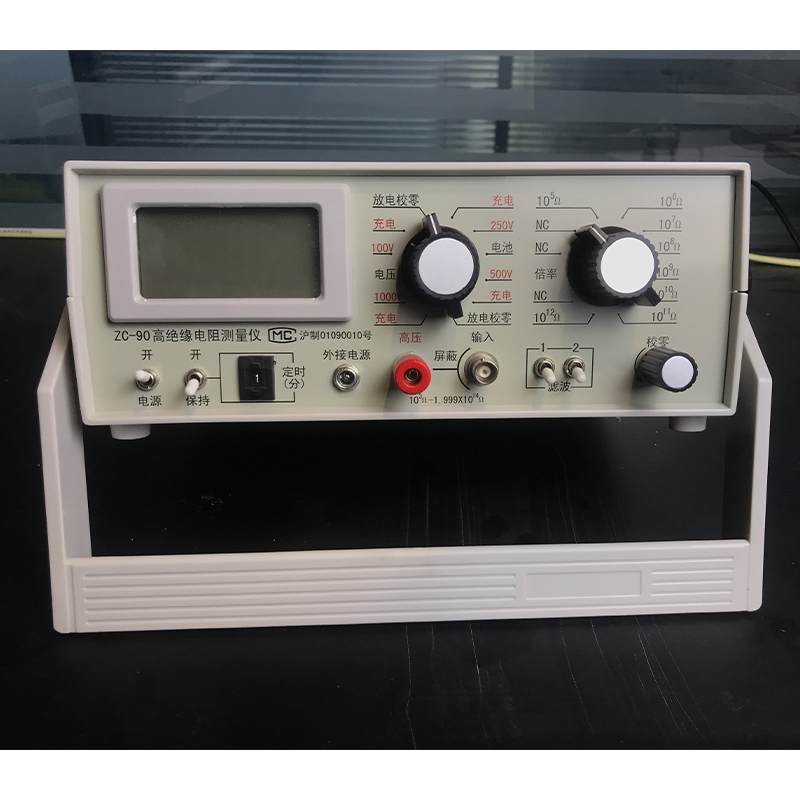

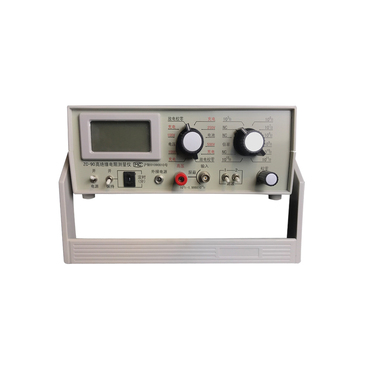

ZC-90 Series High Insulation Resistance Tester

Product Detail

Product Tags

Product Description

Series insulation resistance tester is an ideal instrument for testing electrical insulation materials; wire and cable; antistatic engineering resistance measurement and other electrical products' insulation resistance. This instrument uses the most advanced ultra-high resistance, micro current device in the world. It has the advantages of high measurement accuracy, strong resolution, strong anti-interference ability, good reading stability, small size, easy to use, and strong battery versatility.

Technical Parameter

Model	ZC-90	ZC-90E
Rated voltage(V)	100,250,500,1000
Measuring range(Ω)	10⁵ ~ 2 x 10¹⁴	10⁵ ~ 2 x 10¹⁶
Basic error	± (1% of reading + 2 words) R_x≤10⁷Ω ± (3% of reading + 2 words) 10¹⁰Ω≥R_x≤10⁷Ω ± (5% of reading + 2 words) 10¹²Ω≥R_x≤10¹⁰Ω ± (10% of reading + 2 words) 10¹⁴Ω≥R_x> 10¹²Ω ± (20% of reading + 10 words)> 10¹⁴Ω
Measurement timing time	1min ~ 7min
Power supply	1.2V (rechargeable battery) x 8 or 1.5V (ordinary battery) x 8
Operating environment	0 ~ 40 ℃ 85% RH (25 ℃)
Volume(mm)	270(L) × 250(W) × 100(H)
Weight	2kg

Model	ZC-90G
Rated voltage(V)	10,25,50,100, 250, 500, 1000
Resistance range(Ω)	0 ~ 2 x 10¹⁷
Highest resolution(Ω)	100
Current range(Ω)	0.1fA(10^-16) ~ 199.9μA
Use	Ultra-high insulation resistance measurement, ordinary wire and cable and cross-linked polyethylene cable measurement, insulation material resistivity measurement. Weak current measurement, electronic component measurement, photoelectric measurement, bioelectricity measurement, atomic energy research, etc.
